Heavy-Duty Engine Maintenance: A Comprehensive Guide to Cylinder Block and Head Repair
Table of Contents
For heavy-duty machinery like excavators, mining trucks, and haulers powered by CUMMINS, CAT, or Volvo engines, the cylinder block and cylinder head are the core structural components. Operating under high pressure and temperature, these parts are prone to wear, cracks, and deformation. As a leading supplier of LIUCHUANG brand engine parts, we understand that professional maintenance is key to extending engine life and preventing costly downtime.

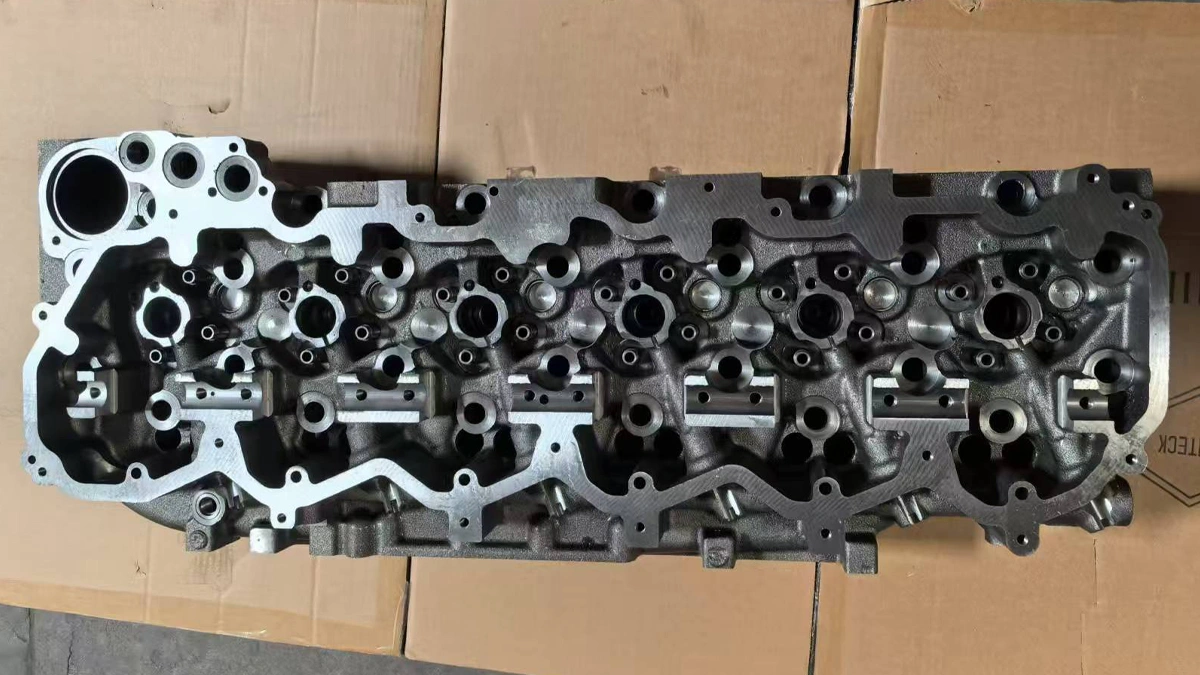

1. Common Issues with Cylinder Heads and Blocks
The cylinder head acts as a “seal” for the combustion chamber. Over time, several critical issues can arise:
- Cracking: Usually occurs between valve seats or near coolant passages due to thermal stress.
- Deformation: High-temperature operation can cause the mating surface of the cylinder head to warp, leading to head gasket failure.
- Corrosion: Poor quality coolant can lead to pitting in the water jackets.
2. Professional Inspection Techniques
To ensure the reliability of your engine, especially when replacing injectors or high-pressure fuel pumps, a thorough inspection of the block is mandatory.
A. Surface Flatness Check
Using a precision straightedge and feeler gauges, technicians must measure the flatness of the cylinder head’s bottom surface.
Technical Standard: For most heavy-duty engines, the longitudinal flatness error should not exceed 0.15mm, and the transverse error should stay under 0.05mm.
B. Crack Detection (NDT)
- Hydraulic Testing: Pressurizing the water jacket (0.3–0.4 MPa) to check for leaks.
- Magnetic Particle Inspection: Used for detecting microscopic surface cracks in cast iron blocks.
- Dye Penetrant Testing: Ideal for aluminum alloy cylinder heads common in newer models.
| Inspection Item | Standard Limit (Heavy Duty) | Required Tools |
|---|---|---|
| Longitudinal Flatness | ≤ 0.15 mm | Precision Straightedge |
| Transverse Flatness | ≤ 0.05 mm | Feeler Gauge |
| Hydraulic Testing Pressure | 0.3 – 0.4 MPa | Cylinder Tester Kit |
| Surface Roughness | 3.2 – 6.3 μm | Roughness Tester |
*Note: Technical standards may vary by specific engine models (CAT, CUMMINS, Volvo). Always refer to the original service manual.
3. Repairing the Cylinder Head and Block
Depending on the severity of the damage, several repair methods are utilized:
| Method | Application |
|---|---|
| Mechanical Grinding | Correcting warping on mating surfaces. |
| Welding & Stitching | Repairing non-critical cracks in cast iron. |
| Sleeve Replacement | Restoring factory dimensions for worn bores. |
4. The Role of Precision Electronics in Diagnostics

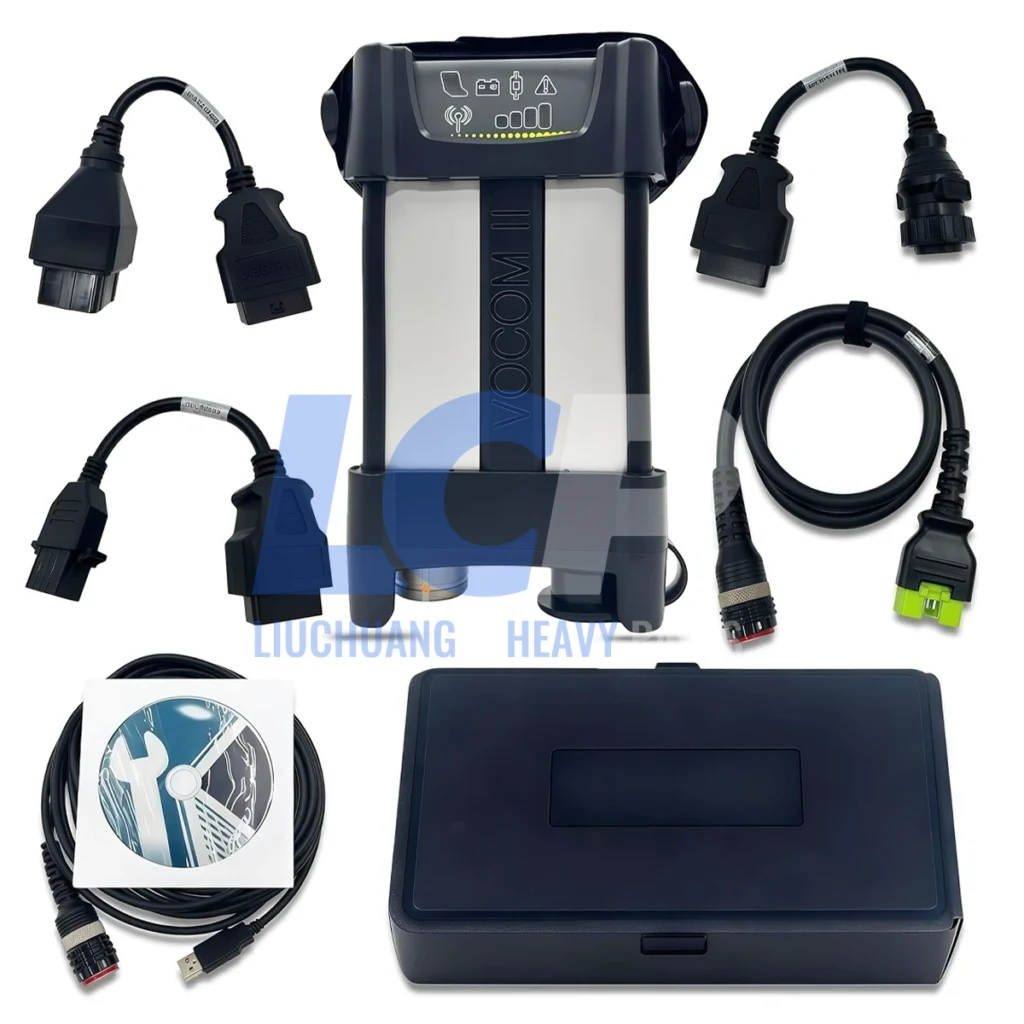

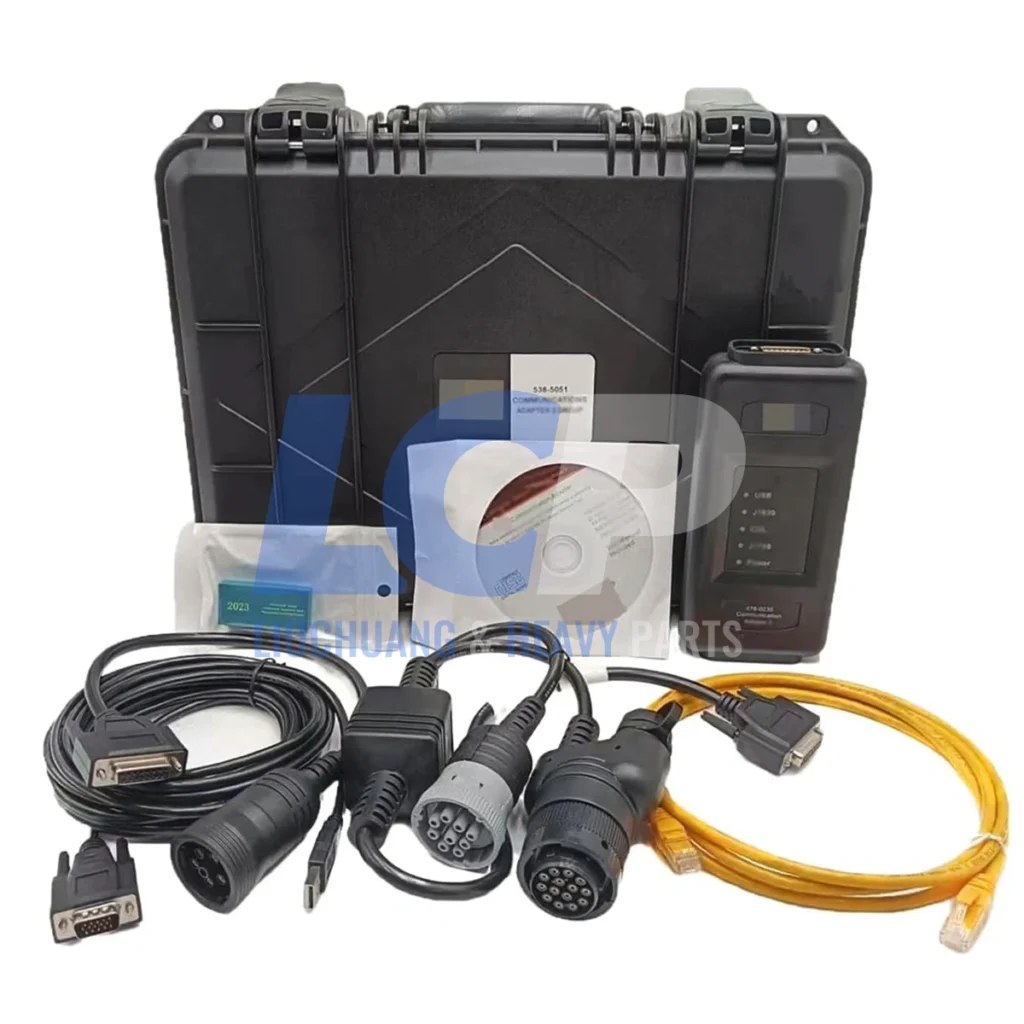

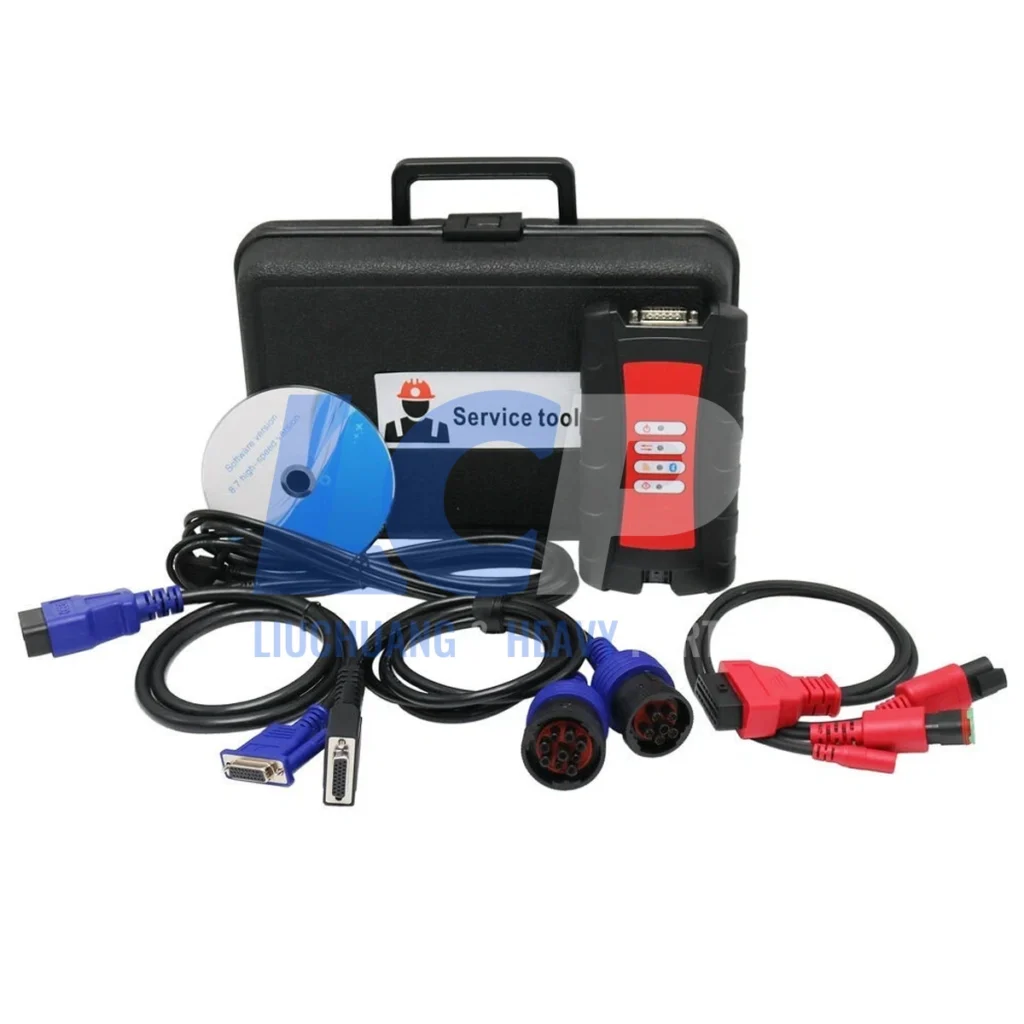

Modern repair isn’t just about hardware. For ECM/ECU controlled engines like the CUMMINS ISX or CAT C15, structural repairs must be followed by electronic calibration using tools like CAT ET4, Inline 7, or Volvo Vocom II:
- Reset fuel trim codes after replacing fuel injectors.
- Monitor real-time cylinder pressure via the ECM.
- Validate wiring harness voltage for sensor accuracy.
Conclusion
Maintaining the “heart” of your heavy equipment requires both mechanical precision and advanced electronic diagnostics. At LIUCHUANG, we provide high-quality replacement parts, from cylinder heads to ECM monitors.
Looking for reliable engine parts? Explore our catalog at www.liuchuangparts.com or contact our technical team for expert advice.
