The Ultimate Guide: How to Choose Caterpillar ECM 216-0658
If you operate Caterpillar heavy equipment, you know that the Engine Control Module (ECM) is the brain of your machine. When an ECM fails, your entire operation stops. Replacing it can be a daunting task, with costs often exceeding $1,500 and the risk of ordering an incompatible part.
At LIUCHUANG parts, we specialize in CAT engine electronics. In this guide, we will show you exactly how to identify, select, and install the right ECM for your Caterpillar engine to get your machine back to work fast.
Never order an ECM based on “it looks the same.” Caterpillar uses similar-looking aluminum housings for very different internal hardware. To get it right, you need these three pieces of information:

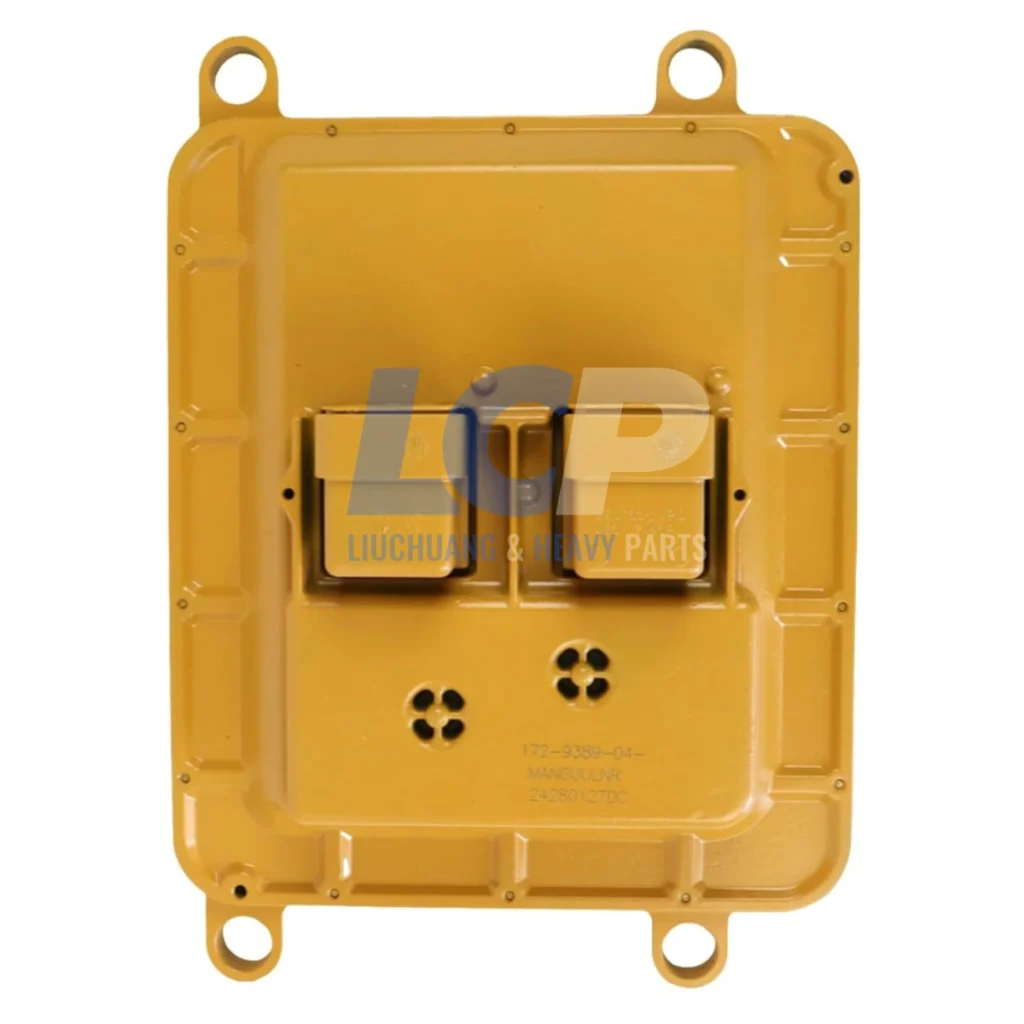

The Original Part Number (P/N): Look for the sticker on your old ECM. Common CAT ECM part numbers include 216-0658, 172-9389, or 10R-series (10R-5613, 10R-4332) reman numbers.
Engine Serial Number (ESN): This is usually an 8-character code (e.g., S6F01234). The ESN tells us exactly which software “flash file” your engine requires.
Machine Model & Engine Prefix: Knowing if it’s a C7, C9, C12, or C15 engine is the first step in narrowing down the hardware generation (e.g., ADEM A3 vs. ADEM A4).
2. Genuine OEM vs. High-Quality Aftermarket
When buying a replacement, you have two main choices:
Option
Pros/Cons
Genuine CAT
Highest reliability but extremely expensive with long lead times from dealers.
LIUCHUANG Aftermarket
High-grade components, cost-effective, durable for harsh environments.
Pro Tip: Always check the connector pins. A bent or corroded pin on your wiring harness can fry your brand-new ECM instantly.
3. The “Plug-and-Play” Advantage: Programming Service
A “blank” ECM from a box will not start your engine. It needs to be “flashed” with specific Caterpillar software. At LIUCHUANG parts, we offer a professional Programming Service.
You provide your ESN or Old ECM Data.
Our technicians flash the correct software version before shipping.
You receive a unit that is Plug-and-Play—no expensive dealer trip required.
4. Common Symptoms of a Failing CAT ECM
If your machine is showing these signs, it’s time for a diagnostic:
Intermittent Misfiring
The ECM may be failing to send signals to the fuel injectors.
No Communication
Diagnostic tools (like CAT ET) cannot connect to the engine.
No Start Condition
Engine cranks but the ECM is not triggering the fuel system.
