216-0658 10R-5613 ECM Engine Control Module Pre-Programmed for CAT 420D 226B 246B 277B

216-0658 / 10R-5613 ECM engine control module for Caterpillar skid steer and backhoe loaders.

  • Interchangeability: Replaces part numbers 216-0658 (2160658) and 10R-5613 (10R5613).
  • Application: Fits for 420D to 442D backhoe loaders, 247B and 257B multi terrain loaders, and 216 to 287B skid steer loaders.
  • Pre-Programmed: Supplied with Software Group 284-3058 loaded, ready to install on arrival.
  • Check Your Variant: Match 216-0658 or 10R-5613 on your current ECM label; send a photo if you are unsure.

$950.00

Free Express Shipping — DHL / FedEx / UPS · 3–8 business days
Dispatched in 1–3 business days · Tracking within 24–48 hours
  • Bench-Tested - Every unit powered up and function-tested before dispatch.
  • 6-Month Warranty - From delivery, against defects in materials and workmanship.
  • 30-Day Returns - Unused items in original packaging. RMA required.
Payment Methods:
PayPal Visa and Mastercard accepted

Product Details

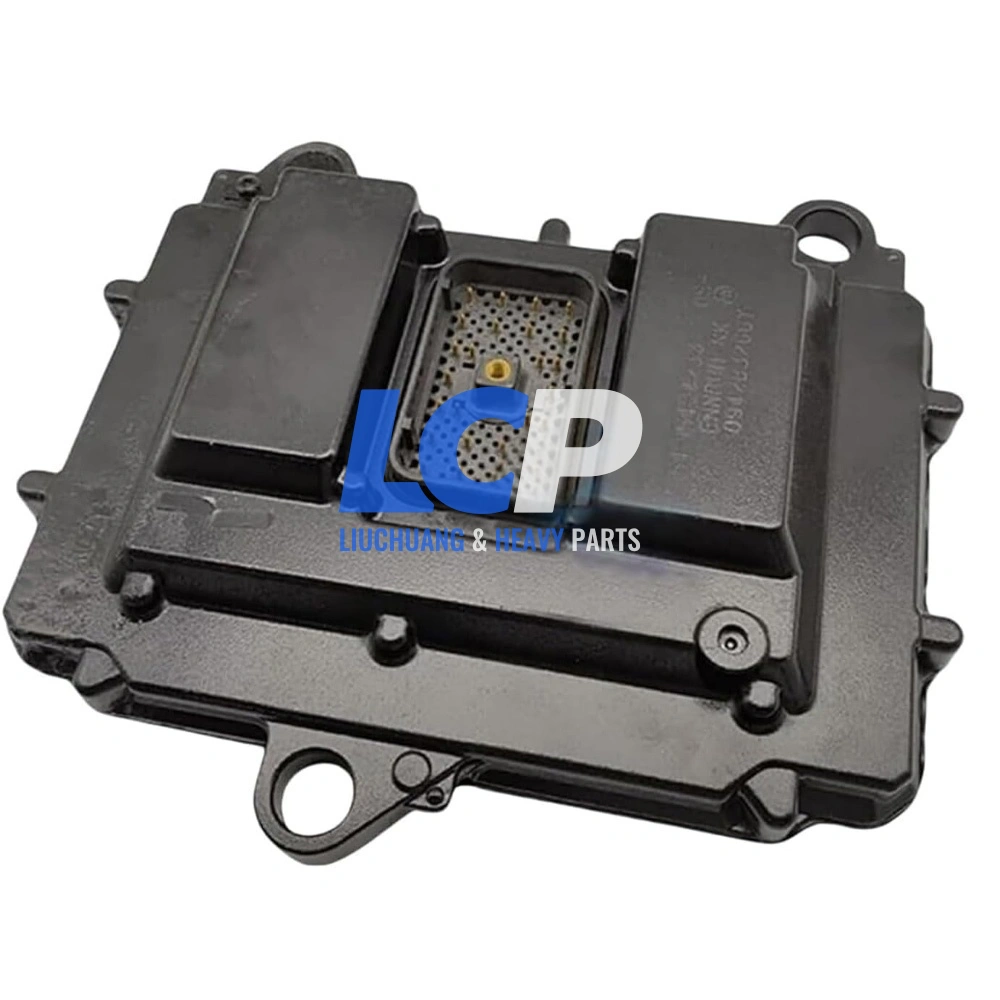

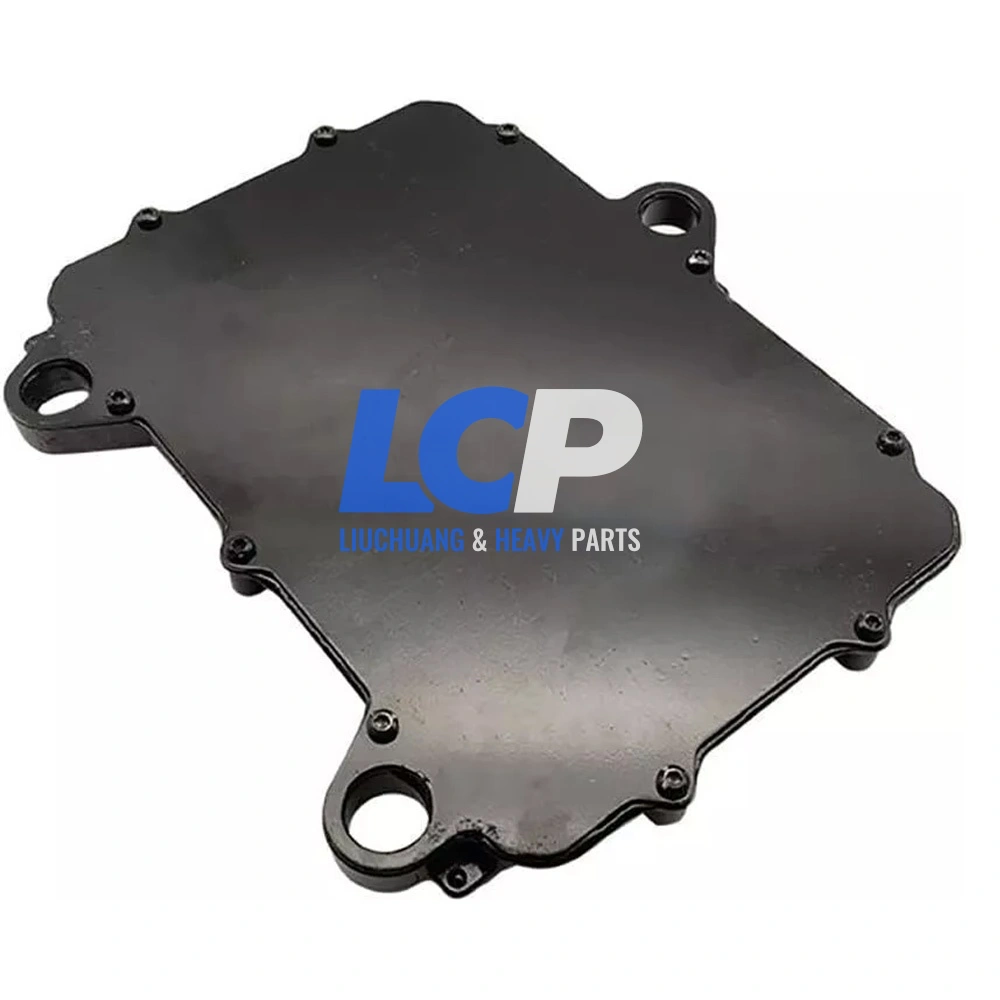

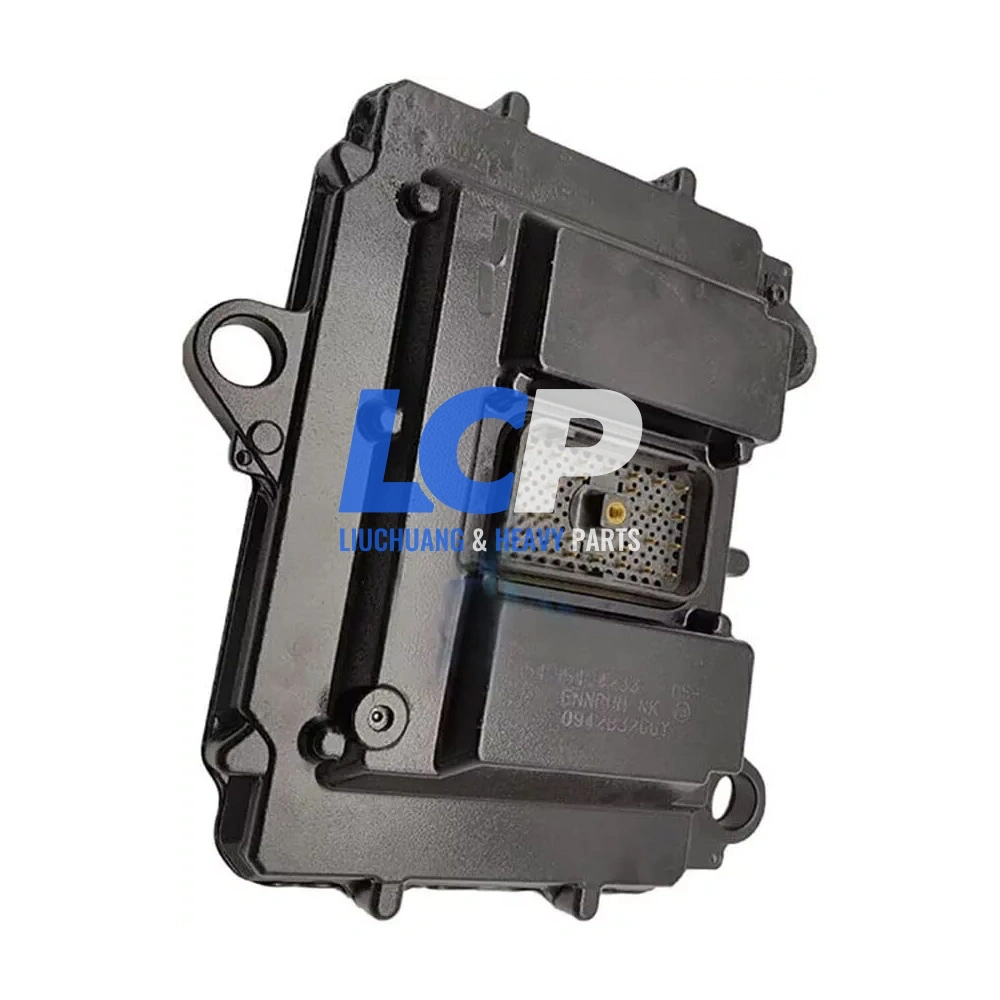

This remanufactured Engine Control Module (ECM / ECU) is an aftermarket replacement for Caterpillar part numbers 216-0658 ECM (2160658) and 10R-5613 (10R5613), used on 420D to 442D backhoe loaders, 247B and 257B multi terrain loaders and 216 to 287B skid steer loaders.

Each unit is disassembled, cleaned and inspected. Worn or failed electronic components are replaced, the connector pins are checked for corrosion and fit, and the module is bench-tested under power to confirm it restores factory-specified operating parameters before it leaves our facility.

  • Reference Numbers: 216-0658 / 2160658 / 10R-5613 / 10R5613
  • Machines: For Caterpillar backhoe loaders, multi terrain loaders and skid steer loaders (see Fitment)
  • Condition: Remanufactured, not new
  • Installation: Direct replacement; mounts and plugs in like the unit being removed
  • Software: Pre-programmed with Software Group 284-3058
  • Testing: Every unit powered up and function-tested before dispatch
  • Warranty: 6 months from delivery, with repair or replacement for defects in materials and workmanship

Pre-Programmed — Ready to Install on Arrival

This module is supplied already loaded with Software Group 284-3058, so it can be installed as soon as it arrives with no separate flashing step. Our 1–3 business day dispatch window starts from your order. Before you order, match 216-0658 or 10R-5613 on the label of the ECM you are replacing; if you are unsure, send us a photo of the label and your machine model and we will confirm.

Installation Notes: Installation and removal by an experienced heavy-equipment technician is strongly recommended. Disconnect the battery before unplugging or connecting the ECM, check the harness connectors for bent pins or moisture, and clear any stored fault codes with your service tool after installation.

Fitment & OEM Interchange

OEM part numbers are listed for cross-reference only. They do not imply that this part was made by the equipment manufacturer. All brand names are used solely to identify compatibility.

Primary Part No. Without Dash Cross-Reference Part No. Compatible Machines
216-0658 2160658 10R-5613 / 10R5613 For Caterpillar backhoe, multi terrain and skid steer loaders

Application Chart — Compatible with Caterpillar Equipment

Equipment Type Models
Backhoe Loader 420D, 430D, 432D, 442D
Multi Terrain Loader 247B, 257B
Skid Steer Loader 216, 216B, 226, 226B, 228, 232, 232B, 236, 236B, 242, 242B, 246, 246B, 247, 247B, 248, 248B, 252, 252B, 257, 257B, 262, 262B, 267, 267B, 268B, 277, 277B, 287, 287B

Confirm Before You Order: Check that your current ECM label shows 216-0658, 2160658, 10R-5613 or 10R5613, and note your machine model and serial number. If you are not sure, send us a photo of the label and we will confirm compatibility before you buy.

Technical Specifications

Part Name Engine Control Module (ECM / ECU Controller)
Reference Numbers 216-0658, 2160658, 10R-5613, 10R5613
Condition Remanufactured
Installation Method Direct replacement
Programming Pre-programmed, Software Group 284-3058; ready to install on arrival
System Voltage Application dependent, confirm on data plate
Housing Material Application dependent, confirm on data plate
Connectors Same layout as the 216-0658 unit being replaced; compare with your current ECM
Circuit Protection Application dependent, confirm on data plate
Testing Bench-tested: powered up and function-tested before dispatch
Warranty 6 months from delivery against defects in materials and workmanship (repair or replacement)
Package Contents 1 × Engine Control Module (pre-programmed)

This module is intended to restore factory-specified performance only. It does not alter, disable or remove any emission control function.

Common Failure Symptoms

Symptom What It Usually Points To
Skid steer or backhoe cranks but will not start, with good fuel and a charged battery ECM not driving the fuel system, no power or ground reaching the ECM, or a failed module
Service tool cannot connect to or read the ECM Data link fault, no supply or ground at the ECM, or an internal ECM failure
Engine stalls at random while digging, lifting or travelling Intermittent internal ECM fault, or a loose connector or ground strap
Engine hunts or idles rough with no sensor fault code ECM logic fault, or a damaged harness section
Many unrelated fault codes appear after jump-starting or welding on the machine Voltage spike that may have damaged the ECM
Machine stays in derate or low power with no fault found at the sensors ECM logic or software fault
Engine runs, then will not restart once it is hot Heat-related failure of an internal ECM component
Green or white corrosion on the ECM connector pins Water intrusion that may have damaged the circuit board

Check the Simple Causes First: Before replacing the ECM, test battery voltage, clean and tighten the ground straps, and inspect the harness and connectors for damage or moisture. These cheaper faults cause many of the same symptoms.

Shipping & Quality Guarantee

  • Bench-Tested: Every unit is powered up and function-tested before dispatch.
  • Fast Dispatch: Dispatched in 1–3 business days.
  • Free Express Shipping: Delivered in 3–8 business days by DHL, FedEx or UPS.
  • Tracking: Tracking number provided within 24–48 hours of dispatch.
  • Protective Packaging: Anti-static bag and padded carton.
  • 6-Month Warranty: From delivery, against defects in materials and workmanship.
  • 30-Day Returns: Unused items in original packaging; an RMA number is required.
  • Technical Support: Send photos of your ECM label and machine data plate and our team will help confirm fitment.

Shipping & Customs Notice

Our price covers the product and shipping only. Import duties, VAT, GST and any other local taxes or customs clearance fees are not included and are the buyer’s responsibility.

All trademarks and part numbers are used for compatibility reference only. LIUCHUANG Parts is an independent aftermarket parts supplier and has no official or authorized relationship with any equipment manufacturer.
