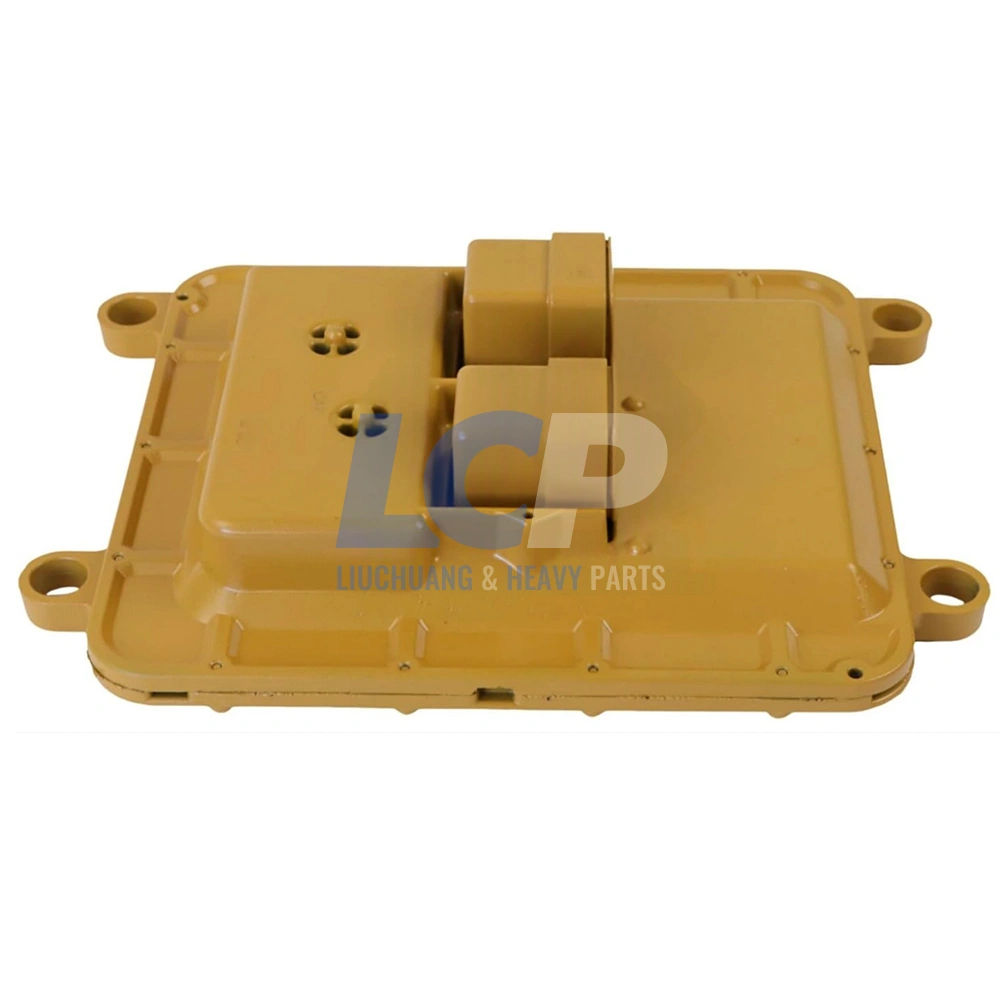

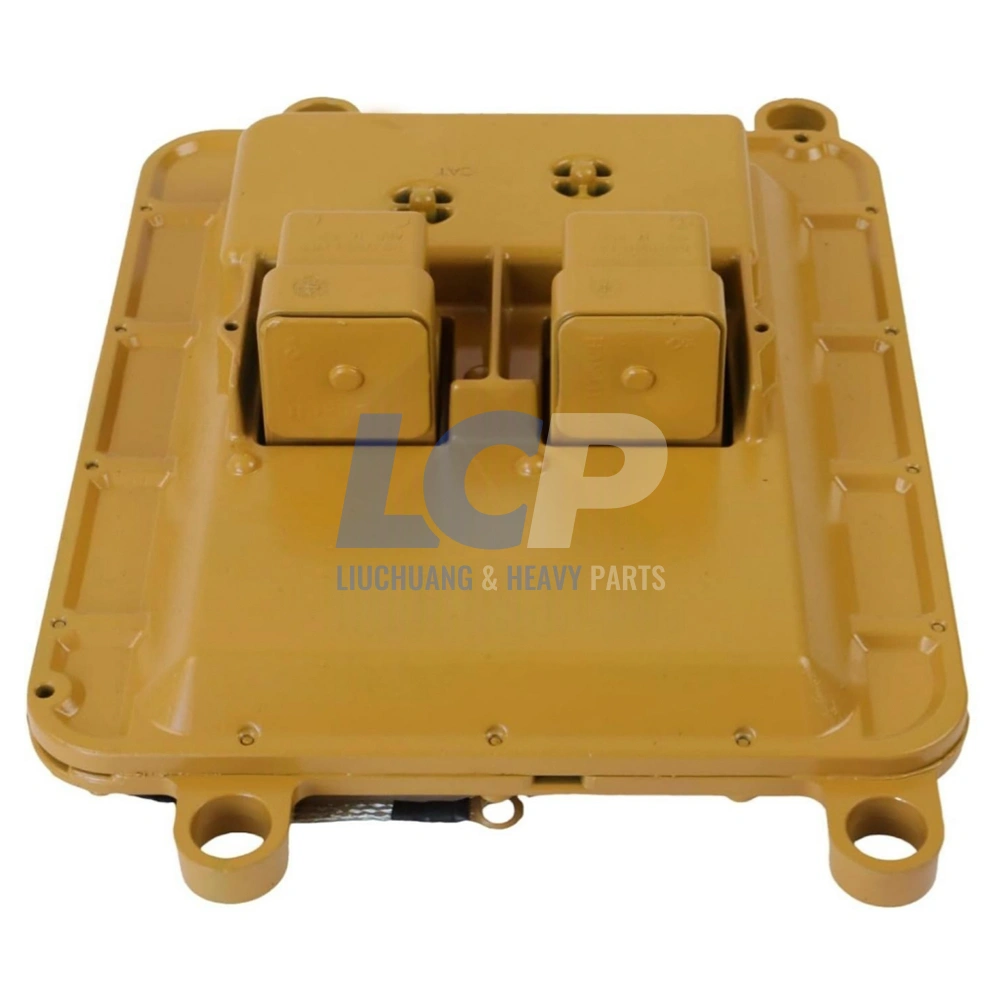

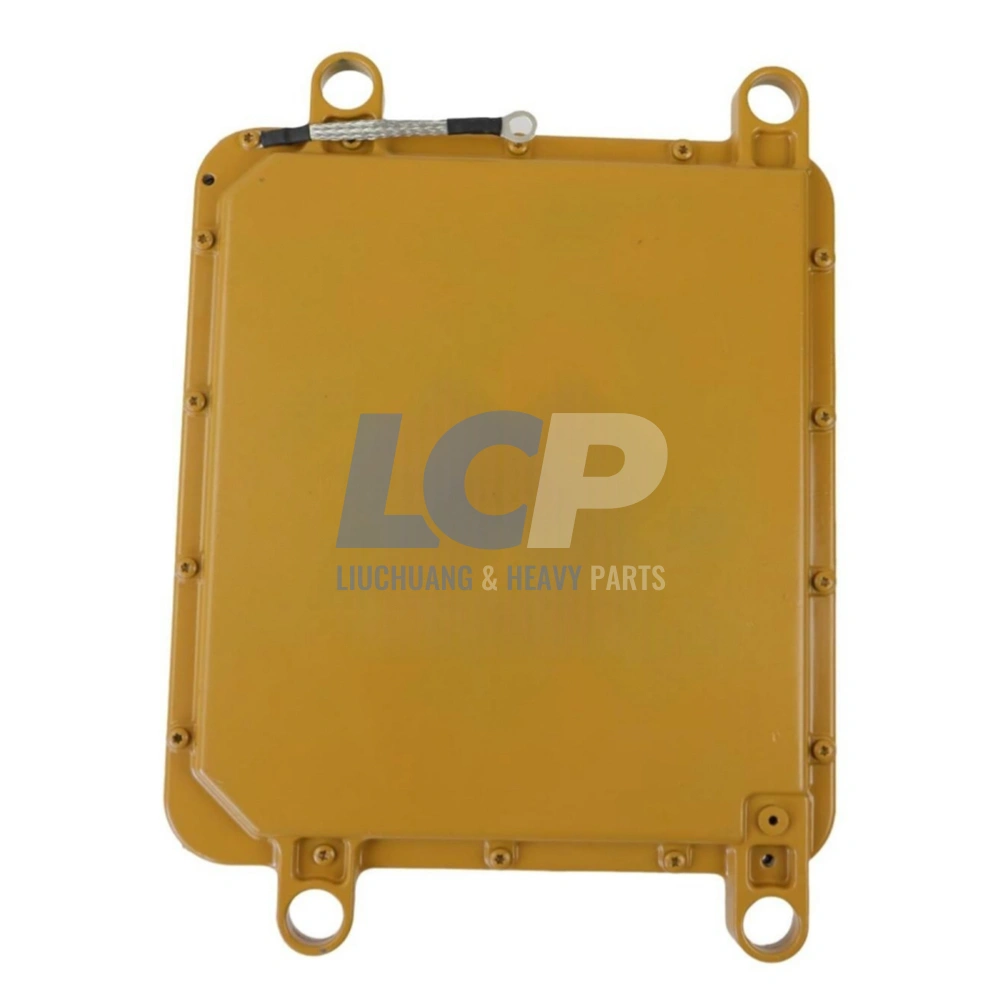

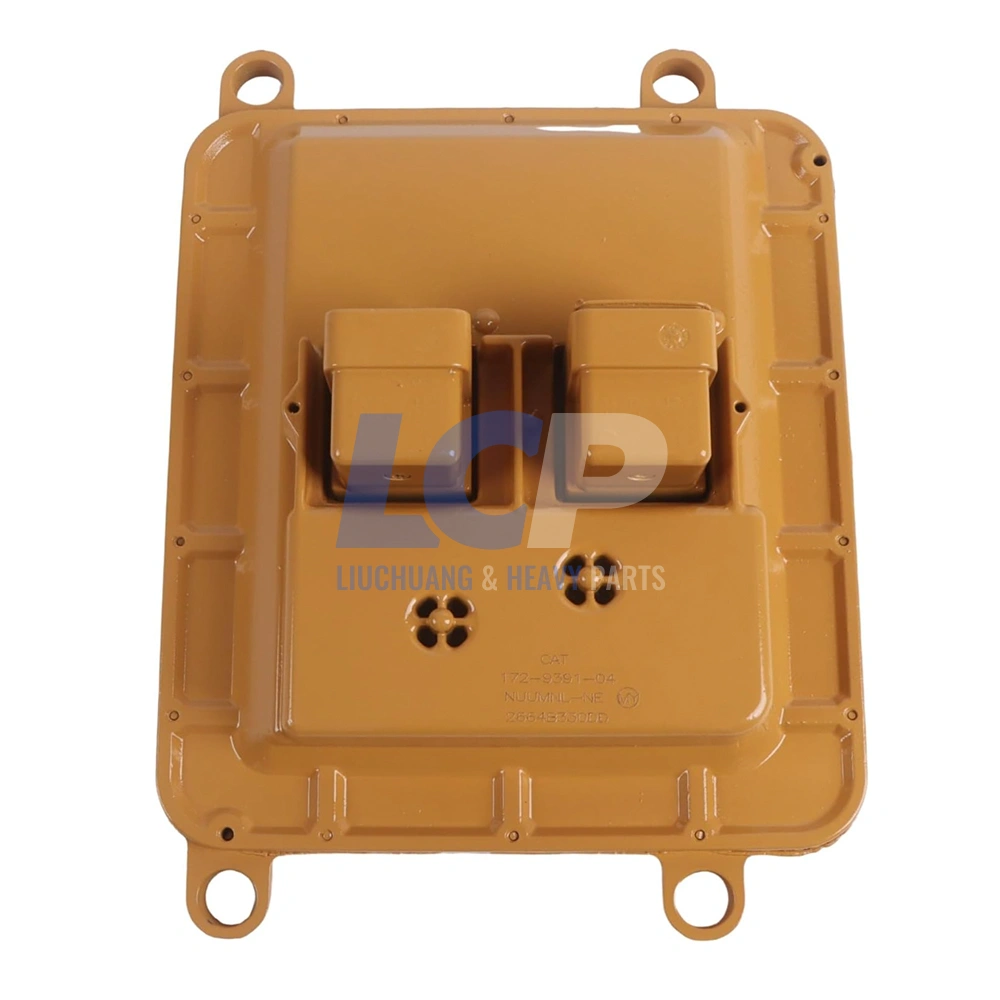

172-9391 10R-4331 Machine ECM Control Module Pre-Programmed for CAT 950G 980G D6N
172-9391 / 10R-4331 machine ECM control module for Caterpillar 950G, 980G and D6N.
- Interchangeability: Replaces 172-9391 (1729391) / 10R-4331 (10R4331).
- Application: Fits for 938G–992G wheel loaders, 769D–793C trucks, 143H / 163H motor graders, D5N / D6N tractors, 824G–836H wheel dozers and 825G–826H compactors.
- Check Your Part Number: Your ECM label should show one of the numbers above; if not, send us a photo first.
- Programmed Before Dispatch: Send your machine serial number (PIN) after checkout — we flash it to your machine before shipping.
$1,699.00
-
Bench-Tested - Every unit powered up and function-tested before dispatch.
-
6-Month Warranty - From delivery, against defects in materials and workmanship.
-
30-Day Returns - Unused items in original packaging. RMA required.
Product Details
This machine Electronic Control Module (machine ECM) is an aftermarket replacement for Caterpillar part numbers 172-9391 machine ECM (1729391) and 10R-4331 (10R4331). It is used across a wide range of Caterpillar equipment including G-series and H-series wheel loaders, off-highway and quarry trucks, 143H / 163H motor graders, D5N / D6N track-type tractors, wheel dozers, landfill and soil compactors, mining excavators and road reclaimers.
During remanufacturing the circuit board is inspected under magnification, failed or heat-stressed components are replaced, and the housing seals and connector pins are checked for moisture damage. Every module is then powered up on a test bench to confirm it restores original operating parameters.
- Reference Numbers: 172-9391, 1729391, 10R-4331, 10R4331
- Machine Platform: For Caterpillar wheel loaders, trucks, motor graders, dozers and compactors (see Application Chart)
- Installation: Direct replacement; mounts and plugs in like the unit being removed
- Programming: Programmed before dispatch with the correct software for your machine serial number (PIN) and controller function
- Testing: Every unit powered up and function-tested before dispatch
- Warranty: 6 months from delivery, with repair or replacement for defects in materials and workmanship
Send Us Your Machine Serial Number (PIN) — We Program The Module Before It Ships
This controller is catalogued as an unprogrammed unit, but it does not reach you blank. The same hardware is used across many machines and control functions, so we load the correct software for your machine in-house and it arrives ready to install, with no flashing needed on your side. Our 1–3 business day dispatch window starts from the moment we receive your complete machine information, not from the order date. The sooner you send it, the sooner your module ships.
Please send the following after checkout:
- Machine serial number (PIN), from the machine serial plate
- A clear photo of the machine serial plate
- A clear photo of the label on your current controller, including any software part number
- Where the controller is fitted and what it controls (for example implement, transmission or machine monitoring), if known
Installation Notes: We recommend having an experienced heavy-equipment technician fit this module. Always disconnect the battery first, inspect both harness connectors for corrosion or bent pins before plugging in, and clear stored fault codes with your service tool once the new ECM is installed.
Fitment & OEM Interchange
OEM part numbers are listed for cross-reference only. They do not imply that this part was made by the equipment manufacturer. All brand names are used solely to identify compatibility.
| Part No. | Without Dash | Relationship | Engine Platform |
|---|---|---|---|
| 172-9391 | 1729391 | This listing | For Caterpillar equipment (see Application Chart) |
| 10R-4331 | 10R4331 | Also covered by this listing | For Caterpillar equipment (see Application Chart) |
Application Chart — Compatible with Caterpillar Equipment
| Equipment Type | Models |
|---|---|
| Wheel Loader | 938G, 938G II, 950G, 950G II, 962G, 962G II, 966G, 966G II, 972G, 972G II, 980G, 980G II, 980H, 988G, 988H, 992G |
| Truck | 69D, 769D, 773D, 777D, 785C, 789C, 793C |
| Motor Grader | 143H, 163H, 163H NA |
| Track-Type Tractor | D5N, D6N |
| Wheel Dozer | 824G, 824G II, 824H, 834G, 834H |
| Landfill Compactor | 826G, 826G II, 826H, 836G, 836H |
| Soil Compactor | 825G, 825G II, 825H |
| Mining Excavator | 5110B, 5130, 5130B, 5230B |
| Quarry Truck | 771D, 775D |
| Tractor | 776D, 784C |
| Integrated Toolcarrier | IT38G, IT38G II |
| Cold Planer | PM-465 |
| Reclaimer Mixer / Road Reclaimer | RM-350B |
| Asphalt Screed | 8-16B, 10-20B |
Confirm Before You Order: This is a machine controller, and one machine can carry more than one control module. Check that the unit you are replacing is labelled 172-9391, 1729391, 10R-4331 or 10R4331, and send us a photo of the label and machine serial plate if you are unsure. We will confirm before you buy.
Technical Specifications
| Part Name | Machine Electronic Control Module (Machine ECM / Control Group) |
| Reference Numbers | 172-9391, 1729391, 10R-4331, 10R4331 |
| Condition | Remanufactured |
| Installation Method | Direct replacement |
| Programming | Programmed before dispatch with software matched to your machine serial number (PIN); no flashing required after arrival |
| System Voltage | Application dependent, confirm on data plate |
| Housing Material | Application dependent, confirm on data plate |
| Connectors | Same layout as the 172-9391 unit being replaced; compare with your current ECM |
| Circuit Protection | Application dependent, confirm on data plate |
| Testing | Bench-tested: powered up and function-tested before dispatch |
| Warranty | 6 months from delivery against defects in materials and workmanship (repair or replacement) |
| Package Contents | 1 × Machine Electronic Control Module (programmed to your machine) |
This module is intended to restore factory-specified performance only. It does not alter, disable or remove any emission control function.
Common Failure Symptoms
| Symptom | What It Usually Points To |
|---|---|
| 950G loader implement functions stop responding while the engine runs normally | Machine ECM output fault, or a damaged harness or solenoid on that circuit |
| Monitor or display shows a communication fault with a control module | Controller dropped off the data link: power, ground or data link wiring, or a failed module |
| Service tool cannot see one of the machine controllers | No power or ground at the controller, a data link fault, or a failed ECM |
| Loader transmission will not shift or stays in one gear | Transmission control output fault in the ECM, or a solenoid or wiring problem |
| Several unrelated machine fault codes appear at the same time | Unstable supply voltage or a controller that is failing internally |
| Functions cut out intermittently, especially over rough ground | Loose connector or ground, or an intermittent internal ECM fault |
| A controller swapped in from another machine does not work | The module is not loaded with software matched to this machine serial number and function |
| Green or white corrosion on the controller connector pins | Water intrusion that may have damaged the circuit board |
Check the Simple Causes First: Before replacing the controller, test battery voltage, clean and tighten the ground straps, and inspect the harness and connectors for damage or moisture. These cheaper faults cause many of the same symptoms.
Shipping & Quality Guarantee
- Bench-Tested: Every unit is powered up and function-tested before dispatch.
- Fast Dispatch: Dispatched in 1–3 business days. For this programmed item, the window starts once we receive your machine serial number (PIN).
- Free Express Shipping: Delivered in 3–8 business days by DHL, FedEx or UPS.
- Tracking: Tracking number provided within 24–48 hours of dispatch.
- Protective Packaging: Anti-static bag and padded carton.
- 6-Month Warranty: From delivery, against defects in materials and workmanship.
- 30-Day Returns: Unused items in original packaging; an RMA number is required.
- Technical Support: Send photos of your ECM label and data plate and our team will help confirm fitment.
Shipping & Customs Notice
Our price covers the product and shipping only. Import duties, VAT, GST and any other local taxes or customs clearance fees are not included and are the buyer’s responsibility.
All trademarks and part numbers are used for compatibility reference only. LIUCHUANG Parts is an independent aftermarket parts supplier and has no official or authorized relationship with any equipment manufacturer.
