20R-8182 20R8182 Engine Control Module ECM for Caterpillar 627G 637G 586C
20R-8182 ECM for Caterpillar 627G, 637G scrapers, 586C and AD30.
- Interchangeability: Replaces 20R-8182 / 20R8182. Existing bracket and harness connectors, no rewiring.
- Application: Fits for Caterpillar 627G, 637D, 637G scrapers, 586C site prep tractor, AD30, C7 / C9 engines.
- Programming Required: Ships unflashed — a workshop must configure it to your engine serial number.
- Condition: Remanufactured — the 20R prefix is remanufactured-series numbering, matching the part supplied.
$1,399.00
-
Bench-Tested - Every unit powered up and function-tested before dispatch.
-
6-Month Warranty - From delivery, against defects in materials and workmanship.
-
30-Day Returns - Unused items in original packaging. RMA required.
Product Details

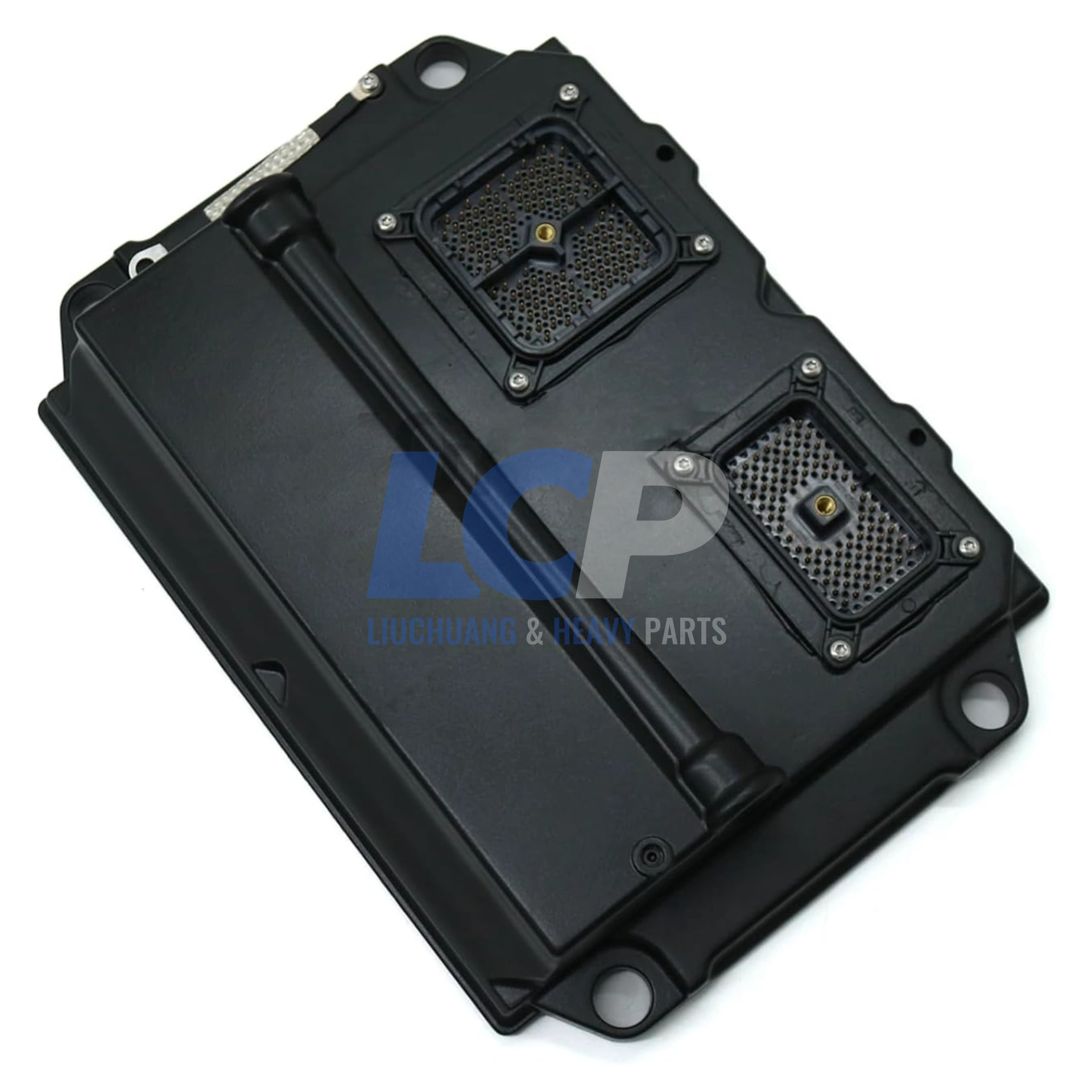

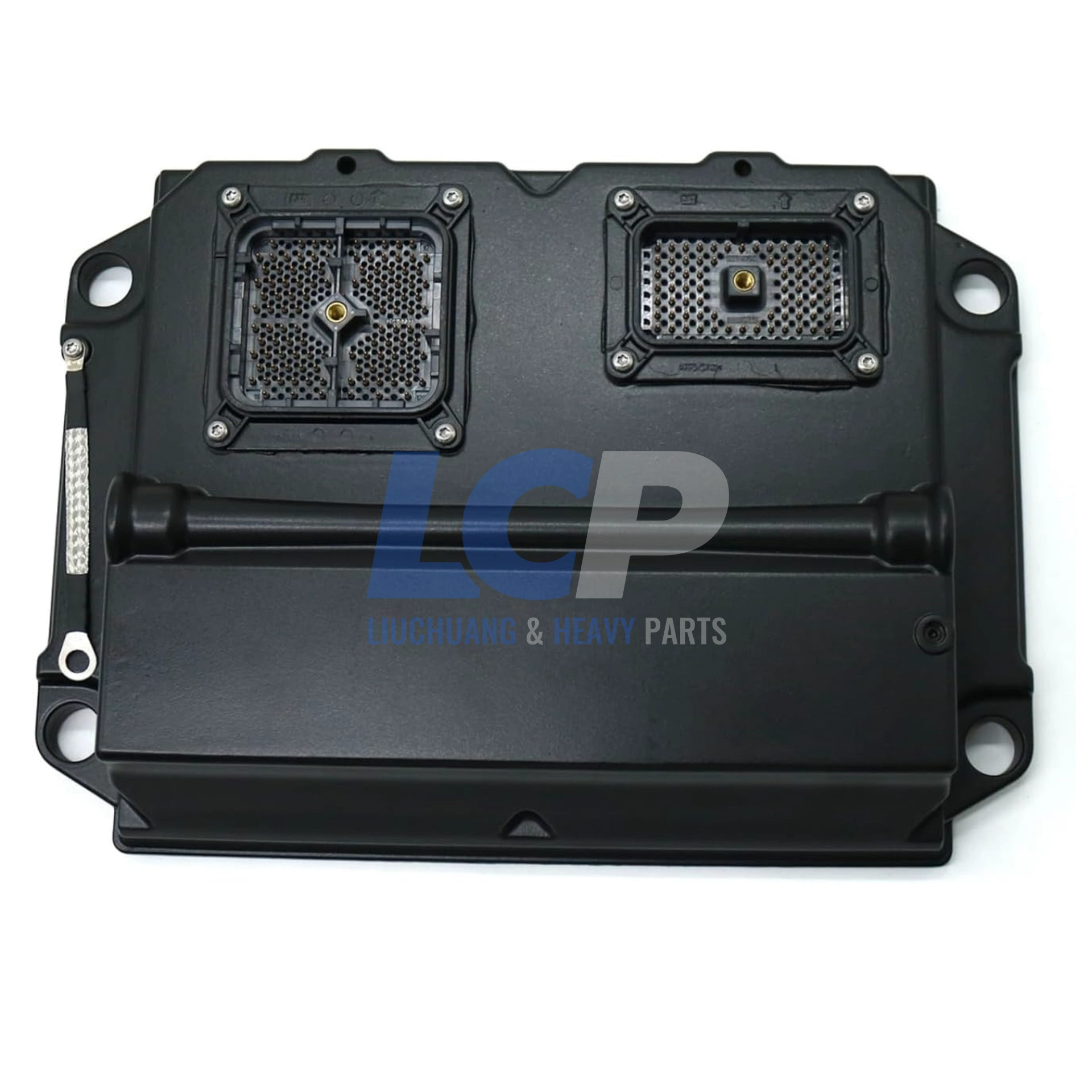

20R-8182 (20R8182) remanufactured engine control module — a direct-replacement ECM for Caterpillar 627G, 637D and 637G wheel scrapers and tractors, the 586C site prep tractor, the AD30 underground truck and C7 / C9 industrial and petroleum engine builds.
Scraper and site prep work is one of the harshest duty cycles a control module sees: constant shock loading through the frame, heavy dust and long hours at full load. Every core is dismantled and inspected under magnification, the supply regulators and driver outputs are rebuilt with new components, and the solder around the connector headers — the first thing to fatigue on a scraper — is reworked rather than merely inspected. The board is re-coated, the housing resealed, and the module is powered up and function-tested on a bench harness to factory-specified parameters before dispatch.
- A focused, short application list rather than a catch-all number, which makes fitment easier to confirm and reduces the risk of ordering the wrong module.
- Direct replacement on the existing bracket and harness connectors — nothing on the machine has to be modified.
- Rebuilt to restore original operating parameters; calibration, protection and emissions strategies stay exactly as the factory set them.
- Header solder joints reworked and driver components renewed, targeting the vibration-driven failures typical of 627G and 637 scraper work.
- Remanufactured under the 20R numbering convention, which matches the condition stated for this listing.
- Listed as both 20R-8182 and 20R8182. Supplied bare and requiring a flash — see the notice below.
Programming Required Before The Engine Will Start
The module ships with no engine application software loaded. A workshop with dealer-level service tooling has to flash and configure it against your engine before the machine will run. Send us the following as soon as you have ordered:
- Engine Serial Number (ESN) and Vehicle Identification Number (VIN)
- Clear photographs of the module currently fitted, with every number on the label readable
- A photograph of the engine data plate showing the arrangement number
- Machine model and serial prefix — for example 637G, 586C or AD30
Removal and refitting is a job for an experienced technician. Isolate the batteries before unplugging the module, and on scrapers pay particular attention to the harness routing and clamps when you reassemble: a loom left unclamped on a 637 will chafe through faster than on almost any other machine in the fleet.
Fitment & OEM Interchange
Caterpillar and CAT machine model designations appear below only to identify the equipment this aftermarket module is built to fit. The OEM interchange numbers listed are cross-reference data for identification purposes and do not imply that this part is made, supplied or endorsed by the trademark holder.
Part Number Cross-Reference
| Reference Number | Format / Role | Notes |
|---|---|---|
| 20R-8182 | Primary reference, hyphenated | Remanufactured-series numbering as printed on the module label. |
| 20R8182 | Same reference, no hyphen | The form used in most stores and parts systems. |
| 20R 8182 | Space-separated variant | Appears on job cards and supplier quotations. |
Related Reference Numbers — Same Replacement Family
The reference numbers below sit in the same replacement family and turn up on machines with overlapping application lists. They are not automatically interchangeable — coverage varies by build date and engine arrangement, so read the label on the module currently fitted, or send us a photo of it, before you order.
| Reference Number | Typical Coverage Difference |
|---|---|
| 226-7475 / 2267475 | Adds 365C / 385C excavators and the TH31-E61 petroleum transmission to a similar scraper base. |
| 478-7933 / 4787933 | Much wider coverage including AD22–AD55 trucks, R-series LHD loaders and C11 / C15 / C18 builds. |
Application Chart — Fits For Caterpillar
| Machine / Engine Category | Models |
|---|---|
| Engine – Machine | C9 |
| Industrial Engine | C7, C9 |
| Petroleum Engine | C9 |
| Site Prep Tractor | 586C |
| Underground Art Truck | AD30 |
| Wheel Scraper | 627G, 637D, 637G |
| Wheel Tractor | 637G |
Before You Order
627G and 637 machines are frequently rebuilt and re-engined during their working life, and the module fitted follows the engine rather than the machine badge. Check the reference on the label of the unit you are removing against the table above before ordering. If the label is unreadable after years of dust and washdown, send us photographs of the module and the engine data plate and we will identify it.
Technical Specifications
| Specification | Detail |
|---|---|
| Part Name | Electronic Engine Control Unit — ECM / ECU Module |
| Reference Numbers | 20R-8182, 20R8182 |
| Condition | Remanufactured — rebuilt from a tested core (20R prefix denotes remanufactured-series numbering) |
| Installation Method | Direct replacement — mounts to the existing bracket and mates with the existing machine harness |
| Programming | Required — flashing with engine-specific software using dealer-level service tooling before start-up |
| System Voltage | 24V nominal on the machines listed — application dependent, confirm on the data plate |

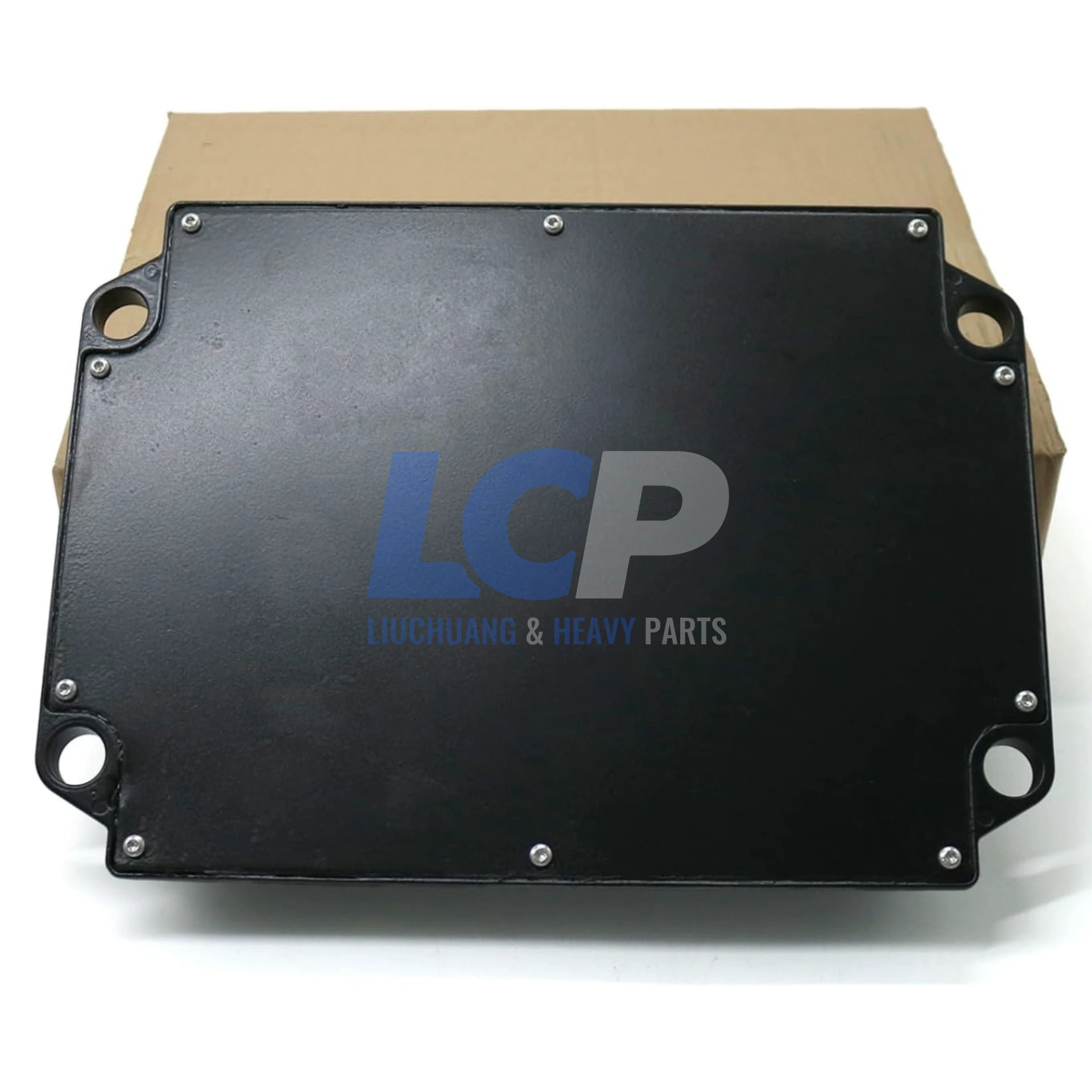

| Housing Material | Sealed die-cast aluminium case with integral heat-sink face |

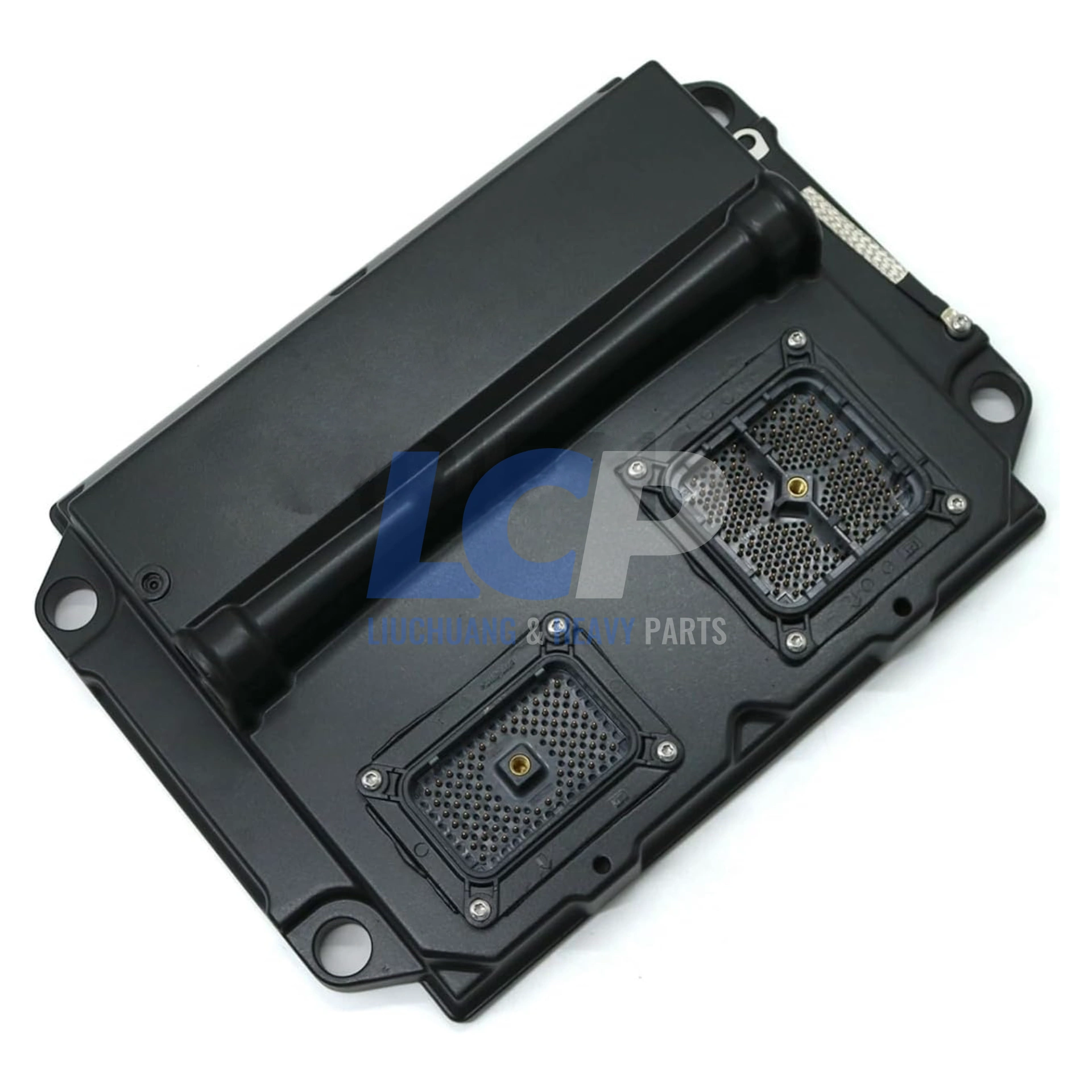

| Connectors | Sealed multi-pin machine harness connectors — pin count is application dependent, match against the module being replaced |
| Circuit Protection | Reverse-polarity and transient suppression to factory-specified design; no protection features removed or bypassed |
| Testing | Powered up and function-tested on a bench harness before dispatch |
| Warranty | 6 months from delivery, against defects in materials and workmanship |
| Package Contents | 1 × engine control module. Brackets, harness, gaskets and software licences are not included. |
This module is supplied to restore factory-specified performance and original operating parameters only. Emissions-related calibration and engine protection strategies are left exactly as the factory defined them; we do not supply, alter or support any change to emissions control functions.
Common Failure Symptoms
Scrapers and site prep tractors shake their electronics harder than most machines, so module faults here tend to be intermittent long before they become permanent. The table below covers what usually points at the control module on this group.
| Symptom | What It Usually Points To |
|---|---|
| Engine cranks normally but will not fire, with no injector activity heard | The injector driver stage or the internal supply feeding it has failed. |
| Engine cuts out momentarily as the machine loads or crosses rough ground, then picks up again | Fatigued solder at the connector headers making and breaking under shock loading. |
| Loss of throttle response with the pedal and sensor both testing correctly | A failed throttle input circuit inside the module. |
| Machine derates and holds low idle after a fault event, with nothing wrong mechanically | The module has switched to a default limp-home strategy following an internal fault. |
| Engine data drops off the display intermittently while the engine keeps running | The data link output from the module is failing before the engine control side does. |
| A group of unrelated sensor codes logged at exactly the same time | The regulated sensor supply generated inside the module has collapsed. |
| Hard starting or no start after the machine has stood in heavy rain | Moisture in the connector shell or ingress that has reached the module inputs. |
| ECM memory or configuration faults that will not stay cleared | A failing internal memory device holding the engine configuration. |
Rule Out The Cheap Causes First
On a 627G or 637 the most common cause of these symptoms is not the module at all — it is the harness and the grounds. Check battery condition under crank, clean and torque the frame and engine ground straps, walk the ECM loom looking for chafe at every clamp and pass-through, and open both connectors to check for water and spread terminals. Replace a healthy ECM and the fault will simply follow the machine back into the pit.
Shipping & Quality Guarantee
- Dispatch: orders are dispatched in 1–3 business days after the fitment details are confirmed.
- Free express delivery: DHL / FedEx / UPS, 3–8 business days door to door.
- Tracking: a tracking number is issued within 24–48 hours of dispatch.
- Bench-tested: every unit is powered up and function-tested before it leaves the workshop.
- 6-month warranty from delivery, against defects in materials and workmanship.
- 30-day returns on unused items in their original packaging; an RMA number is required before shipping anything back.
- Protective packaging: anti-static bag, foam-lined carton, connector caps fitted to keep the pins clean in transit.
- Technical support: send us your data plate photos and we will confirm the reference number before and after the sale.
Shipping & Customs Notice
The amount charged covers the product and shipping only. Import duties, VAT, GST, customs clearance charges and any other local taxes are not included and remain the responsibility of the buyer. Please check your own country’s import rules before ordering.
Caterpillar®, CAT® and all machine and engine model designations are the registered trademarks of their respective owners. We are an independent supplier of aftermarket replacement parts and have no affiliation with, sponsorship from or authorisation by the trademark holder. Reference numbers including 20R-8182 / 20R8182 are quoted purely as OEM cross-reference data to help you identify the correct fitment.
