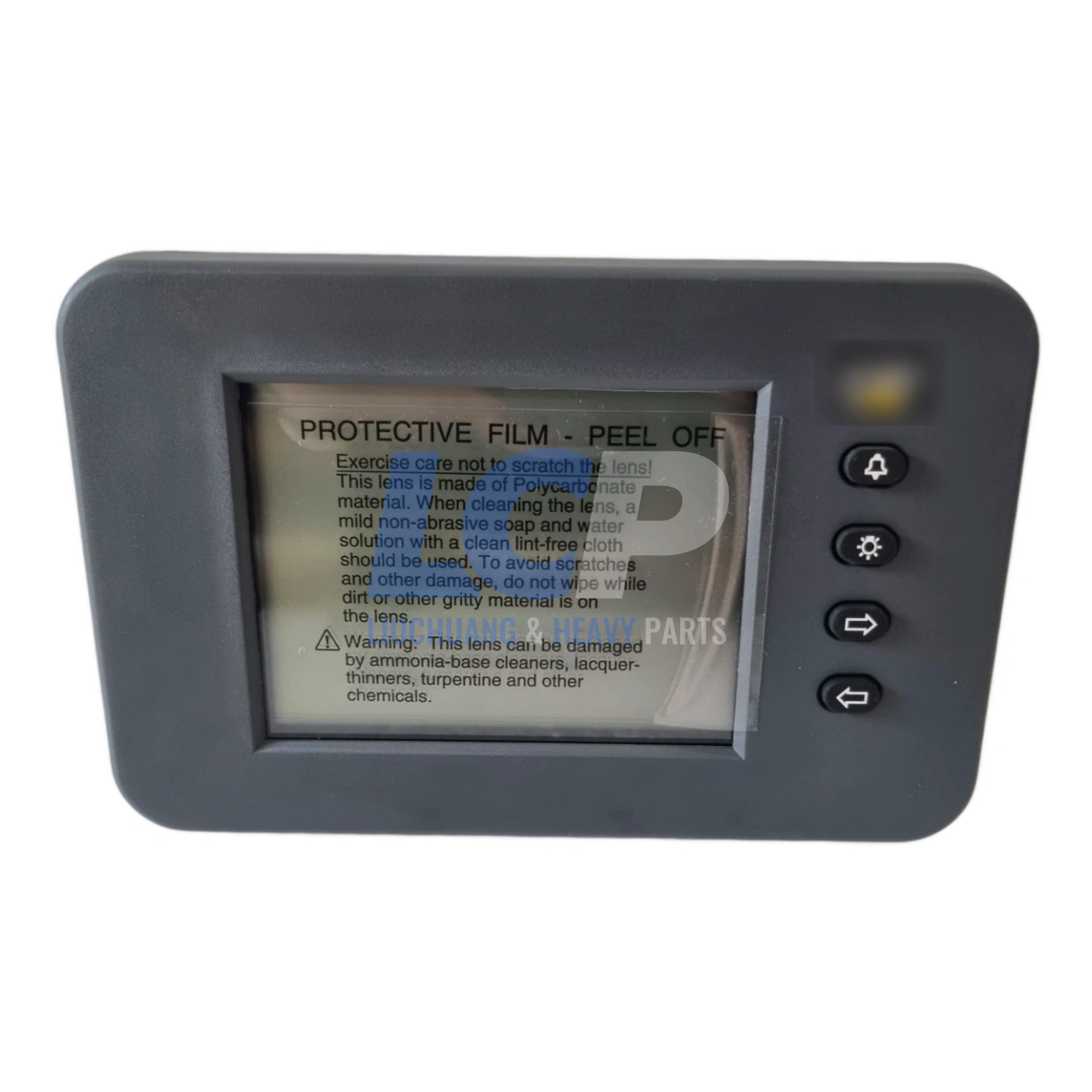

259-2171 Marine Monitoring Display Panel for Caterpillar C32 C-15 3512C 3516C Petroleum
259-2171 marine monitoring display, fits for Caterpillar C32, C-15, 3512C and 3516C petroleum and industrial engines.
- Interchangeability: 259-2171 / 307-7542 / 307-7541 / 267-8623
- Application: C32 & 3500C petroleum, C-15 industrial, 3500 series marine and genset
$1,299.00
-
Bench-Tested - Every unit powered up and function-tested before dispatch.
-
6-Month Warranty - From delivery, against defects in materials and workmanship.
-
30-Day Returns - Unused items in original packaging. RMA required.
Product Details

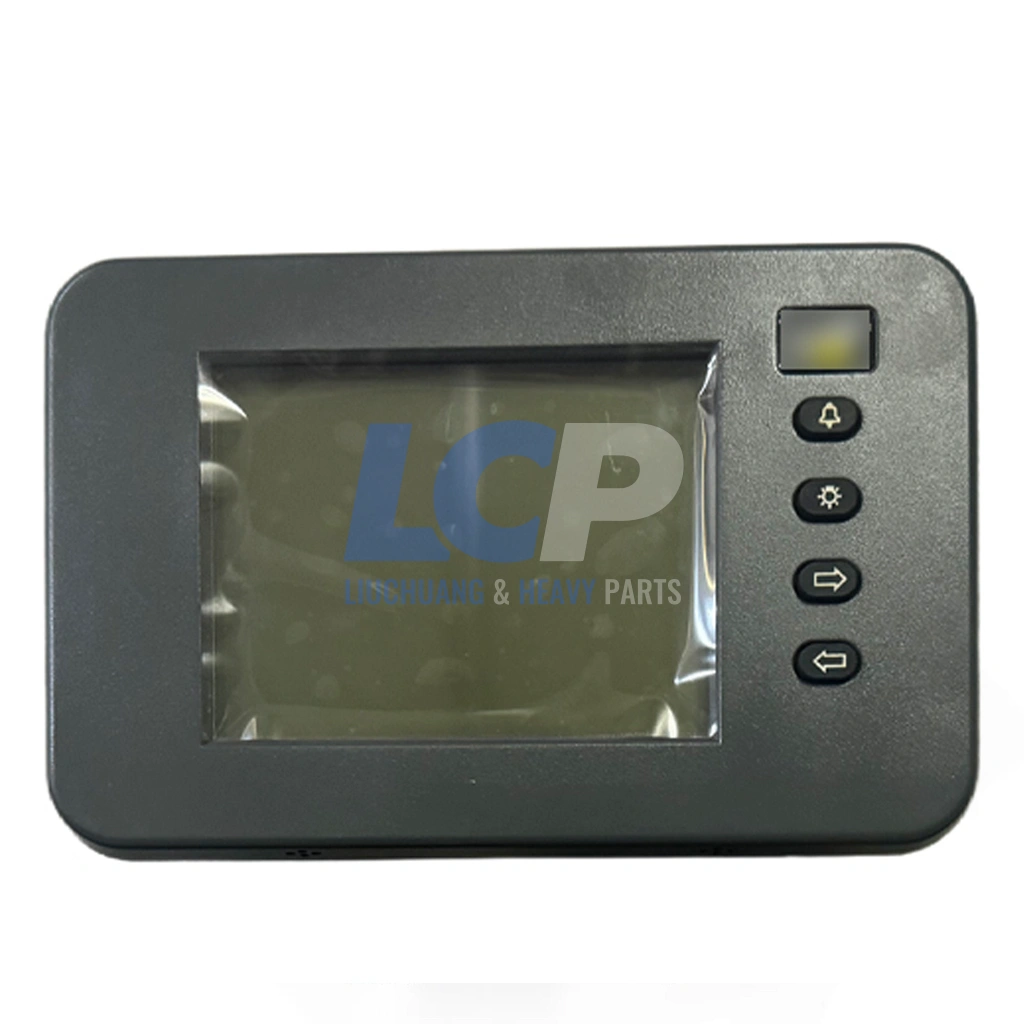

Part number 259-2171 is a marine power monitoring display, supplied as a new open-box unit and fitted as a direct replacement on C32 and 3500C petroleum packages, C-15 industrial engines and marine installations.
Petroleum and industrial installations run long unattended duty cycles, which makes a working display less a convenience than a safety item: it is where a rising coolant temperature or falling oil pressure gets noticed before a shutdown becomes damage. This panel restores that readout as a straight swap, with no change to engine calibration or control wiring.
- Direct replacement fitment — original panel cut-out, mounting studs and harness connector, so no panel modification or rewiring is required.
- New, open-box condition — an unused unit supplied in neutral packaging rather than branded retail cartons.
- Petroleum and industrial focus — covers 3512C, 3516C and C32 petroleum engines plus C-15 industrial, alongside the full marine range.
- Four-number interchange group — cross-references 259-2171, 307-7541, 307-7542 and 267-8623 in hyphenated and plain forms.
- Marine-grade enclosure — sealed front face and gasketed rear housing intended for humidity, salt air and continuous vibration.
- 6-month warranty — repair or replacement service if any fault appears within the period.
Please Verify Your Panel Before Ordering
Display panels across these engine families look similar but are not always interchangeable. Checking first takes a minute and avoids a return.
If you are not certain, send us:
- Your Engine Serial Number (ESN)
- A clear photograph of the front of your existing display

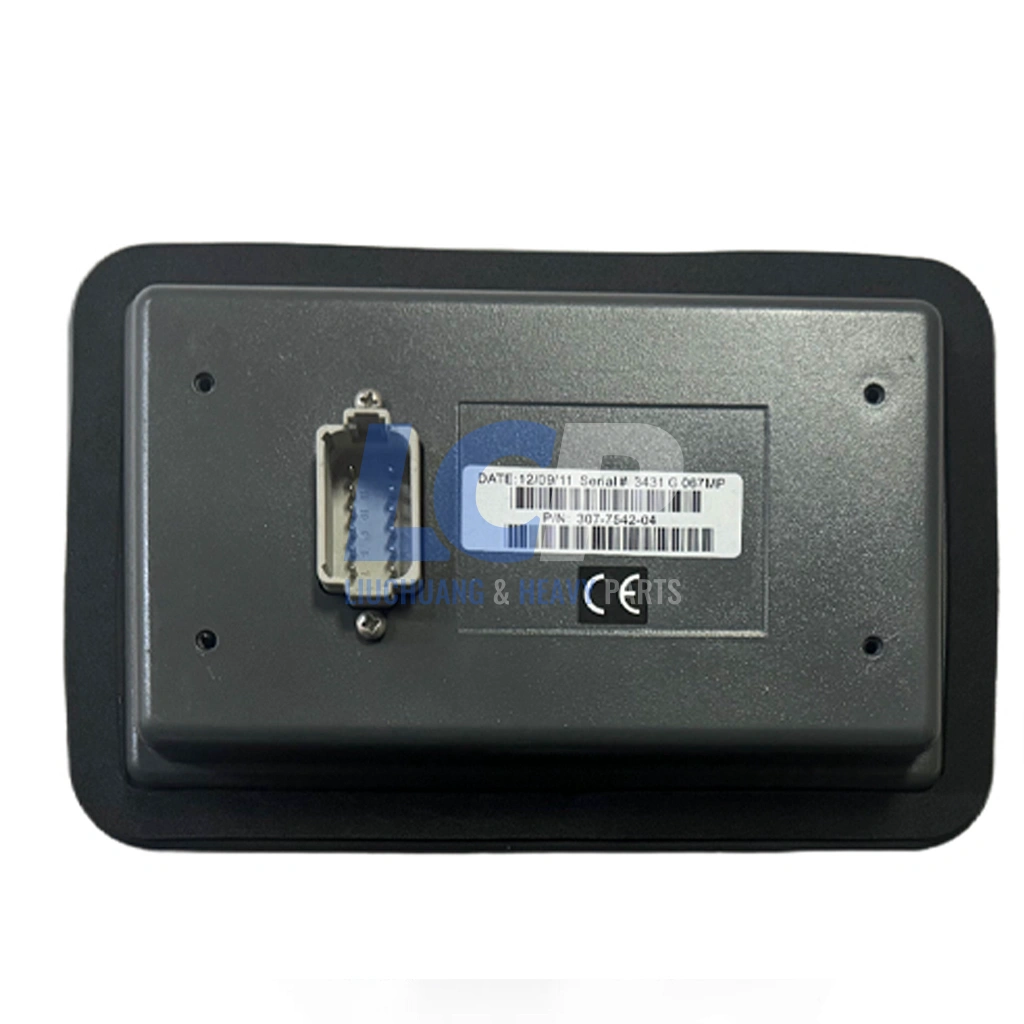

- A clear photograph of the label on the rear of the panel
We will confirm the match for you before you buy.
Isolate the battery before disconnecting or fitting the panel. This display reports engine data and does not alter, bypass or remove any emissions control system.
Fitment & OEM Interchange
The following reference numbers are listed for cross-reference and identification purposes only. All trademarks belong to their respective owners.
| Primary Reference Number | 259-2171 / 2592171 |
| Interchange Numbers | 307-7542 / 3077542 | 307-7541 / 3077541 | 267-8623 / 2678623 |
| Condition | NEW — , neutral packaging |
| Installation | Direct replacement |
Application Chart — Compatible with Caterpillar Engines
| Category | Models |
|---|---|
| Marine Engine | 3126B, 3176B, 3176C, 3196, 3406E, 3412, 3412E, 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C, C7, C9, C12, C-12, C15, C18, C30, C32 |
| Marine Auxiliary | 3508B, 3508C, 3512B, 3512C, 3516B, 3516C, C32 |
| Generator Set | 3508B, 3512B, 3512C, 3516B, 3516C, C18 |
| Petroleum Engine | 3512C, 3516C, C32 |
| Industrial Engine | C-15 |
Before ordering: the four numbers above sit in one interchange group, but individual vessels and sets can carry different panel variants depending on build date and specification. Compare the label on the rear of your existing display against these numbers, and send us a photo with your ESN if it does not appear here.
Technical Specifications
| Part Type | Marine power display / LCD monitoring panel |
| Reference Numbers | 259-2171, 307-7542, 307-7541, 267-8623 |
| Condition | NEW , supplied in neutral packaging |
| Installation Method | Direct replacement — no panel or harness modification |
| Function | Engine parameter readout, alarm annunciation and operator interface |
| System Voltage | 12V / 24V DC — application dependent, confirm against your installation |
| Mounting | Panel mount, original cut-out and stud pattern |
| Connector | Sealed rear harness connector, original pin layout |
| Environmental Design | Sealed front face and gasketed housing for marine humidity, salt air and vibration |
| Programming | Not required for the display itself; configuration follows your existing engine control system |
| Warranty | 6 months — repair or replacement service |
| Package Contents | 1 x display panel (mounting hardware and harness not included) |
Where a specification is application dependent, confirm it against your own installation before ordering. This panel is supplied to restore original operating parameters only.
Common Failure Symptoms
Display panels usually degrade in stages rather than failing outright. These are the patterns reported most often, and what each one typically points to.
| Symptom | What It Usually Points To |
|---|---|
| Screen dark but engine runs normally | Backlight or internal power supply failure. Verify panel supply voltage at the connector before replacing. |
| Display freezes during long duty cycles | Heat-related processor lock-up — a particular risk on continuously running petroleum and industrial sets. |
| Readings shown but no alarm annunciation | Alarm output stage fault. On unattended installations this is the most serious failure mode, since protection is silently lost. |
| Erratic values on pressure or temperature channels | Corrupted data or a failing input stage; cross-check the same parameters with a service tool before deciding. |
| Backlight visible but no image | Failed LCD driver or internal ribbon connection inside the panel. |
| Intermittent blanking under vibration | Fatigued solder joints behind the connector, or a loose harness pin. Wiggle-test with the engine running. |
| Corrosion around the bezel or rear connector | Failed seal allowing moisture ingress — usually terminal once it reaches the board. |
Check the supply side first. Panel fuse, supply voltage at the connector, ground integrity and corroded pins imitate display failure far more often than the display itself. A panel that is dark on one engine and works on another is almost always a wiring problem, not a dead unit.
Shipping & Quality Guarantee
- 100% quality control — every panel is powered up and screen-checked before it leaves our facility.
- Dispatch in 1–3 business days via DHL, UPS or FedEx express, with tracking provided as soon as the label is generated.

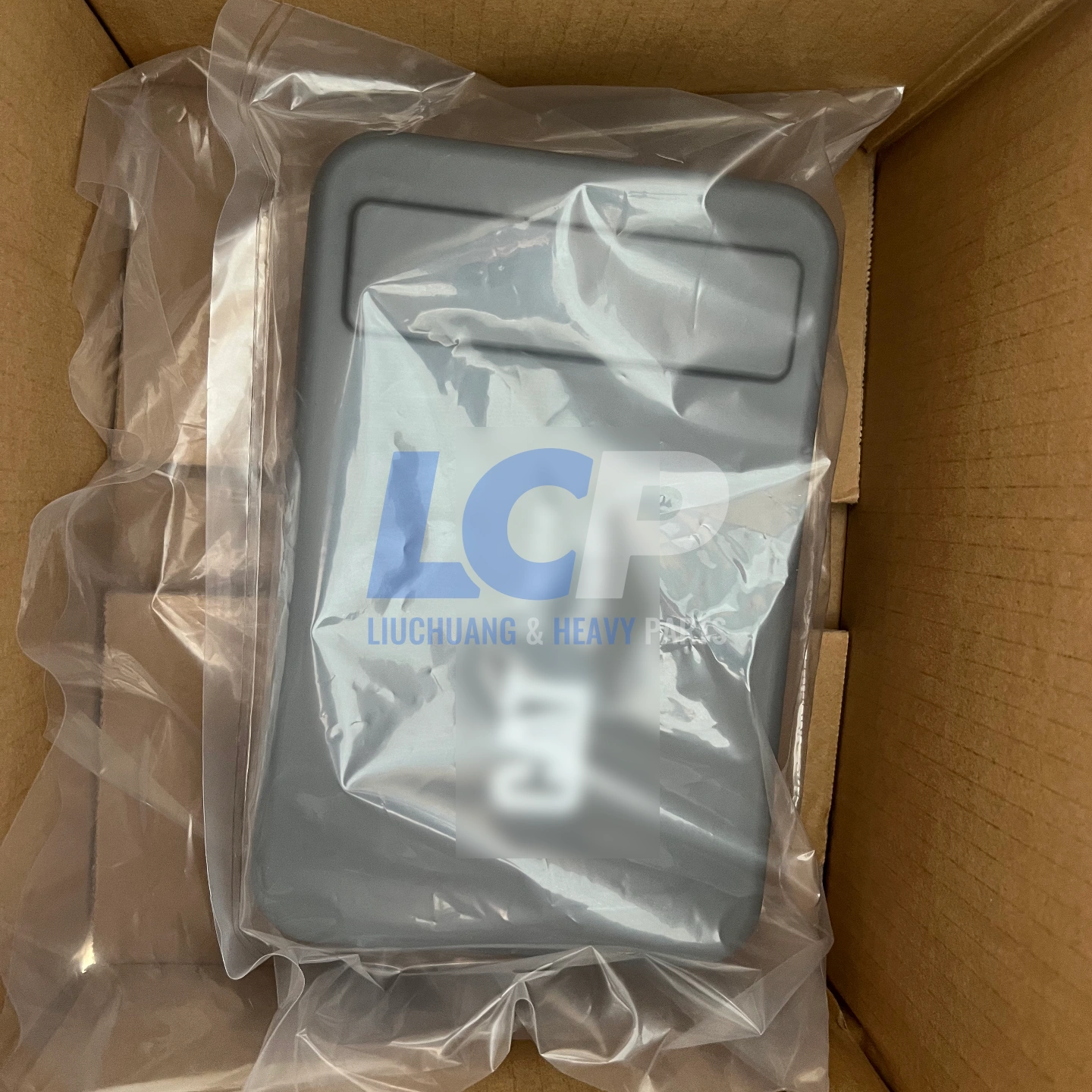

- Neutral packaging — anti-static wrap and foam-cushioned carton, with no third-party branding on the outer box.
- 6-month warranty — if a fault arises within the period, we provide repair or replacement service.
- Fitment support — send us your ESN and photos of your existing panel and we will confirm the match before and after purchase.
Shipping & Customs Notice
The listed price covers the product, shipping and handling only. It does not include import duty, VAT, GST or any local taxes or customs clearance charges. Any such fees are levied by your national customs authority and remain the buyer’s responsibility. Please check your local import regulations before ordering.
All brand names, part numbers and model designations are used for identification and cross-reference purposes only. We are an independent parts supplier and are not affiliated with, authorised by or endorsed by any vehicle, engine or equipment manufacturer. All trademarks are the property of their respective owners.
