307-7541 Marine LCD Display Monitor Panel for Caterpillar 3406E 3512C C18 C32 Engines
307-7541 marine LCD monitoring display, fits for Caterpillar marine engines from C7 to 3516C and C32.
- Interchangeability: 307-7541 / 307-7542 / 267-8623 / 259-2171
- Application: 3126B, 3406E, 3412E, 3500 series, C7, C9, C12, C18, C30, C32 marine
$1,299.00
-
Bench-Tested - Every unit powered up and function-tested before dispatch.
-
6-Month Warranty - From delivery, against defects in materials and workmanship.
-
30-Day Returns - Unused items in original packaging. RMA required.
Product Details

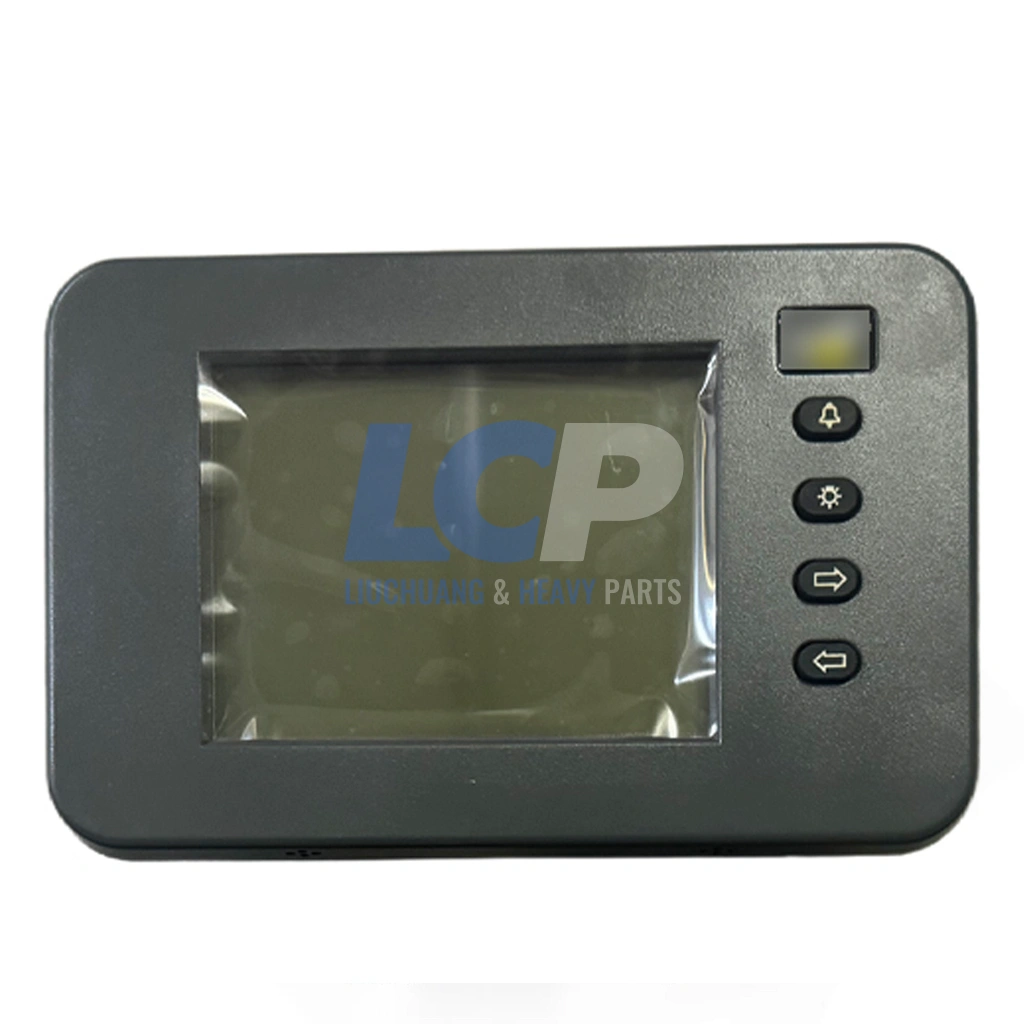

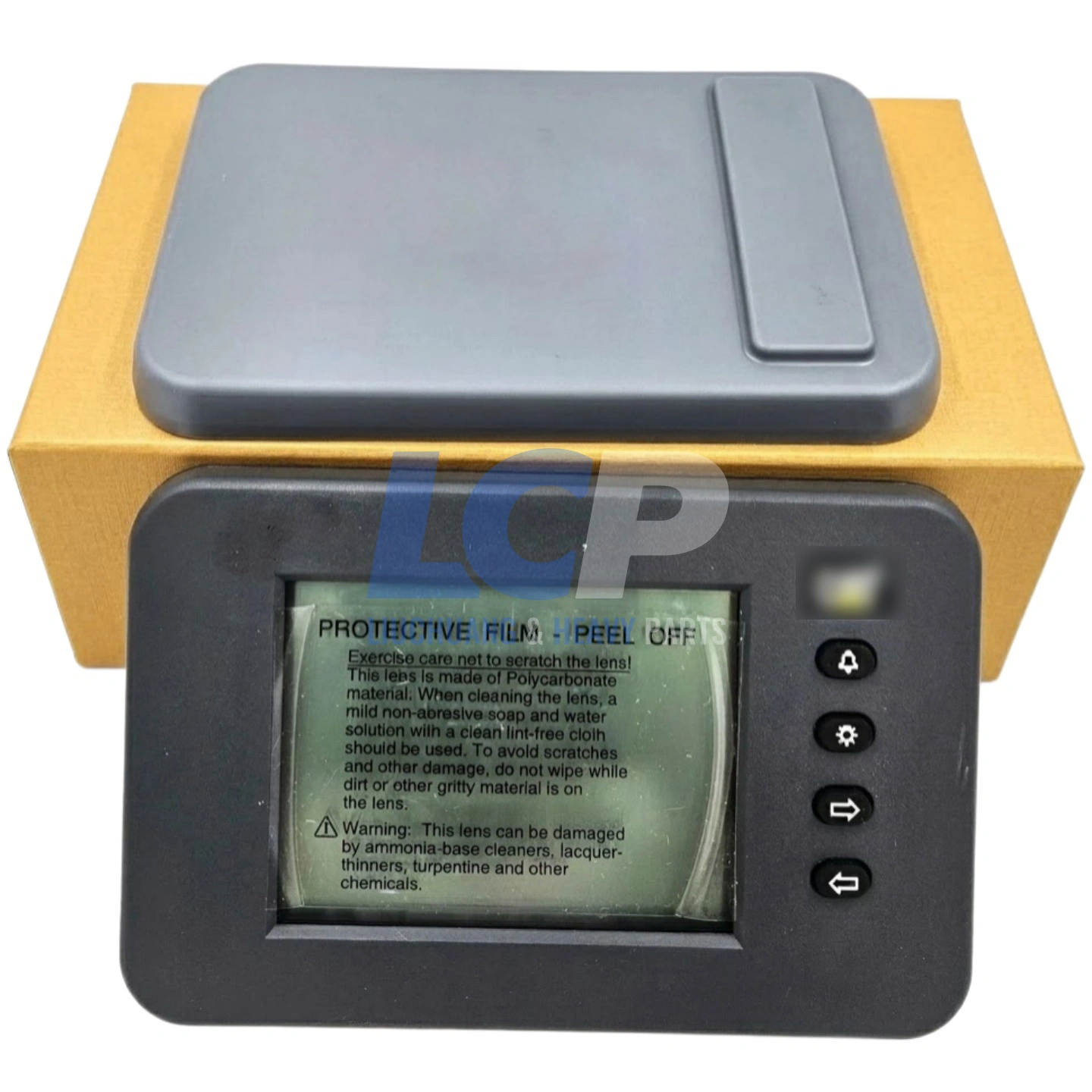

Part number 307-7541 is a marine LCD monitoring display, supplied as a new open-box unit and fitted as a direct replacement across the widest span of propulsion engines in this group — from C7 and C9 up to 3516C and C32.
Propulsion displays live a hard life. Salt air works into the bezel seal, constant hull vibration fatigues the solder joints behind the connector, and years of sunlight through a wheelhouse window degrade the backlight and polariser. Replacing the panel restores instrument readout and alarm indication without touching engine calibration, wiring or the control module behind it.
- Direct replacement fitment — original panel cut-out, mounting studs and harness connector, so no dash modification or rewiring is required.
- New condition — an unused unit supplied in neutral packaging rather than branded retail cartons.
- Broadest propulsion coverage in the group — 24 marine engine families from 3126B and C7 through 3406E, 3412E, the full 3500 series, C30 and C32.
- Four-number interchange group — cross-references 307-7541, 307-7542, 267-8623 and 259-2171 in hyphenated and plain forms.
- Marine-grade enclosure — sealed front face and gasketed rear housing intended for wheelhouse and engine room conditions.
- 6-month warranty — repair or replacement service if any fault appears within the period.
Please Verify Your Panel Before Ordering
Display panels across these engine families look similar but are not always interchangeable. Checking first takes a minute and avoids a return.
If you are not certain, send us:
- Your Engine Serial Number (ESN)
- A clear photograph of the front of your existing display

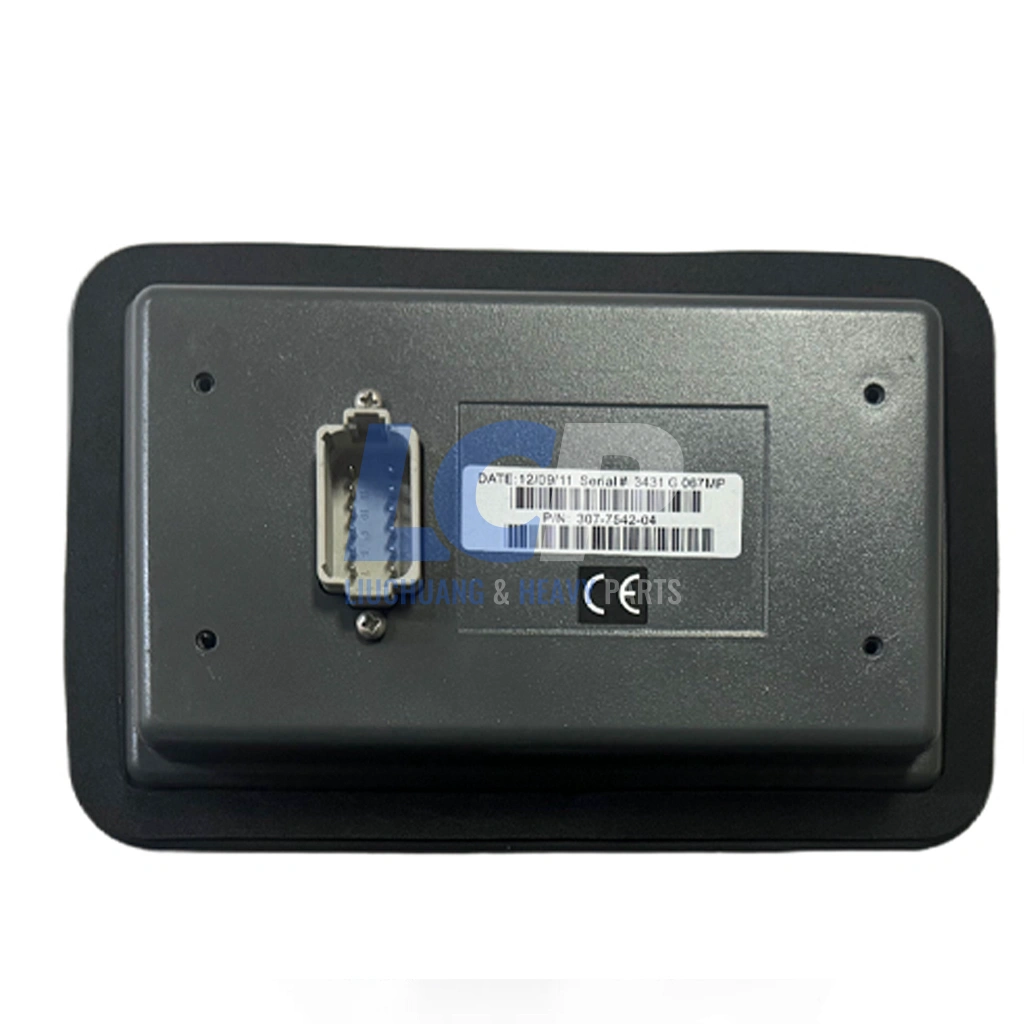

- A clear photograph of the label on the rear of the panel
We will confirm the match for you before you buy.
Isolate the battery before disconnecting or fitting the panel. This display reports engine data and does not alter, bypass or remove any emissions control system.
Fitment & OEM Interchange
The following reference numbers are listed for cross-reference and identification purposes only. All trademarks belong to their respective owners.
| Primary Reference Number | 307-7541 / 3077541 |
| Interchange Numbers | 307-7542 / 3077542 | 267-8623 / 2678623 | 259-2171 / 2592171 |
| Condition | NEW neutral packaging |
| Installation | Direct replacement |
Application Chart — Compatible with Caterpillar Engines
| Category | Models |
|---|---|
| Marine Engine | 3126B, 3176B, 3176C, 3196, 3406E, 3412, 3412E, 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C, C7, C9, C12, C-12, C15, C18, C30, C32 |
| Marine Auxiliary | 3508B, 3508C, 3512B, 3512C, 3516B, 3516C, C32 |
| Generator Set | 3508B, 3512B, 3512C, 3516B, 3516C, C18 |
| Petroleum Engine | 3512C, 3516C, C32 |
| Industrial Engine | C-15 |
Before ordering: the four numbers above sit in one interchange group, but individual vessels and sets can carry different panel variants depending on build date and specification. Compare the label on the rear of your existing display against these numbers, and send us a photo with your ESN if it does not appear here.
Technical Specifications
| Part Type | Marine power display / LCD monitoring panel |
| Reference Numbers | 307-7541, 307-7542, 267-8623, 259-2171 |
| Condition | NEW, supplied in neutral packaging |
| Installation Method | Direct replacement — no panel or harness modification |
| Function | Engine parameter readout, alarm annunciation and operator interface |
| System Voltage | 12V / 24V DC — application dependent, confirm against your installation |
| Mounting | Panel mount, original cut-out and stud pattern |
| Connector | Sealed rear harness connector, original pin layout |
| Environmental Design | Sealed front face and gasketed housing for marine humidity, salt air and vibration |
| Programming | Not required for the display itself; configuration follows your existing engine control system |
| Warranty | 6 months — repair or replacement service |
| Package Contents | 1 x display panel (mounting hardware and harness not included) |
Where a specification is application dependent, confirm it against your own installation before ordering. This panel is supplied to restore original operating parameters only.
Common Failure Symptoms
Display panels usually degrade in stages rather than failing outright. These are the patterns reported most often, and what each one typically points to.
| Symptom | What It Usually Points To |
|---|---|
| Screen dark but engine runs normally | Backlight or internal power supply failure. Check panel supply voltage and the harness connector before replacing. |
| Washed-out or yellowed display | Degraded polariser and backlight from long-term sunlight exposure in the wheelhouse; readability drops progressively rather than failing outright. |
| Display freezes or reboots at sea | Processor lock-up aggravated by hull vibration and supply ripple. Check charging system voltage stability first. |
| Erratic gauge values across several channels | Corrupted data from the engine module or a failing display input stage; confirm the same values with a service tool before deciding. |
| Backlight visible but no image | Failed LCD driver or internal ribbon connection; supply is healthy but the display stage is not. |
| Dead pixels or growing dark patches | Physical LCD degradation, common on panels with many thousands of running hours. |
| Salt corrosion at the rear connector | Engine room humidity attacking the pins; clean and inspect before assuming the panel itself has failed. |
Check the supply side first. Panel fuse, supply voltage at the connector, ground integrity and corroded pins imitate display failure far more often than the display itself. A panel that is dark on one engine and works on another is almost always a wiring problem, not a dead unit.
Shipping & Quality Guarantee
- 100% quality control — every panel is powered up and screen-checked before it leaves our facility.
- Dispatch in 1–3 business days via DHL, UPS or FedEx express, with tracking provided as soon as the label is generated.

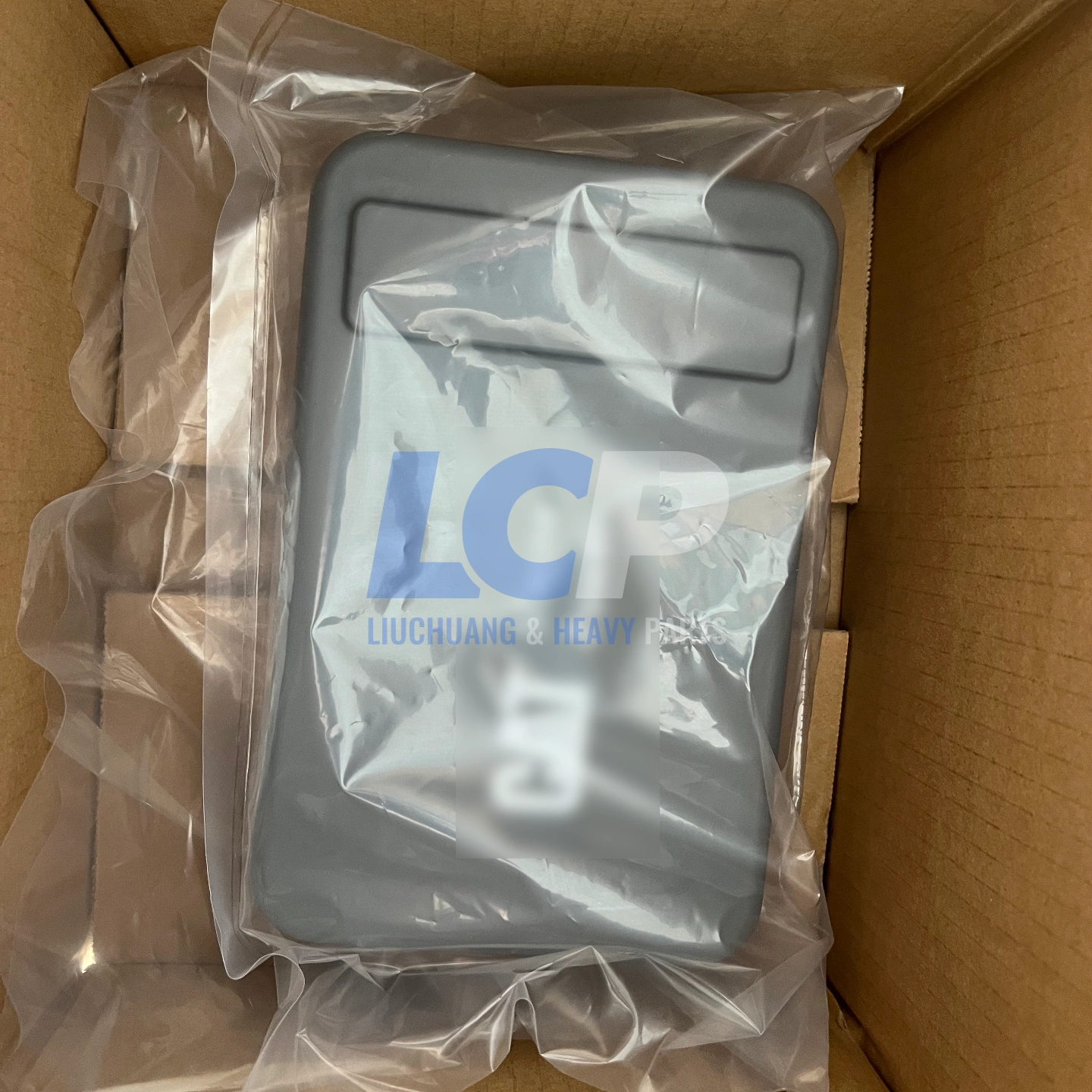

- Neutral packaging — anti-static wrap and foam-cushioned carton, with no third-party branding on the outer box.
- 6-month warranty — if a fault arises within the period, we provide repair or replacement service.
- Fitment support — send us your ESN and photos of your existing panel and we will confirm the match before and after purchase.
Shipping & Customs Notice
The listed price covers the product, shipping and handling only. It does not include import duty, VAT, GST or any local taxes or customs clearance charges. Any such fees are levied by your national customs authority and remain the buyer’s responsibility. Please check your local import regulations before ordering.
All brand names, part numbers and model designations are used for identification and cross-reference purposes only. We are an independent parts supplier and are not affiliated with, authorised by or endorsed by any vehicle, engine or equipment manufacturer. All trademarks are the property of their respective owners.
