355-9048 459-2220 Display Monitor Panel for CAT C32 D8R 980G 777C
355-9048 display monitor for Caterpillar C32 engines, D8R tractors and 980G loaders.
- Interchangeability: Replaces 355-9048 (3559048); replacement number 459-2220.
- Application: Fits for C7–C32B industrial, petroleum and locomotive engines, C280 marine engines, 966D–980G loaders, 621B–637D wheel tractors and D8R / D10R tractors.
- Check Your Connectors: Three 12-pin and two 6-pin connectors — compare with the monitor you are removing.
- Programmed Before Dispatch: Send your monitor part number and nameplate photo — we program it before shipping.
$2,299.00
-
Bench-Tested - Every unit powered up and function-tested before dispatch.
-
6-Month Warranty - From delivery, against defects in materials and workmanship.
-
30-Day Returns - Unused items in original packaging. RMA required.
Product Details
This display monitor (electronic display / monitor group) is an aftermarket replacement for Caterpillar reference numbers 355-9048 (3559048) and 459-2220 (4592220). It is used on Caterpillar machines and engines including C7 to C32B industrial, petroleum and locomotive engines, C280 marine engines, 966D to 980G wheel loaders, 621B to 637D wheel tractors, 777B to 777D trucks and D8R / D10N / D10R track-type tractors.

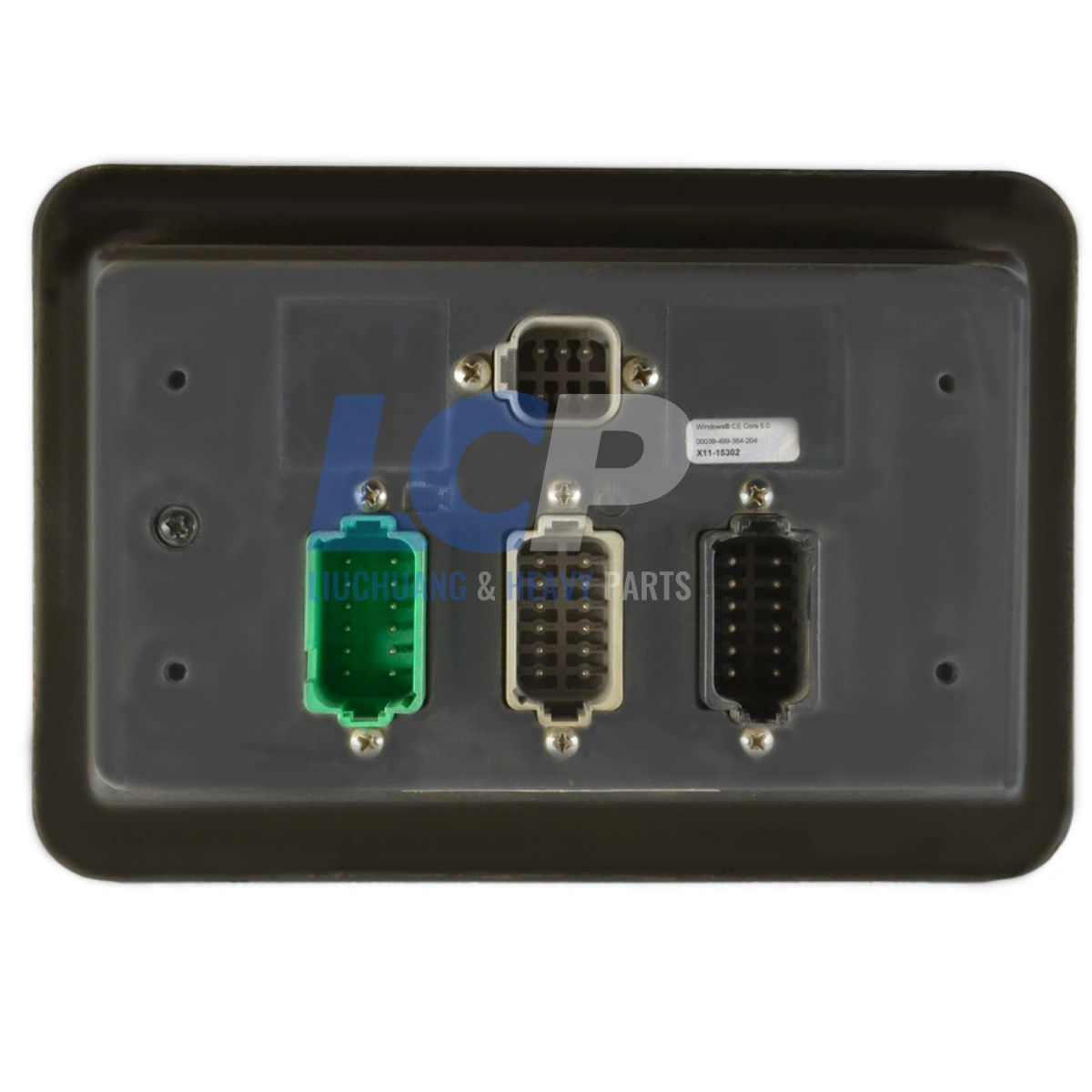

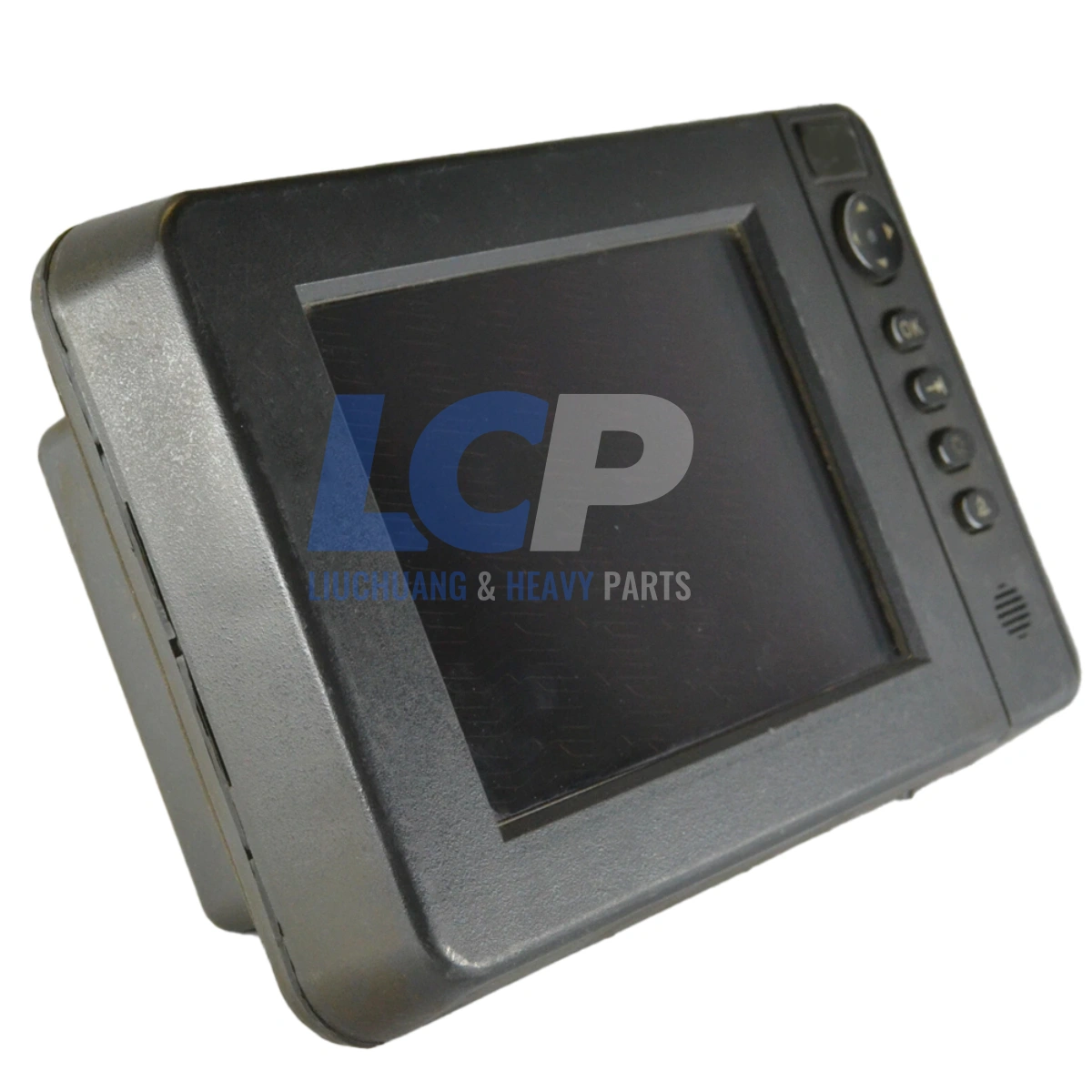

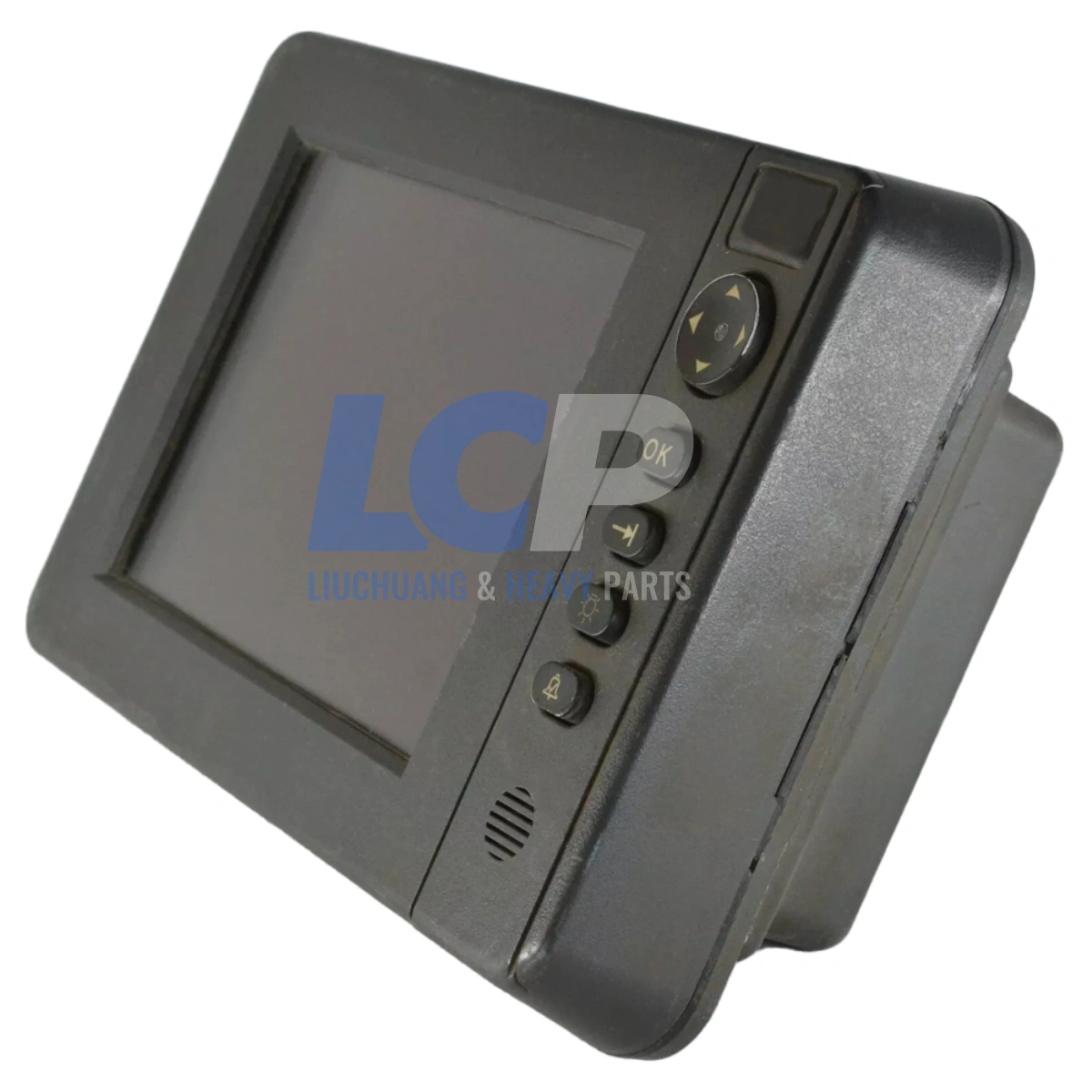

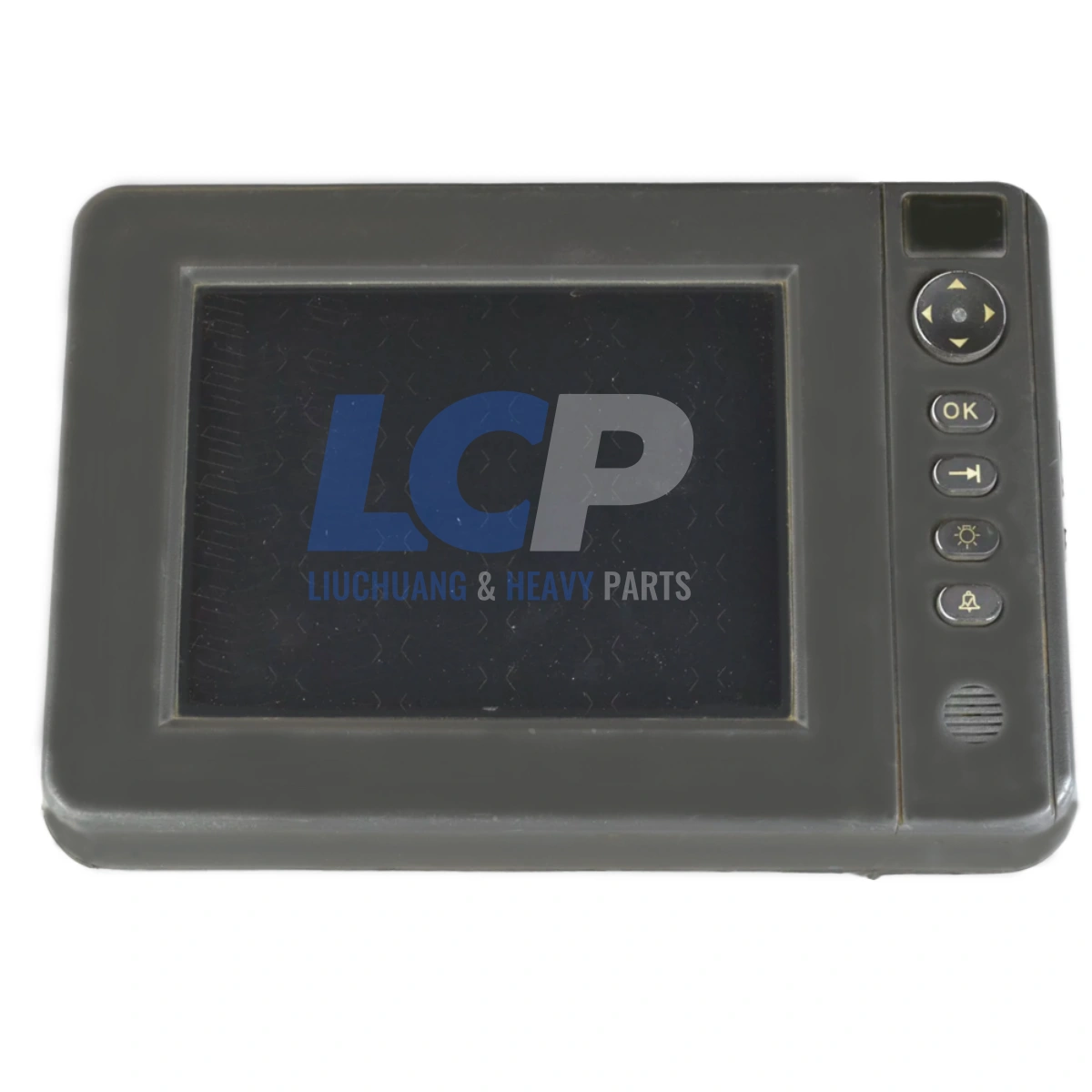

The monitor has a bronze information display screen in an ABS plastic housing, with three 12-pin and two 6-pin harness connectors. 459-2220 is the replacement part number for 355-9048, so units supplied against either number cover the same installation.
During remanufacturing the circuit board is inspected under magnification, failed or heat-stressed components are replaced, and the housing seals and connector pins are checked for moisture damage. Every module is then powered up on a test bench to confirm it restores original operating parameters.
- Reference Numbers: 355-9048, 3559048
- Machine Platform: For Caterpillar machines and C-series industrial, petroleum, locomotive and marine engines (see Application Chart)
- Installation: Direct replacement; mounts and plugs in like the unit being removed
- Programming: Programmed before dispatch to match your machine and current monitor part number
- Testing: Every unit powered up and function-tested before dispatch, including screen, backlight and keypad
- Warranty: 6 months from delivery, with repair or replacement for defects in materials and workmanship
Send Us Your Monitor Part Number and Machine Nameplate — We Program It Before It Ships
This monitor has to be configured for your machine, and it does not reach you unprogrammed: we do that work in-house before dispatch, so it arrives ready to install with nothing to flash on your side. Send us the part number and a photo of the monitor you are replacing together with your machine nameplate, and we both confirm the match and program the unit. Our 1–3 business day dispatch window starts from the moment we receive this information, not from the order date. The sooner you send it, the sooner your monitor ships.
Please send the following after checkout:
- The part number on the monitor you are replacing
- A clear photo of that monitor, front and rear label
- A clear photo of the machine nameplate (VIN / PIN plate)
- The engine model and serial number, for engine-mounted monitors
Installation Notes: Fitting the display is straightforward, but disconnect the battery before unplugging the old monitor, support the panel while releasing the bracket so the screen is not strained, and check the connector behind the module for corrosion or bent pins before plugging in. Clear any stored fault codes once the new display is powered up.
Fitment & OEM Interchange
OEM part numbers are listed for cross-reference only. They do not imply that this part was made by the equipment manufacturer. All brand names are used solely to identify compatibility.
| Part No. | Without Dash | Relationship | Engine Platform |
|---|---|---|---|
| 355-9048 | 3559048 | This listing | For Caterpillar machines and engines |
| 459-2220 | 4592220 | Replacement part number — supersedes 355-9048 | For Caterpillar machines and engines |
| 20R-6537 | 20R6537 | Reman number of the replacement 459-2220 | For Caterpillar machines and engines |
Application Chart — Compatible with Caterpillar Equipment
| Equipment Type | Models |
|---|---|
| Industrial Engine | C7, C9, C13, C15, C27, C32, C32B |
| Petroleum Engine | 3126B, 3412E, C-15, C9, C11, C13, C18, C27, C32 |
| Engine | C27 Industrial, C32 Industrial, C32B, C32B Industrial |
| Marine Engine | C280-6, C280-8, C280-12, C280-16 |
| Locomotive Engine | C27, C32, C32B |
| Petroleum Package | CX31, CX31-C11I, CX31-C15I, CX35-P800 |
| Power Package | C7 |
| Wheel Loader | 966D, 966E, 966F, 966F II, 980C, 980F, 980G |
| Wheel Tractor | 621B, 621E, 621F, 623B, 623E, 623F, 627E, 627F, 631D, 633D, 637D |
| Truck | 777B, 777C, 777D |
| Track-Type Tractor | D8R, D10N, D10R |
| Wheel Scraper | 657E |
| Wheel Dozer | 824C |
| Soil Compactor | 815B, 825C |
| Landfill Compactor | 826C |
| Motor Grader | 140G |
| Excavator | M325C |
Confirm Before You Order: 459-2220 is the replacement part number for 355-9048. Fitment is confirmed by the part number on the monitor you are removing rather than by machine model alone, because several Caterpillar monitors share this housing and screen. Send us that part number with photos of the monitor and machine nameplate and we will confirm before you buy.
Technical Specifications
| Part Name | Display Monitor (Electronic Display / Monitor Group) |
| Reference Numbers | 355-9048, 3559048 |
| Condition | Remanufactured |
| Installation Method | Direct replacement |
| Programming | Programmed before dispatch to your machine and monitor part number; no flashing required after arrival |
| System Voltage | Application dependent, confirm on data plate |
| Housing Material | ABS plastic housing with bronze information display screen |
| Connectors | Three 12-pin and two 6-pin connectors; compare with the monitor you are removing |
| Circuit Protection | Application dependent, confirm on data plate |
| Testing | Function-tested before dispatch: powered up, screen, backlight and keypad checked |
| Warranty | 6 months from delivery against defects in materials and workmanship (repair or replacement) |
| Package Contents | 1 × Display monitor |
This module is intended to restore factory-specified performance only. It does not alter, disable or remove any emission control function.
Common Failure Symptoms
| Symptom | What It Usually Points To |
|---|---|
| 980G loader or D8R display screen stays blank at key-on | No power or ground at the display, a blown fuse, or a failed module |
| Backlight is dim and the screen is only readable in shade | Backlight failure inside the display module |
| Gauges read zero or freeze while the engine runs normally | Display has lost data link communication with the machine controllers |
| Screen flickers or resets while the machine is running | Loose connector or unstable supply voltage, or an internal display fault |
| Rows of pixels or segments are missing from the screen | Failed display panel or a cracked internal ribbon connection |
| Buttons or keypad do not respond | Worn keypad contacts or a failed display module |
| Screen shows a communication or data link error message | Wiring or data link fault, or a failed display module |
| Moisture or condensation behind the screen | Seal failure and water intrusion that can corrode the board |
Check the Simple Causes First: Before replacing the monitor, check the fuse, battery voltage and ground, and unplug and inspect the 12-pin and 6-pin connectors for bent pins, corrosion or moisture. These cheaper faults cause many of the same symptoms.
Shipping & Quality Guarantee
- Bench-Tested: Every unit is powered up and function-tested before dispatch.
- Fast Dispatch: Dispatched in 1–3 business days. For this programmed item, the window starts once we receive your monitor part number and nameplate photo.
- Free Express Shipping: Delivered in 3–8 business days by DHL, FedEx or UPS.
- Tracking: Tracking number provided within 24–48 hours of dispatch.
- Protective Packaging: Anti-static bag and padded carton.
- 6-Month Warranty: From delivery, against defects in materials and workmanship.
- 30-Day Returns: Unused items in original packaging; an RMA number is required.
- Technical Support: Send photos of your current monitor and machine nameplate and our team will confirm the match.
Shipping & Customs Notice
Our price covers the product and shipping only. Import duties, VAT, GST and any other local taxes or customs clearance fees are not included and are the buyer’s responsibility.
All trademarks and part numbers are used for compatibility reference only. LIUCHUANG Parts is an independent aftermarket parts supplier and has no official or authorized relationship with any equipment manufacturer.
