206-2700 Engine Control Module ECM for Caterpillar 3126 3126E C-12 D6N 963C 561N
Remanufactured 206-2700 engine control module (ECM), covering Caterpillar 3126, 3126E and C-12 truck engines and D5N, D6N, 953C, 963C and 561N machines.
- Interchangeability: 206-2700 / 2062700
- Application: 3126, 3126E, C-12 truck engines; D5N, D6N tractors; 953C, 963C track loaders; 561N pipelayer; 3126B marine
- Condition: Remanufactured from a tested core, rebuilt at component level and bench-tested
- Check Your Part Number: Several similar CAT ECM references exist — order against the number on your own module’s data plate
$1,299.00
-
Bench-Tested - Every unit powered up and function-tested before dispatch.
-
6-Month Warranty - From delivery, against defects in materials and workmanship.
-
30-Day Returns - Unused items in original packaging. RMA required.
Product Details

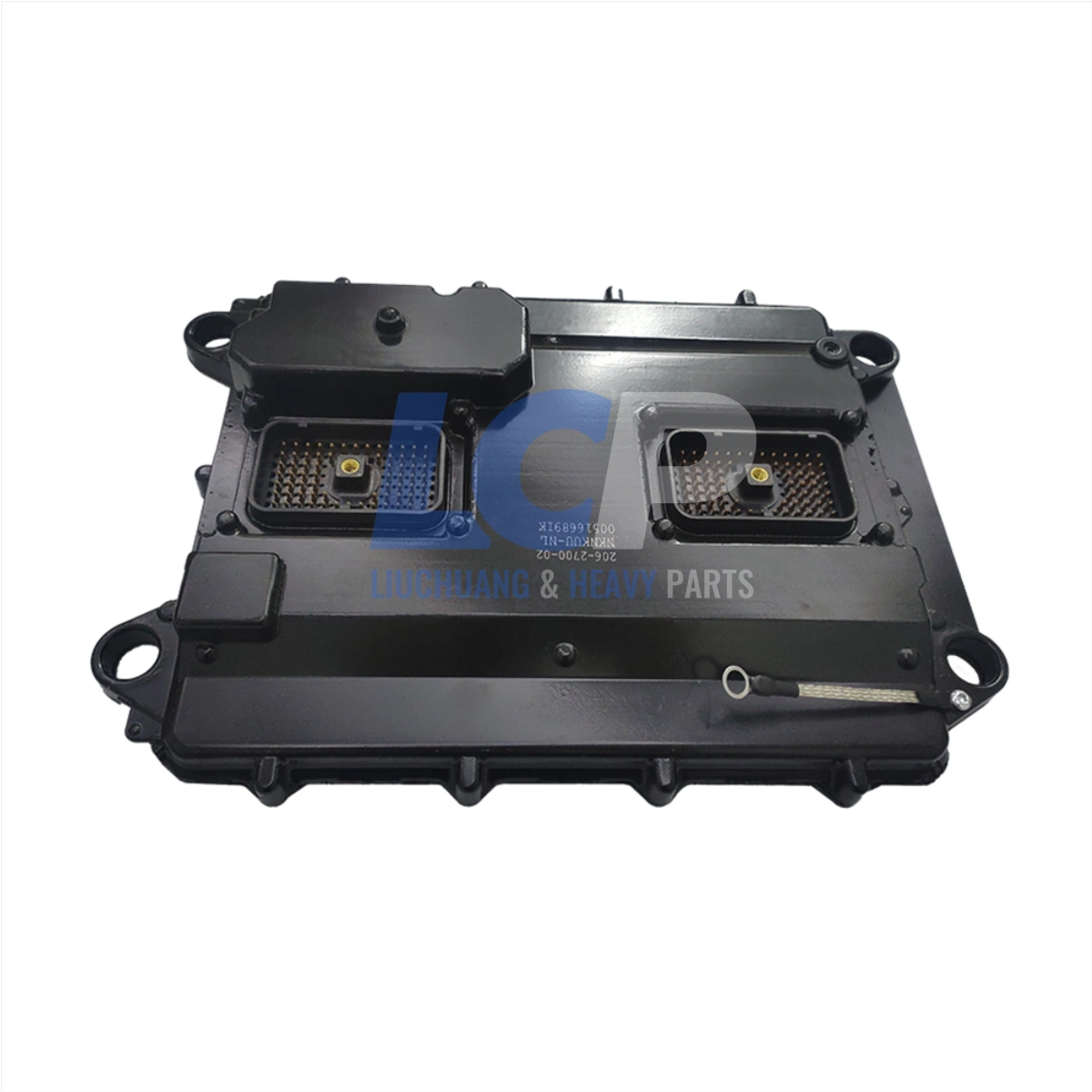

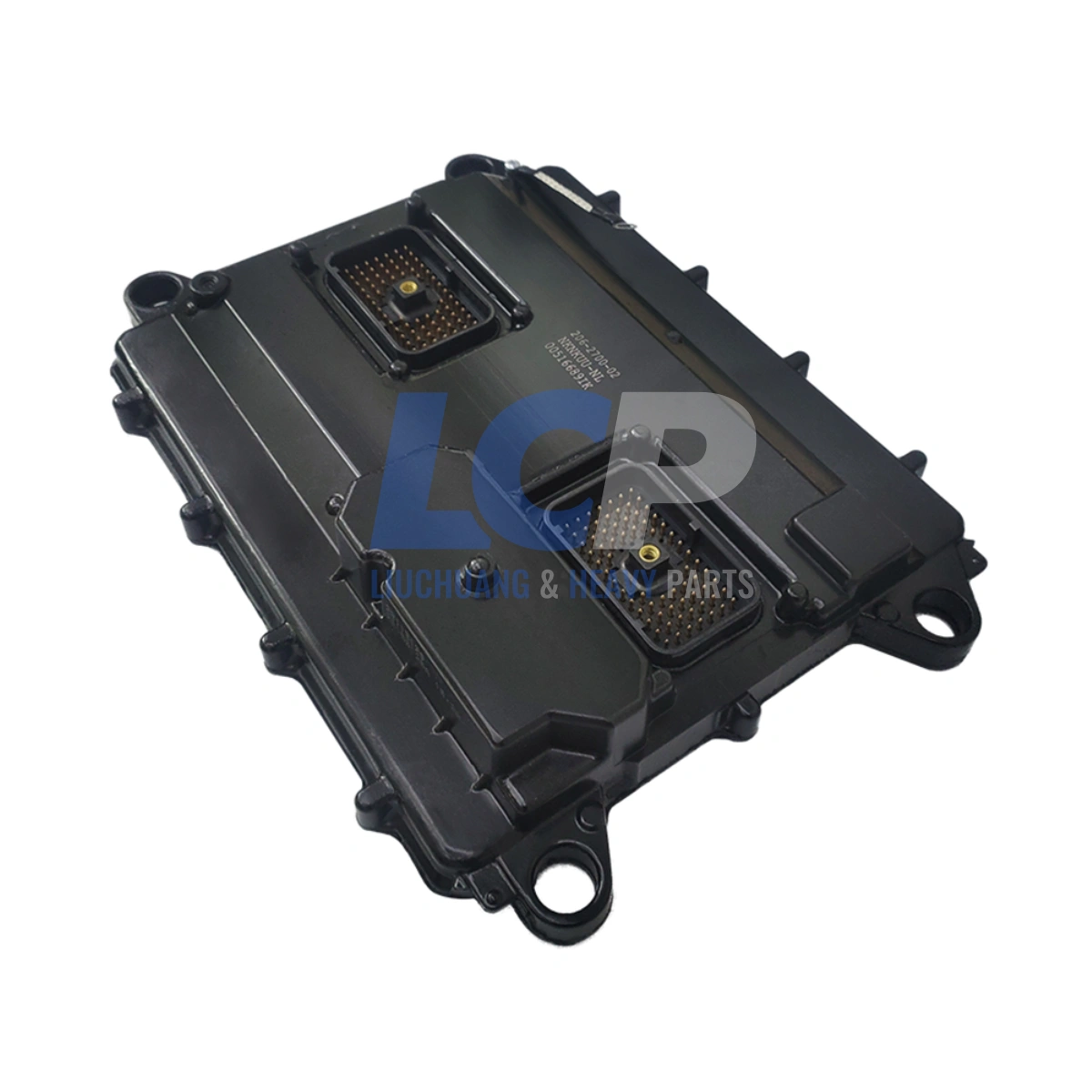

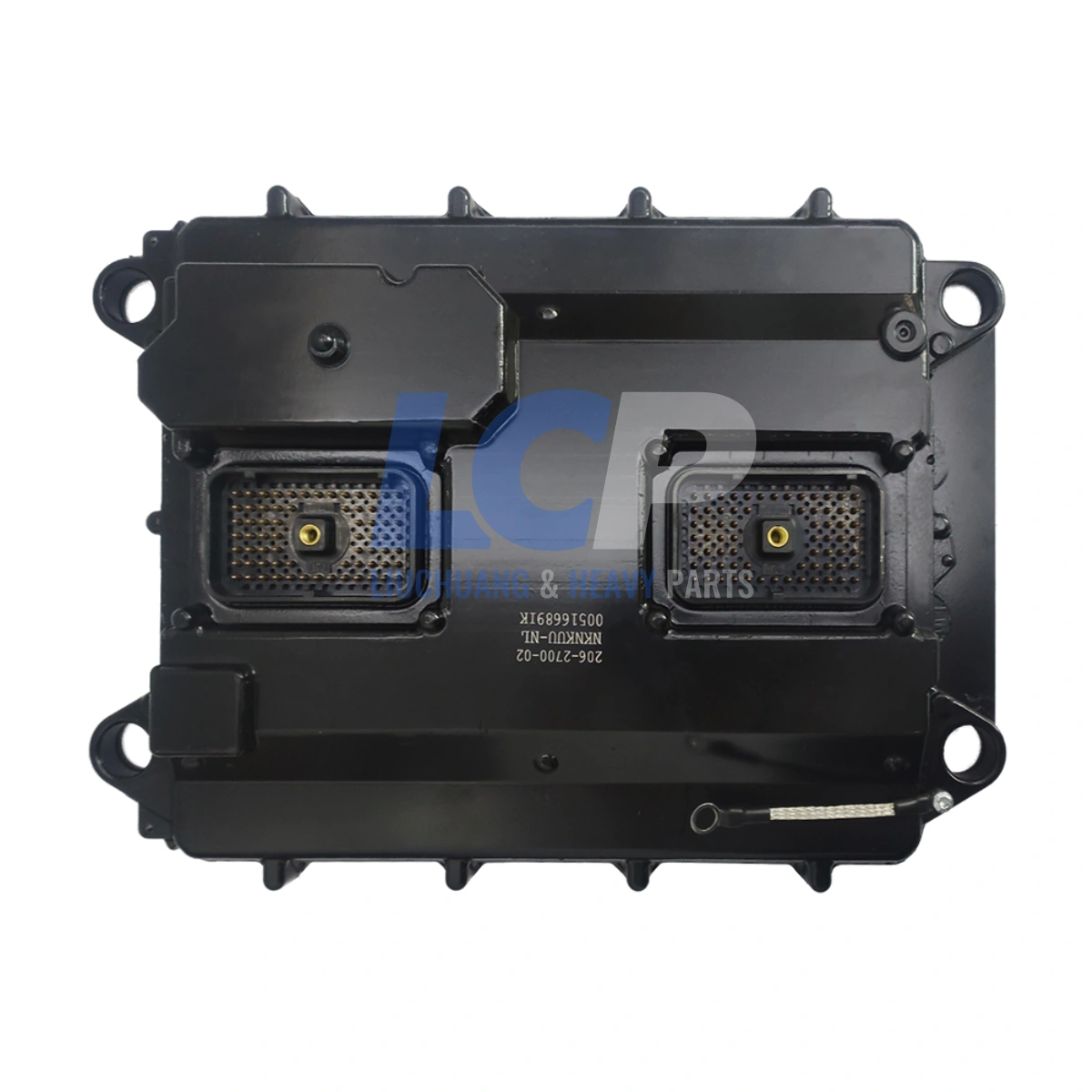

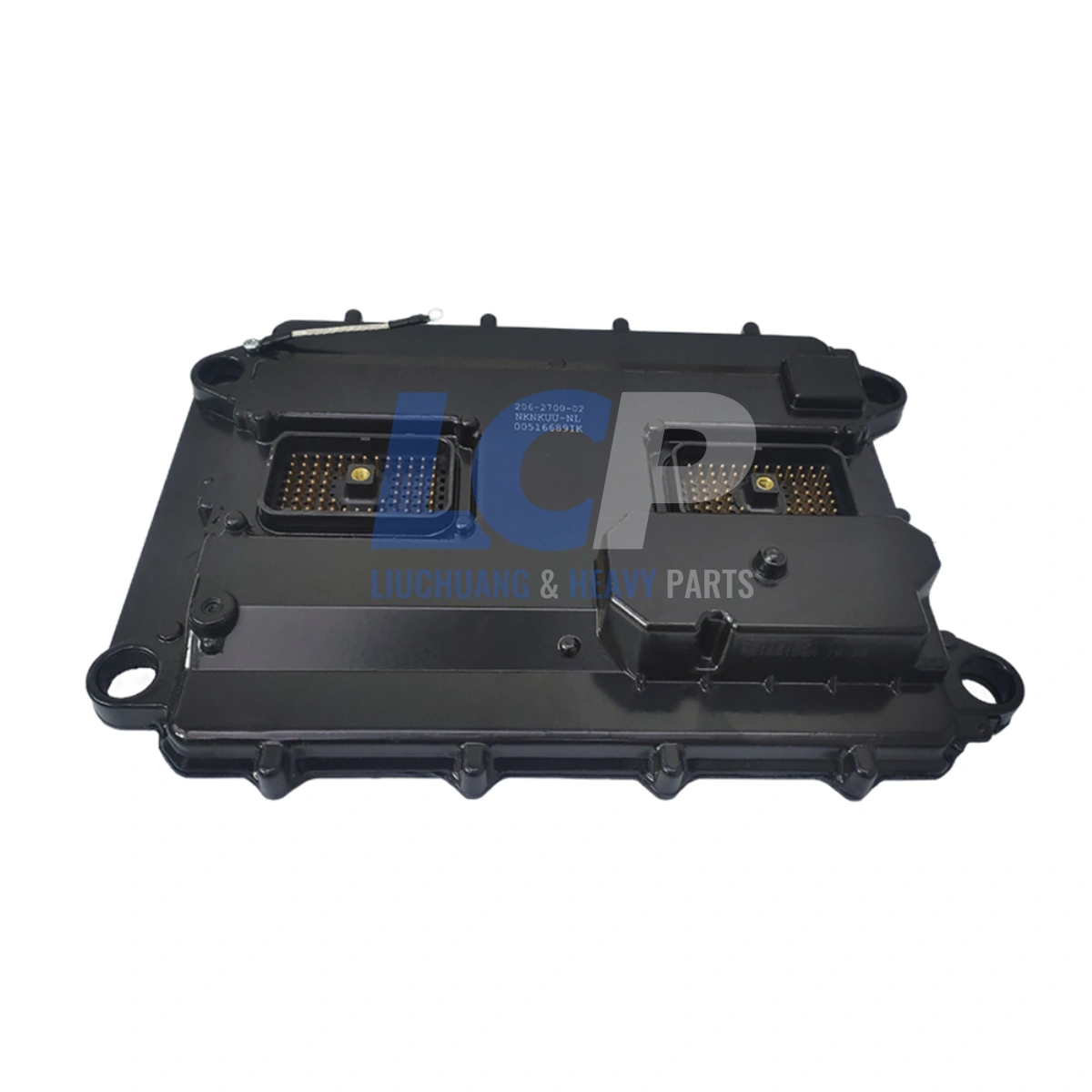

This remanufactured Electronic Engine Control Module (ECM / ECU) is an aftermarket replacement for Caterpillar part number 206-2700, covering 3126, 3126E and C-12 truck engines together with D5N and D6N track-type tractors, 953C and 963C track loaders, the 561N pipelayer and 3126B marine engines.
The useful thing about this reference is what it spans. A contractor running D6N dozers on site and C-12 trucks hauling to it can hold one module on the shelf rather than two, and a mixed fleet that would otherwise need separate spares for earthmoving and haulage is covered by a single part number. For anyone managing downtime across dissimilar machines, that consolidation is worth more than it looks on paper — the module you have in stock is the one that gets fitted the same day.
Each unit begins as a tested core and is rebuilt at component level. The board is cleaned and inspected under magnification, with capacitors, injector driver components and solder joints renewed wherever measurement calls for it. Housing seals and gaskets are replaced, conformal coating is refreshed, and the finished module is bench-tested under simulated load so it will restore factory-specified operating parameters once programmed to your engine.
- Direct replacement fitment — original mounting pattern, connector layout and harness routing, so no wiring modification or bracket fabrication is required.
- One module across mixed fleets — earthmoving and haulage covered by a single reference, simplifying spares holding for contractors running both.
- Track machine coverage — D5N and D6N track-type tractors, 953C and 963C track loaders and the 561N pipelayer.
- Truck engine coverage — 3126, 3126E and C-12 on-highway engines.
- Marine applications — 3126B marine installations.
- Component-level remanufacture — rebuilt from a tested core with renewed electronics, refreshed conformal coating and resealed housing.
- Function-restoring, not performance-altering — supplied to restore original operating parameters; no calibration changes of any kind are made to the unit.
- 6-month warranty — repair or replacement service if any fault appears within the period.
Important: Programming Is Required Before Use
This module is not plug-and-play. Every engine carries its own calibration file, and the unit must be flashed to your specific serial number by a qualified technician using approved diagnostic software before the engine will run correctly. One practical consequence for fleet buyers: a spare held on the shelf cannot be pre-programmed for a machine you have not identified yet, so allow for flashing time when planning a same-day fix.
Please send us the following after purchase:
- Engine Serial Number (ESN) and Vehicle Identification Number (VIN)
- Clear photographs of your current ECM / ECU unit
- A clear photograph of the engine data plate
Installation and removal of an engine control module should always be carried out by an experienced technician. Disconnect the battery before any work begins.
Fitment & OEM Interchange
The following reference numbers are listed for cross-reference and identification purposes only. All trademarks belong to their respective owners.
Match the Number, Not the Machine
Caterpillar used several ECM references across these same engines and machines, and the lists overlap heavily. A D6N or a C-12 truck may take this module or a different one depending on build date, rating and market. Read the number stamped on the data plate of your existing module and order against that number. If your plate does not read 206-2700, send us a clear photograph of it with your engine serial number and we will identify the correct part before you buy.
| Reference Number | 206-2700 / 2062700 |
| Compatible Engine Families | Fits for Caterpillar 3126, 3126B, 3126E, C-12 |
| Condition | Remanufactured — rebuilt from a tested core |
| Installation | Direct replacement — programming required |
Application Chart — Compatible with Caterpillar Engines and Machines
| Category | Models |
|---|---|
| Track-Type Tractor | D5N, D6N |
| Track Loader | 953C, 963C |
| Pipelayer | 561N |
| Truck Engine | 3126, 3126E, C-12 |
| Marine Engine | 3126B |
Buying a shelf spare? If you are stocking this module against future failures rather than fixing a machine today, send us the serial numbers of the machines you intend it to cover. We will tell you whether one unit genuinely serves them all, or whether your fleet spans more than one module variant — better to know before the spare is needed than on the morning a machine is down.
Technical Specifications
| Part Name | Electronic engine control module / engine control unit (ECM / ECU) |
| Reference Numbers | 206-2700, 2062700 |
| Condition | Remanufactured, bench-tested before dispatch |
| Installation Method | Direct replacement — no wiring or bracket modification |
| Programming | Required — must be flashed to your engine serial number |
| Machine Types Covered | Track-type tractors, track loaders, pipelayers, on-highway trucks, marine engines |
| System Voltage | 12V / 24V DC — application dependent, confirm on data plate |
| Housing Material | Die-cast aluminium with sealed gasket interface |
| Connectors | Sealed multi-pin harness connectors, original pin layout |
| Circuit Protection | Conformal-coated PCB, moisture and vibration resistant |
| Rebuild Scope | Capacitors, injector driver components and solder joints renewed as measurement requires; seals replaced; conformal coating refreshed |
| Testing | 100% functional bench test under simulated load |
| Warranty | 6 months — repair or replacement service |
| Package Contents | 1 x engine control module (mounting hardware not included) |
This unit is an emissions-related component. It is supplied to restore factory-specified performance only, and is not modified, re-calibrated or altered in any way.
Common Failure Symptoms
Not every dead ECM died of old age. A significant share of the modules that reach us were killed by something that happened in the workshop or the yard, and those causes are worth knowing about before you fit a replacement into the same conditions.
| Symptom or Situation | What It Usually Points To |
|---|---|
| Module died right after welding on the machine | Welding current finding a path through the electronics. Always disconnect both battery leads and clamp the earth close to the weld. This is one of the most common avoidable causes of ECM failure on construction fleets. |
| Failure following a jump start or boost | Reverse polarity or a voltage spike from a mismatched supply. Check the charging system and battery condition before fitting a replacement, or the new module will meet the same fate. |
| Engine cranks but will not start | No injector drive signal reaching the fuel system; verify power and ground at the module before condemning it. |
| Faults persist after a previous module swap | Often an incomplete or incorrect flash rather than a second failed module. Confirm the calibration matches the engine serial number and rating before assuming the replacement is faulty. |
| Same fault appearing on several machines | Rarely a module problem. Look for a shared cause — a fuel delivery, a batch of filters, or a workshop practice affecting the whole fleet. |
| No communication with diagnostic software | Data link failure between the module and the service tool; check the connector and harness continuity first. |
| Repeat injector driver fault codes | Output driver stage failure — codes return on multiple cylinders after new injectors are fitted. |
| Erratic or impossible sensor readings | Degraded internal reference voltage causing false pressure or temperature values across several channels at once. |
Before fitting the replacement, fix what killed the last one. If the previous module failed after welding, a jump start or a charging fault, the same conditions will take out the new one. Check the charging system output, both battery leads, the ground straps and the harness for chafing, and make sure your workshop disconnects the batteries before any welding. A module is not a cheap consumable to lose twice.
Shipping & Quality Guarantee
- 100% quality control — every module is functionally bench-tested and visually inspected before it leaves our facility.
- Dispatch in 1–3 business days via DHL, UPS or FedEx express, with tracking provided within 24–48 hours.
- Protective packaging — anti-static bag, foam-cushioned carton, sealed against moisture for international transit.
- 6-month warranty — if a fault arises within the period, we provide repair or replacement service.
- Technical support — send us your ESN, VIN and data plate photo and our team will confirm fitment before and after purchase.
Shipping & Customs Notice
The listed price covers the product, shipping and handling only. It does not include import duty, VAT, GST or any local taxes or customs clearance charges. Any such fees are levied by your national customs authority and remain the buyer’s responsibility. Please check your local import regulations before ordering.
All brand names, part numbers and model designations are used for identification and cross-reference purposes only. This product is manufactured and tested to aftermarket replacement standards and is not associated with, sponsored by or endorsed by any vehicle or engine manufacturer. All trademarks are the property of their respective owners.
