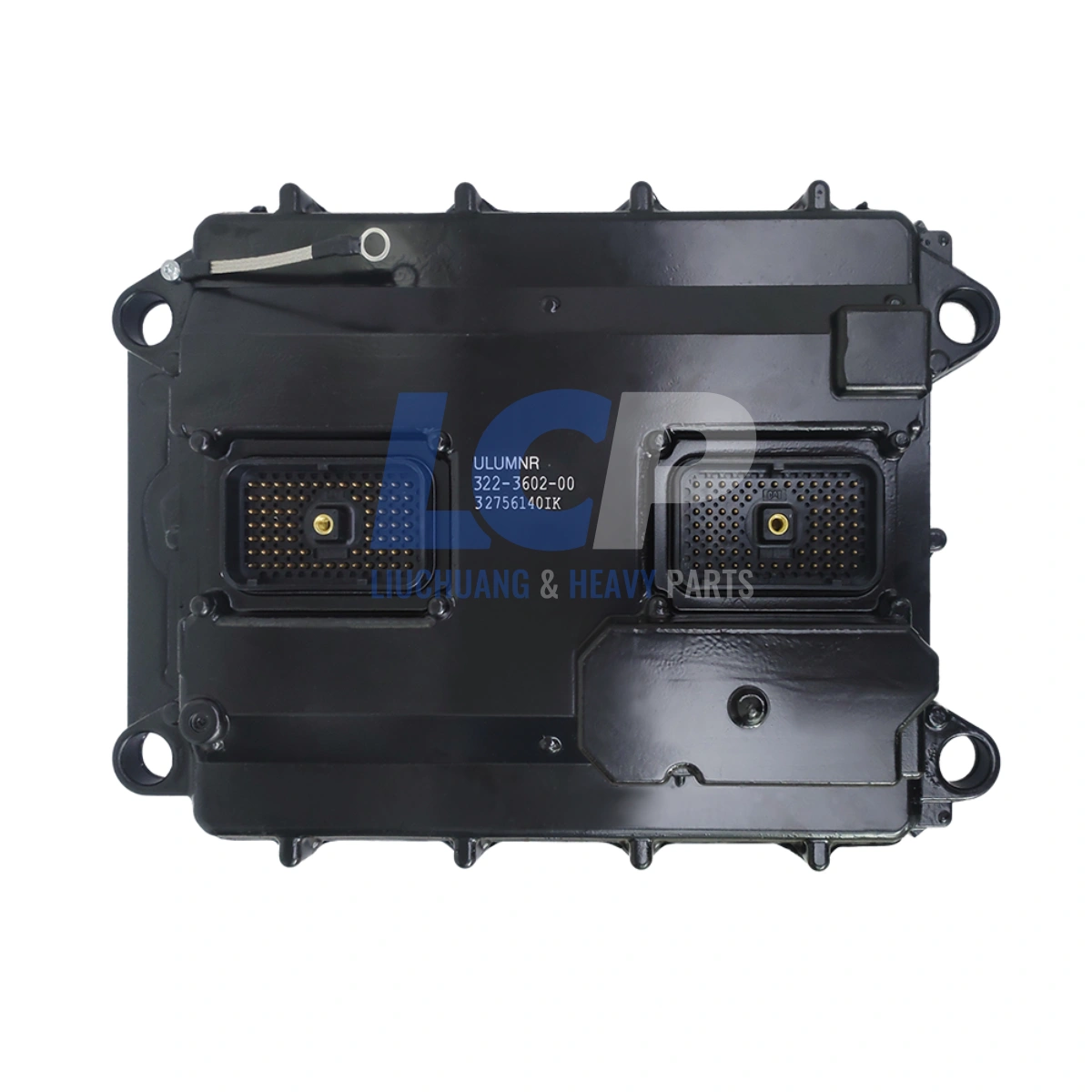

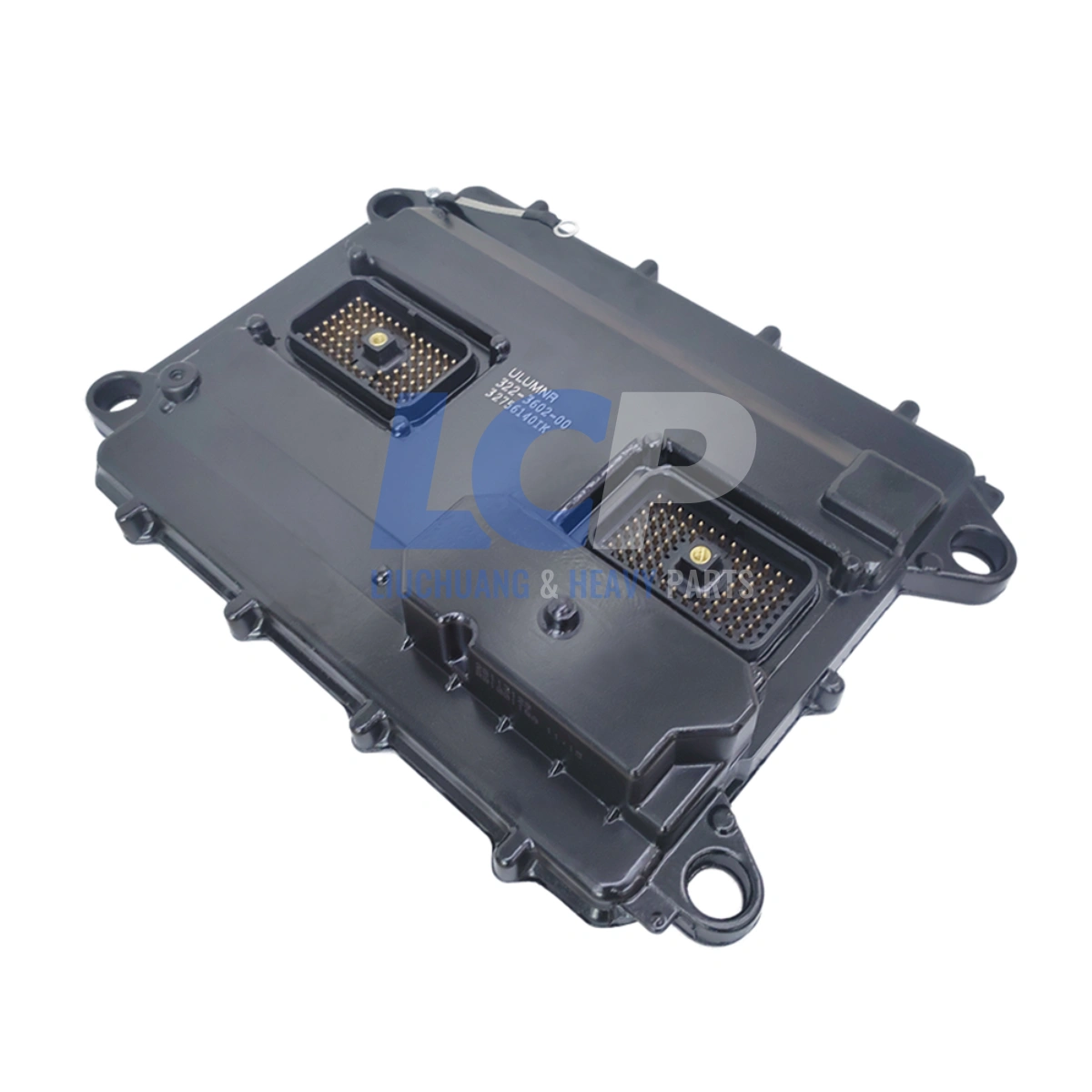

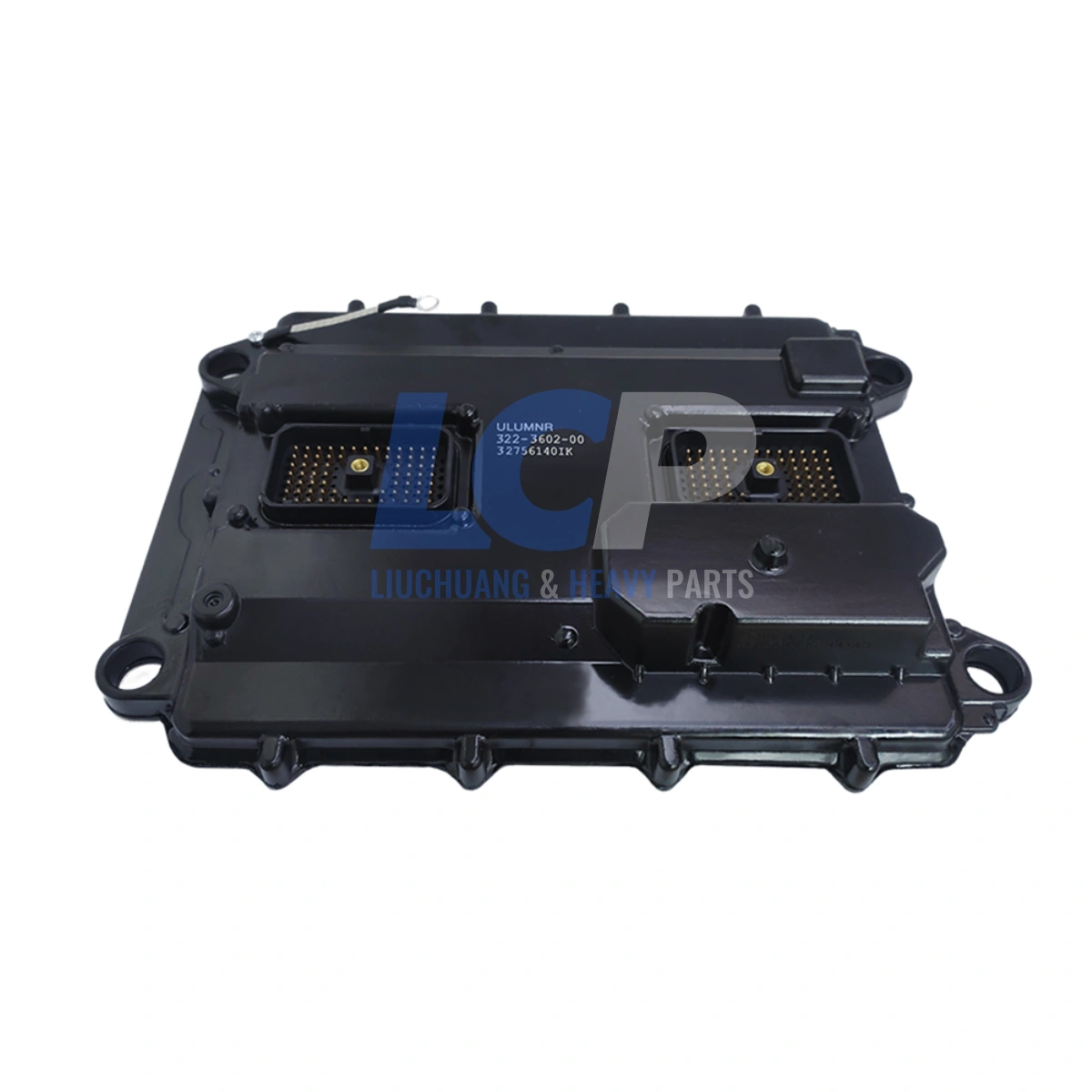

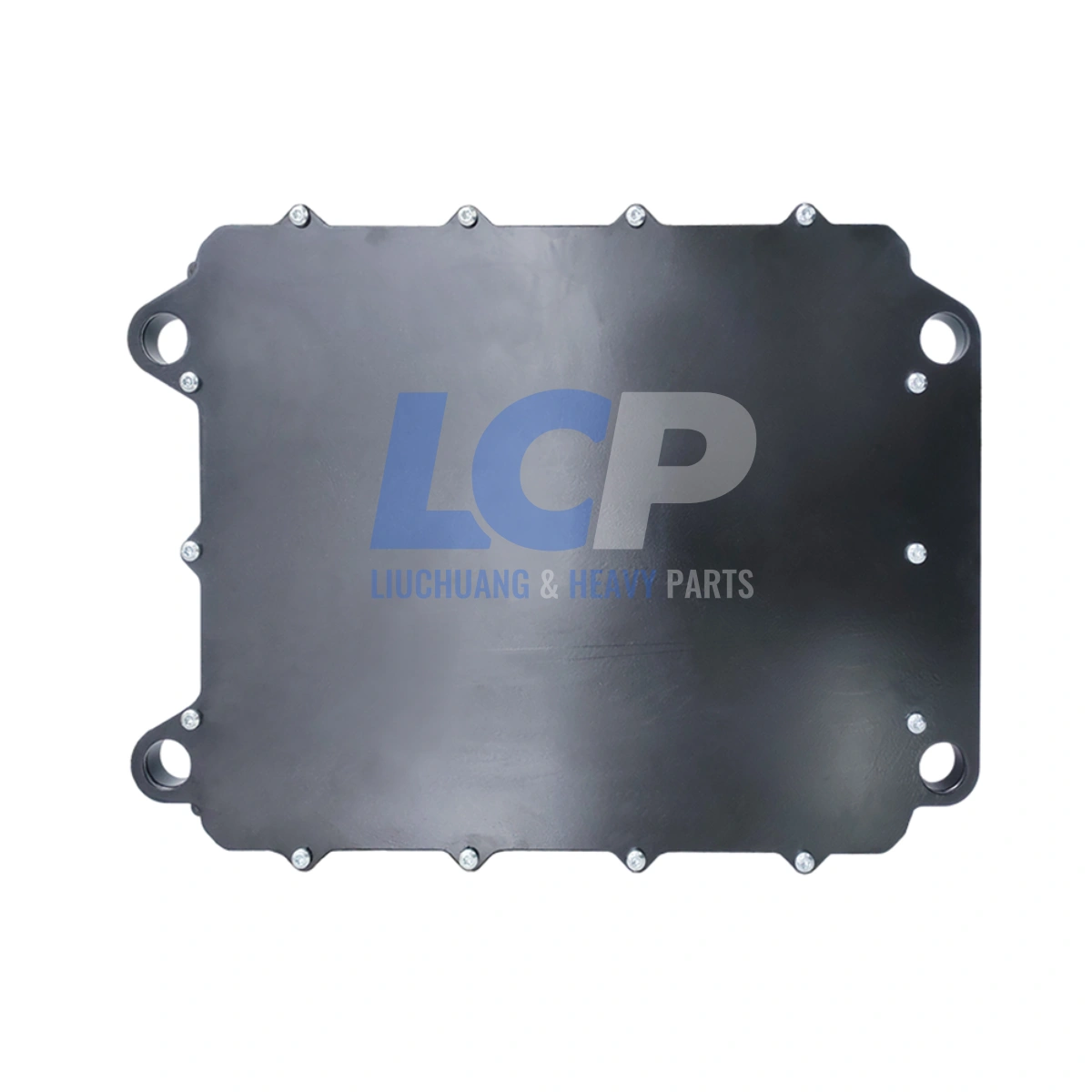

322-3602 Engine Control Module ECM for Caterpillar C-12 C-15 D6N 953C 963C 561N
Remanufactured 322-3602 engine control module (ECM), fits for Caterpillar C-series truck engines and D5N, D6N, 953C, 963C and 561N machines.
- Interchangeability: 322-3602 / 3223602
- Application: 3126–C-18 truck engines; D5N, D6N tractors; 953C, 963C track loaders; 561N pipelayer; 3126B, C7, C15, C18 marine
- Condition: Remanufactured from a tested core, rebuilt at component level and bench-tested
- Check Your Part Number: Several similar CAT ECM references exist — order against the number on your own module’s data plate
$1,199.00
-
Bench-Tested - Every unit powered up and function-tested before dispatch.
-
6-Month Warranty - From delivery, against defects in materials and workmanship.
-
30-Day Returns - Unused items in original packaging. RMA required.
Product Details
This remanufactured Electronic Engine Control Module (ECM / ECU) is an aftermarket replacement for Caterpillar part number 322-3602, covering the 3126 and C-series engine range across on-highway trucks, D5N and D6N track-type tractors, 953C and 963C track loaders, the 561N pipelayer and marine installations.
On a tracked machine the ECM works in conditions that are harder than anything a truck sees. Undercarriage vibration is constant and unforgiving, the engine bay runs hot with limited airflow, and dust ingress is a daily fact of life rather than an occasional event. Modules on D6N tractors and 963C loaders accumulate fatigue faster than the same part in a highway application, which is why they turn up in the reman stream at higher rates and lower hours.
Each unit begins as a tested core and is rebuilt at component level. The board is cleaned and inspected under magnification, with capacitors, injector driver components and solder joints renewed wherever measurement calls for it. Housing seals and gaskets are replaced — a point that matters more on tracked machines, where a marginal seal admits dust as readily as moisture. Conformal coating is refreshed, and the finished module is bench-tested under simulated load so it will restore factory-specified operating parameters once programmed to your engine.
- Direct replacement fitment — original mounting pattern, connector layout and harness routing, so no wiring modification or bracket fabrication is required.
- Track machine coverage — D5N and D6N track-type tractors, 953C and 963C track loaders and the 561N pipelayer.
- Full truck engine range — 3126, 3126B, 3126E and C7, C-10, C-12, C-15, C-16 and C-18 on-highway engines.
- Marine and gen set applications — 3126B, C7, C15 and C18 marine engines, plus 3126B and C-12 gen set engines.
- Component-level remanufacture — rebuilt from a tested core with renewed electronics, refreshed conformal coating and resealed housing.
- Sealed against dust as well as moisture — housing gaskets replaced during rebuild, which matters on machines working in continuous dust.
- Function-restoring, not performance-altering — supplied to restore original operating parameters; no calibration changes of any kind are made to the unit.
- 6-month warranty — repair or replacement service if any fault appears within the period.
Important: Programming Is Required Before Use
This module is not plug-and-play. Every engine carries its own calibration file, and the unit must be flashed to your specific serial number by a qualified technician using approved diagnostic software before the engine will run correctly. A module configured for a highway truck will not run a D6N correctly even though both are covered by this reference — the application settings differ.
Please send us the following after purchase:
- Engine Serial Number (ESN) and Vehicle Identification Number (VIN)
- Clear photographs of your current ECM / ECU unit
- A clear photograph of the engine data plate
Installation and removal of an engine control module should always be carried out by an experienced technician. Lower any raised implement, disconnect the battery and isolate the machine before any work begins.
Fitment & OEM Interchange
The following reference numbers are listed for cross-reference and identification purposes only. All trademarks belong to their respective owners.
Order Against Your Own Data Plate, Not the Machine Model
Several Caterpillar ECM references cover overlapping ranges of the same engines and machines, and they are not always interchangeable with one another. The machine model on its own will not tell you which module your unit takes. Read the number stamped on the data plate of your existing module and order against that. If it is not 322-3602, send us a clear photograph of the plate together with your engine serial number and we will identify the correct part before you buy.
| Reference Number | 322-3602 / 3223602 |
| Compatible Engine Families | Fits for Caterpillar 3126, 3126B, 3126E, C7, C-10, C-12, C-15, C-16, C-18 |
| Condition | Remanufactured — rebuilt from a tested core |
| Installation | Direct replacement — programming required |
Application Chart — Compatible with Caterpillar Engines and Machines
| Category | Models |
|---|---|
| Track-Type Tractor | D5N, D6N |
| Track Loader | 953C, 963C |
| Pipelayer | 561N |
| Truck Engine | 3126, 3126B, 3126E, C7, C-10, C-12, C-15, C-16 (C16), C-18 (C18) |
| Marine Engine | 3126B, C7, C15, C18 |
| Gen Set Engine | 3126B, C-12 |
Before ordering: the 3126 and C-series families ran across many build years, power ratings and emissions specifications, and a single engine designation can carry more than one module variant. Send us your data plate photograph and engine serial number and we will confirm fitment before you buy — it takes a few minutes and avoids a return on a part that has to be programmed before it can be tested.
Technical Specifications
| Part Name | Electronic engine control module / engine control unit (ECM / ECU) |
| Reference Numbers | 322-3602, 3223602 |
| Condition | Remanufactured, bench-tested before dispatch |
| Installation Method | Direct replacement — no wiring or bracket modification |
| Programming | Required — must be flashed to your engine serial number |
| Machine Types Covered | Track-type tractors, track loaders, pipelayers, on-highway trucks, marine and gen set engines |
| System Voltage | 12V / 24V DC — application dependent, confirm on data plate |
| Housing Material | Die-cast aluminium with sealed gasket interface |
| Connectors | Sealed multi-pin harness connectors, original pin layout |
| Circuit Protection | Conformal-coated PCB, dust, moisture and vibration resistant |
| Rebuild Scope | Capacitors, injector driver components and solder joints renewed as measurement requires; housing gaskets replaced; conformal coating refreshed |
| Testing | 100% functional bench test under simulated load |
| Warranty | 6 months — repair or replacement service |
| Package Contents | 1 x engine control module (mounting hardware not included) |
This unit is an emissions-related component. It is supplied to restore factory-specified performance only, and is not modified, re-calibrated or altered in any way.
Common Failure Symptoms
A failing engine control module rarely dies all at once. These are the patterns reported most often on tracked machines and vocational trucks, and the checks worth running first.
| Symptom | What It Usually Points To |
|---|---|
| Faults appear on rough ground, clear on smooth | Vibration-triggered. On a tracked machine this is usually a fatigued solder joint inside the module or a loose connector pin. Wiggle-test the connector with the engine running before ordering a replacement. |
| Engine cranks but will not start | No injector drive signal reaching the fuel system; verify power and ground at the module before condemning it. |
| Dust packed into the connector | A degraded housing seal on a machine working in continuous dust. Fine material bridges pins and causes faults that come and go with humidity. Inspect before assuming a board fault. |
| Loss of power on grade or under load | A failing module acting on corrupted boost or rail pressure input. Rule out fuel filters, air restriction and turbo condition first, since all three produce the same complaint on a loaded dozer. |
| No communication with diagnostic software | Data link failure between the module and the service tool; check the connector and harness continuity first. |
| Shutdown after several hours of work | Heat-related internal supply failure. A machine that runs all morning and quits after lunch is describing a thermal fault, not an electrical one — note how long it takes and whether it restarts once cool. |
| Repeat injector driver fault codes | Output driver stage failure — codes return on multiple cylinders after new injectors are fitted. |
| Erratic or impossible sensor readings | Degraded internal reference voltage causing false pressure or temperature values across several channels at once. |
On a tracked machine, the harness fails before the module does. Battery condition, ground straps, charging voltage and corroded pins imitate module failure far more often than the module itself, and on a dozer or track loader the loom takes constant abuse from vibration, dust and the occasional branch. Faults that track with machine movement or ground conditions are almost always wiring. Confirm with a full diagnostic scan before replacing.
Shipping & Quality Guarantee
- 100% quality control — every module is functionally bench-tested and visually inspected before it leaves our facility.
- Dispatch in 1–3 business days via DHL, UPS or FedEx express, with tracking provided within 24–48 hours.
- Protective packaging — anti-static bag, foam-cushioned carton, sealed against moisture for international transit.
- 6-month warranty — if a fault arises within the period, we provide repair or replacement service.
- Technical support — send us your ESN, VIN and data plate photo and our team will confirm fitment before and after purchase.
Shipping & Customs Notice
The listed price covers the product, shipping and handling only. It does not include import duty, VAT, GST or any local taxes or customs clearance charges. Any such fees are levied by your national customs authority and remain the buyer’s responsibility. Please check your local import regulations before ordering.
All brand names, part numbers and model designations are used for identification and cross-reference purposes only. This product is manufactured and tested to aftermarket replacement standards and is not associated with, sponsored by or endorsed by any vehicle or engine manufacturer. All trademarks are the property of their respective owners.
