239-3879 2393879 Reman Engine Control Module ECM for Caterpillar 3126E Truck Engine

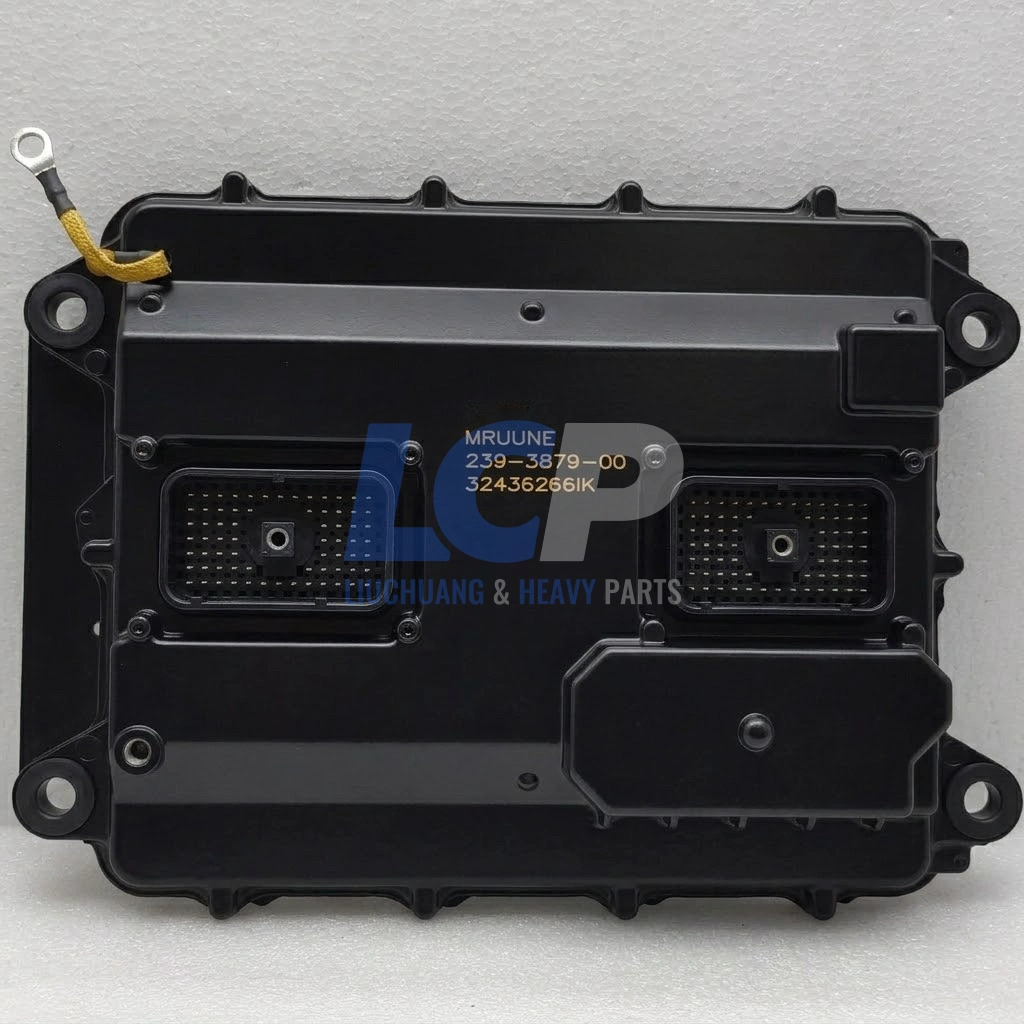

Remanufactured 239-3879 engine control module (ECM), built specifically for the Caterpillar 3126E truck engine.
- Interchangeability: 239-3879 / 2393879
- Application: 3126E truck engine — a single application, so fitment is simple to confirm
- Condition: Remanufactured from a tested core, rebuilt at component level and bench-tested under simulated load
- Programming Required: Module must be flashed to your engine serial number — send us your ESN, VIN and data plate photo after purchase
$1,299.00
-
Bench-Tested - Every unit powered up and function-tested before dispatch.
-
6-Month Warranty - From delivery, against defects in materials and workmanship.
-
30-Day Returns - Unused items in original packaging. RMA required.
Product Details
This remanufactured Electronic Engine Control Module (ECM / ECU) is an aftermarket replacement for Caterpillar part number 239-3879, built for one application only: the 3126E truck engine.
Most Caterpillar ECM references cover a dozen engine families and scores of machine variants, which means most of the work of buying one is making sure you have the right one. This is not one of those. A single application means a single question: is your engine a 3126E, and does the plate on your module read 239-3879? If both are yes, this is the part.
The 3126E is a medium-duty engine, and the vehicles it sits in reflect that — school buses, box trucks, fire apparatus, service bodies, motorhomes. These are vehicles where downtime is measured in missed routes, cancelled jobs or a trip that does not happen, rather than in lost freight revenue. The module is often the last electronic obstacle between a mechanically sound engine and another season of service.
Each unit begins as a tested core and is rebuilt at component level. The board is cleaned and inspected under magnification, with capacitors, injector driver components and solder joints renewed wherever measurement calls for it. Housing seals and gaskets are replaced, conformal coating is refreshed, and the finished module is bench-tested under simulated load so it will restore factory-specified operating parameters once programmed to your engine.
- Single application — 3126E truck engine only, which makes fitment simpler to confirm than on any multi-engine reference.
- Direct replacement fitment — original mounting pattern, connector layout and harness routing, so no wiring modification or bracket fabrication is required.
- Component-level remanufacture — rebuilt from a tested core with renewed electronics, refreshed conformal coating and resealed housing.
- Bench-tested under simulated load — not just powered up, but exercised before it is packed.
- Sealed and vibration-resistant housing — die-cast aluminium enclosure with sealed connectors, built for engine-bay heat, moisture and continuous vibration.
- Function-restoring, not performance-altering — supplied to restore original operating parameters; no calibration changes of any kind are made to the unit.
- 6-month warranty — repair or replacement service if any fault appears within the period.
Important: Programming Is Required Before Use
This module is not plug-and-play. Even with a single engine application, the 3126E was supplied in several power ratings and vehicle configurations, and the unit must be flashed to your specific serial number by a qualified technician using approved diagnostic software before the engine will run correctly.
Please send us the following after purchase:
- Engine Serial Number (ESN) and Vehicle Identification Number (VIN)
- Clear photographs of your current ECM / ECU unit
- A clear photograph of the engine data plate
Installation and removal of an engine control module should always be carried out by an experienced technician. Disconnect the battery before any work begins.
Fitment & OEM Interchange
The following reference numbers are listed for cross-reference and identification purposes only. All trademarks belong to their respective owners.
| Reference Number | 239-3879 / 2393879 |
| Engine Application | Fits for Caterpillar 3126E truck engine |
| Condition | Remanufactured — rebuilt from a tested core |
| Installation | Direct replacement — programming required |
Two-Step Fitment Check
| Step | Check |
|---|---|
| 1 | Read the engine data plate. It should identify the engine as a 3126E. A 3126 or 3126B is a different specification and takes a different module. |
| 2 | Read the label on your existing module. It should read 239-3879 or 2393879. If it reads something else, send us a photo and we will identify the correct part. |
If your engine is a 3126 or 3126B rather than a 3126E, this is not your module — those variants take different references. Send us your engine serial number and a photograph of your existing module’s data plate and we will point you to the right one. The three designations look similar on paper but are not interchangeable.
Technical Specifications
| Part Name | Electronic engine control module / engine control unit (ECM / ECU) |
| Reference Numbers | 239-3879, 2393879 |
| Engine Application | 3126E truck engine — single application |
| Condition | Remanufactured, bench-tested before dispatch |
| Installation Method | Direct replacement — no wiring or bracket modification |
| Programming | Required — must be flashed to your engine serial number |
| Typical Vehicle Types | Medium-duty trucks, buses, fire apparatus, service bodies, motorhomes |
| System Voltage | 12V / 24V DC — application dependent, confirm on data plate |
| Housing Material | Die-cast aluminium with sealed gasket interface |
| Connectors | Sealed multi-pin harness connectors, original pin layout |
| Circuit Protection | Conformal-coated PCB, moisture and vibration resistant |
| Rebuild Scope | Capacitors, injector driver components and solder joints renewed as measurement requires; seals replaced; conformal coating refreshed |
| Testing | 100% functional bench test under simulated load |
| Warranty | 6 months — repair or replacement service |
| Package Contents | 1 x engine control module (mounting hardware not included) |
This unit is an emissions-related component. It is supplied to restore factory-specified performance only, and is not modified, re-calibrated or altered in any way.
Common Failure Symptoms
The ECM does more than run the engine. It also broadcasts the data the dash, the cruise control and any body systems depend on, which is why some module faults show up as electrical complaints rather than driveability ones. Both kinds are worth recognising.
| Symptom | What It Usually Points To |
|---|---|
| Dash gauges or speedometer drop out while driving | The engine runs but the dash goes blank or erratic. This is a data broadcast fault rather than an engine fault — check the data link wiring and connector before condemning the module, since a chafed link produces the same result. |
| Cruise control or PTO stops working | Engine otherwise normal, but a function that depends on module outputs has gone. Verify the switch and its wiring first — on a vehicle of this age those circuits have often been modified by body builders or previous owners. |
| Codes logged with no complaint from the driver | Early-stage degradation. Intermittent codes that log but do not yet affect running often precede a hard failure by weeks. Worth acting on before a route is missed rather than after. |
| Engine cranks but will not start | No injector drive signal reaching the fuel system; verify power and ground at the module before condemning it. |
| Hard starting after injector work | Check the injector harness connections and torque before suspecting the module. A connector disturbed during the job is far more likely than a module that failed on the same afternoon. |
| Repeat injector driver fault codes | Output driver stage failure — codes return on multiple cylinders after new injectors are fitted. |
| No communication with diagnostic software | Data link failure between the module and the service tool; check the connector and harness continuity first. |
| Corrosion or moisture inside the connector | Failed housing seal allowing water ingress onto the board — common on vehicles that see regular washdown or road salt. |
Rule out the cheap causes first. Battery condition, ground straps, charging voltage, harness chafing and corroded pins imitate module failure far more often than the module itself. On buses, fire apparatus and service bodies there is an extra layer to check: the body builder’s wiring. Aftermarket circuits spliced into the chassis harness are a frequent source of faults that look like the ECM but are not. Confirm with a full diagnostic scan before replacing.
Shipping & Quality Guarantee
- 100% quality control — every module is functionally bench-tested and visually inspected before it leaves our facility.
- Dispatch in 1–3 business days via DHL, UPS or FedEx express, with tracking provided within 24–48 hours.
- Protective packaging — anti-static bag, foam-cushioned carton, sealed against moisture for international transit.
- 6-month warranty — if a fault arises within the period, we provide repair or replacement service.
- Technical support — send us your ESN, VIN and data plate photo and our team will confirm fitment before and after purchase.
Shipping & Customs Notice
The listed price covers the product, shipping and handling only. It does not include import duty, VAT, GST or any local taxes or customs clearance charges. Any such fees are levied by your national customs authority and remain the buyer’s responsibility. Please check your local import regulations before ordering.
All brand names, part numbers and model designations are used for identification and cross-reference purposes only. This product is manufactured and tested to aftermarket replacement standards and is not associated with, sponsored by or endorsed by any vehicle or engine manufacturer. All trademarks are the property of their respective owners.
