240-5313 10R-4093 ECM ECU Engine Controller for Caterpillar CAT 330C D6R II C9
240-5313 / 10R-4093 ECM controller for Caterpillar C9 engine applications.
- Interchangeability: Replaces 240-5313 (2405313) / 10R-4093 (10R4093); interchanges with 196-4172, 322-3608, 348-2383.
- Application: Fits for 330C excavators, D6R II tractors, TK711 / TK722 / TK732 feller bunchers, 627G / 637G scrapers and MT700-series track tractors.
- Check Your Part Number: Your ECM label should show one of the numbers above; if not, send us a photo first.
- Programmed Before Dispatch: Send your ESN and VIN after checkout — we flash it to your engine before shipping.
$1,499.00
-
Bench-Tested - Every unit powered up and function-tested before dispatch.
-
6-Month Warranty - From delivery, against defects in materials and workmanship.
-
30-Day Returns - Unused items in original packaging. RMA required.
Product Details

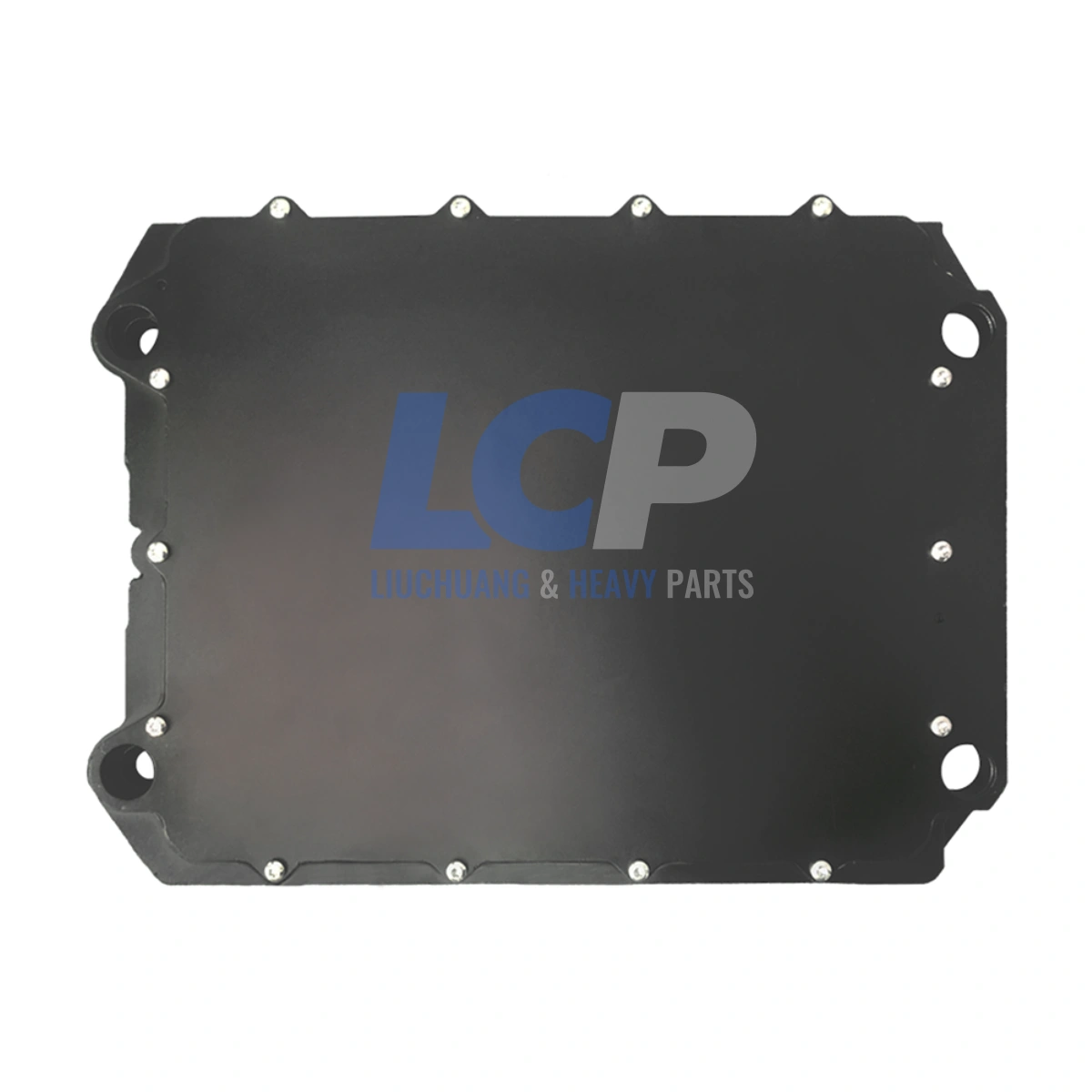

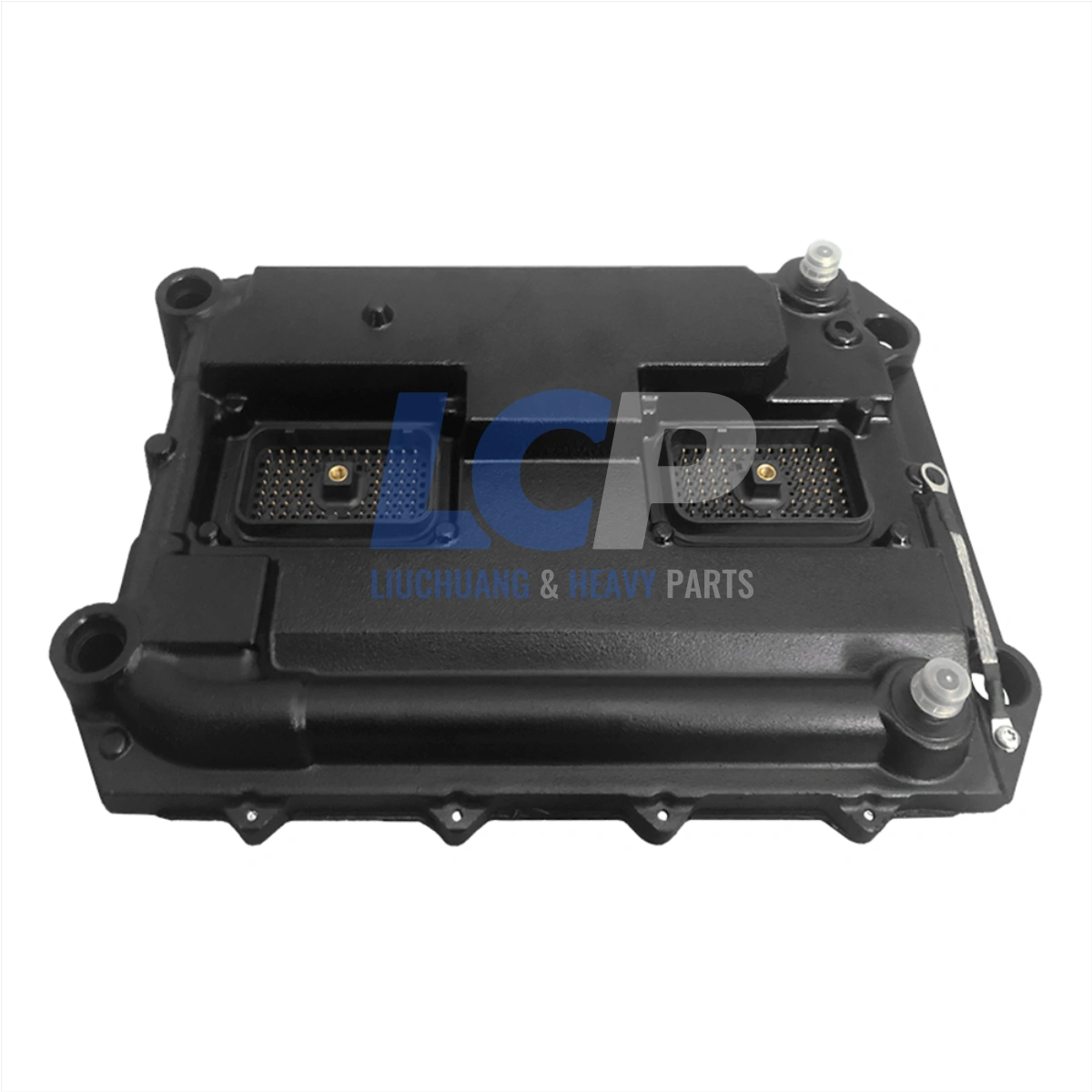

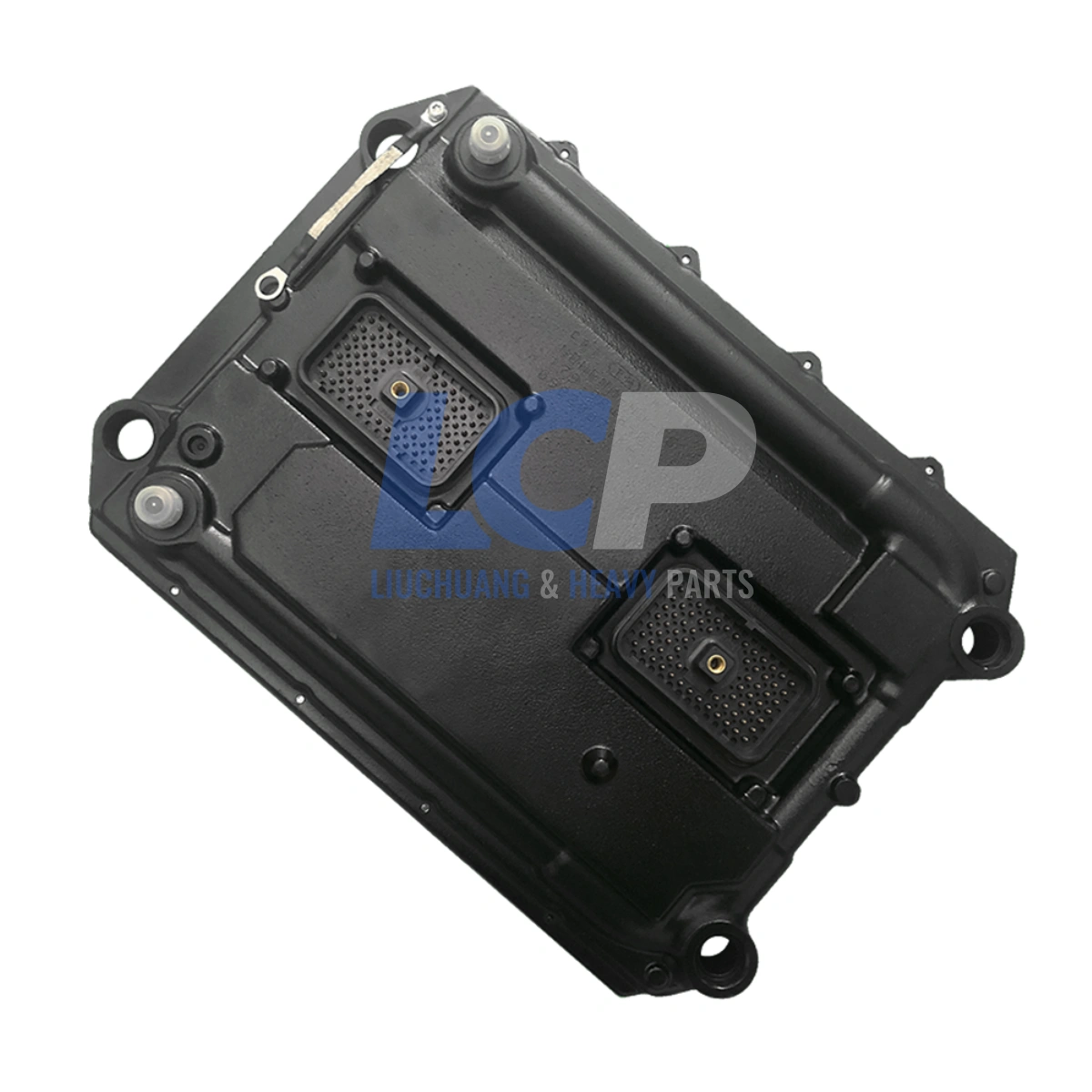

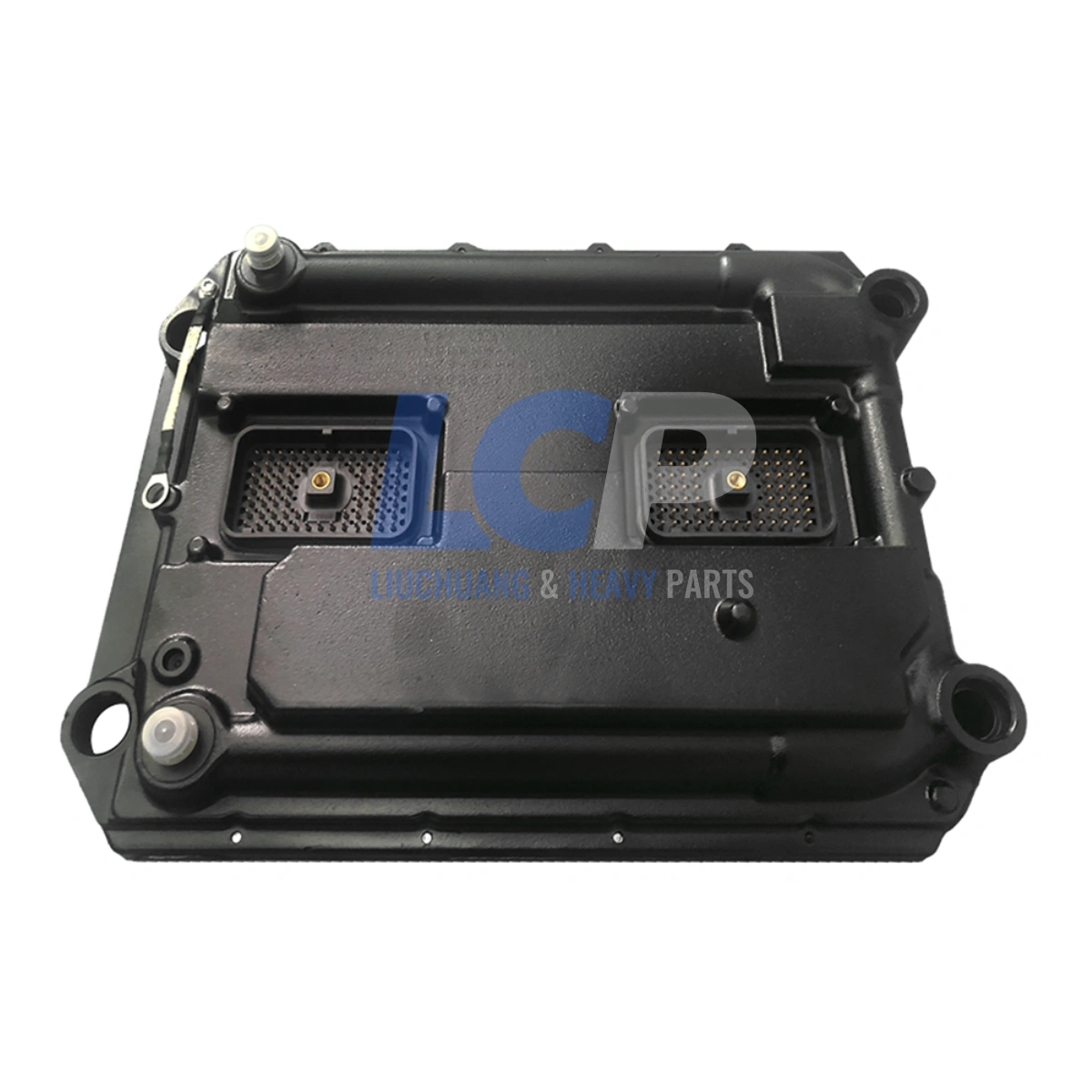

This electronic Engine Control Module (ECM / ECU / CPU controller) is an aftermarket replacement for Caterpillar part numbers 240-5313 (2405313) and 10R-4093 (10R4093), fitted to C9 engines in 330C excavators, D6R II track-type tractors, TK700-series track feller bunchers, 627G / 637G wheel scrapers and MT700-series track tractors.
During remanufacturing the circuit board is inspected under magnification, failed or heat-stressed components are replaced, and the housing seals and connector pins are checked for moisture damage. Every module is then powered up on a test bench to confirm it restores original operating parameters.
- Reference Numbers: 240-5313, 2405313, 10R-4093, 10R4093
- Interchange Numbers: 196-4172 / 1964172, 322-3608 / 3223608, 348-2383 / 3482383
- Engine Platform: For Caterpillar C9 / C-9 engine applications
- Installation: Direct replacement; mounts and plugs in like the unit being removed
- Programming: Programmed to your engine before dispatch using your ESN and VIN
- Testing: Every unit powered up and function-tested before dispatch
- Warranty: 6 months from delivery, with repair or replacement for defects in materials and workmanship
Send Us Your ESN and VIN — We Program The Module Before It Ships
This ECM does not reach you blank. We program it in-house to match your specific engine, so it arrives ready to install with no flashing needed on your side. Our 1–3 business day dispatch window starts from the moment we receive your complete engine information, not from the order date. The sooner you send it, the sooner your module ships.
Please send the following after checkout:
- Engine Serial Number (ESN)
- Vehicle Identification Number (VIN) / machine serial number
- A clear photo of the part number label on your current ECM
- A clear photo of the engine data plate
Installation Notes: We recommend having an experienced heavy-equipment technician fit this module. Always disconnect the battery first, inspect both harness connectors for corrosion or bent pins before plugging in, and clear stored fault codes with your service tool once the new ECM is installed.
Fitment & OEM Interchange
OEM part numbers are listed for cross-reference only. They do not imply that this part was made by the equipment manufacturer. All brand names are used solely to identify compatibility.
| Part No. | Without Dash | Relationship | Engine Platform |
|---|---|---|---|
| 240-5313 | 2405313 | This listing | For Caterpillar C9 / C-9 applications |
| 196-4172 | 1964172 | Interchangeable | For Caterpillar C9 / C-9 applications |
| 322-3608 | 3223608 | Interchangeable | For Caterpillar C9 / C-9 applications |
| 348-2383 | 3482383 | Interchangeable | For Caterpillar C9 / C-9 applications |
| 10R-4093 | 10R4093 | Also covered by this listing | For Caterpillar C9 / C-9 applications |
Application Chart — Compatible with Caterpillar Equipment
| Equipment Type | Models |
|---|---|
| Excavator | 330C, 330C L, 330C LN, 330C FM, 330C MH |
| Track-Type Tractor | D6R II |
| Track Feller Buncher | TK711, TK721, TK722, TK732 |
| Wheel Scraper | 627G, 637G |
| Agricultural Track Tractor | MT735, MT745, MT755, MT765, MTC735, MTC745, MTC755, MTC765 |
| Mobile Hydraulic Power Unit | 330C |
| Engine – Machine | C-9 |
| Industrial Engine | C-9 |
| Truck Engine | C9 |
Confirm Before You Order: Check that your current ECM label shows one of the part numbers in the table above, and check your engine data plate. If you are not sure, send us a photo of both and we will confirm compatibility before you buy.
Technical Specifications
| Part Name | Engine Control Module (ECM / ECU Controller) |
| Reference Numbers | 240-5313, 2405313, 10R-4093, 10R4093 |
| Interchange Numbers | 196-4172, 322-3608, 348-2383 |
| Condition | Remanufactured |
| Installation Method | Direct replacement |
| Programming | Programmed before dispatch to your ESN and VIN; no flashing required after arrival |
| System Voltage | Application dependent, confirm on data plate |
| Housing Material | Application dependent, confirm on data plate |
| Connectors | Same layout as the 240-5313 unit being replaced; compare with your current ECM |
| Circuit Protection | Application dependent, confirm on data plate |
| Testing | Bench-tested: powered up and function-tested before dispatch |
| Warranty | 6 months from delivery against defects in materials and workmanship (repair or replacement) |
| Package Contents | 1 × Engine Control Module (programmed to your engine) |
This module is intended to restore factory-specified performance only. It does not alter, disable or remove any emission control function.
Common Failure Symptoms
| Symptom | What It Usually Points To |
|---|---|
| 330C excavator or D6R II cranks but will not fire | ECM not firing the injectors, or an internal driver circuit failure |
| Many unrelated fault codes appear at the same time | Unstable ECM supply voltage or an ECM that is failing internally |
| Service tool cannot connect to or read the ECM | No power or ground reaching the ECM, a data link fault, or a failed module |
| Engine runs, then will not restart once it is hot | Heat-related failure of an internal ECM component |
| Machine stays in derate or low power with no sensor fault found | ECM logic or configuration fault |
| Engine speed hunts or throttle response is erratic | ECM mis-reading inputs, or a faulty throttle / speed sensor |
| Green or white corrosion on the ECM connector pins | Water intrusion that may have damaged the circuit board |
| Warning lamp stays on at key-on and no codes can be read | ECM failing to power up or boot correctly |
Check the Simple Causes First: Before replacing the ECM, test battery voltage, clean and tighten the ground straps, and inspect the harness and connectors for damage or moisture. These cheaper faults cause many of the same symptoms.
Shipping & Quality Guarantee
- Bench-Tested: Every unit is powered up and function-tested before dispatch.
- Fast Dispatch: Dispatched in 1–3 business days. For this programmed item, the window starts once we receive your ESN and VIN.
- Free Express Shipping: Delivered in 3–8 business days by DHL, FedEx or UPS.
- Tracking: Tracking number provided within 24–48 hours of dispatch.
- Protective Packaging: Anti-static bag and padded carton.
- 6-Month Warranty: From delivery, against defects in materials and workmanship.
- 30-Day Returns: Unused items in original packaging; an RMA number is required.
- Technical Support: Send photos of your ECM label and data plate and our team will help confirm fitment.
Shipping & Customs Notice
Our price covers the product and shipping only. Import duties, VAT, GST and any other local taxes or customs clearance fees are not included and are the buyer’s responsibility.
All trademarks and part numbers are used for compatibility reference only. LIUCHUANG Parts is an independent aftermarket parts supplier and has no official or authorized relationship with any equipment manufacturer.
