307-7542 Marine Power Display LCD Monitor Panel for Caterpillar 3512B 3516C C18 Genset
307-7542 marine power display panel, fits for Caterpillar 3500 series gensets and marine auxiliary engines.
- Interchangeability: 307-7542 / 307-7541 / 267-8623 / 259-2171
- Application: 3508B–3516C gensets, 3500 marine auxiliary, C18, C32 petroleum
$1,299.00
-
Bench-Tested - Every unit powered up and function-tested before dispatch.
-
6-Month Warranty - From delivery, against defects in materials and workmanship.
-
30-Day Returns - Unused items in original packaging. RMA required.
Product Details

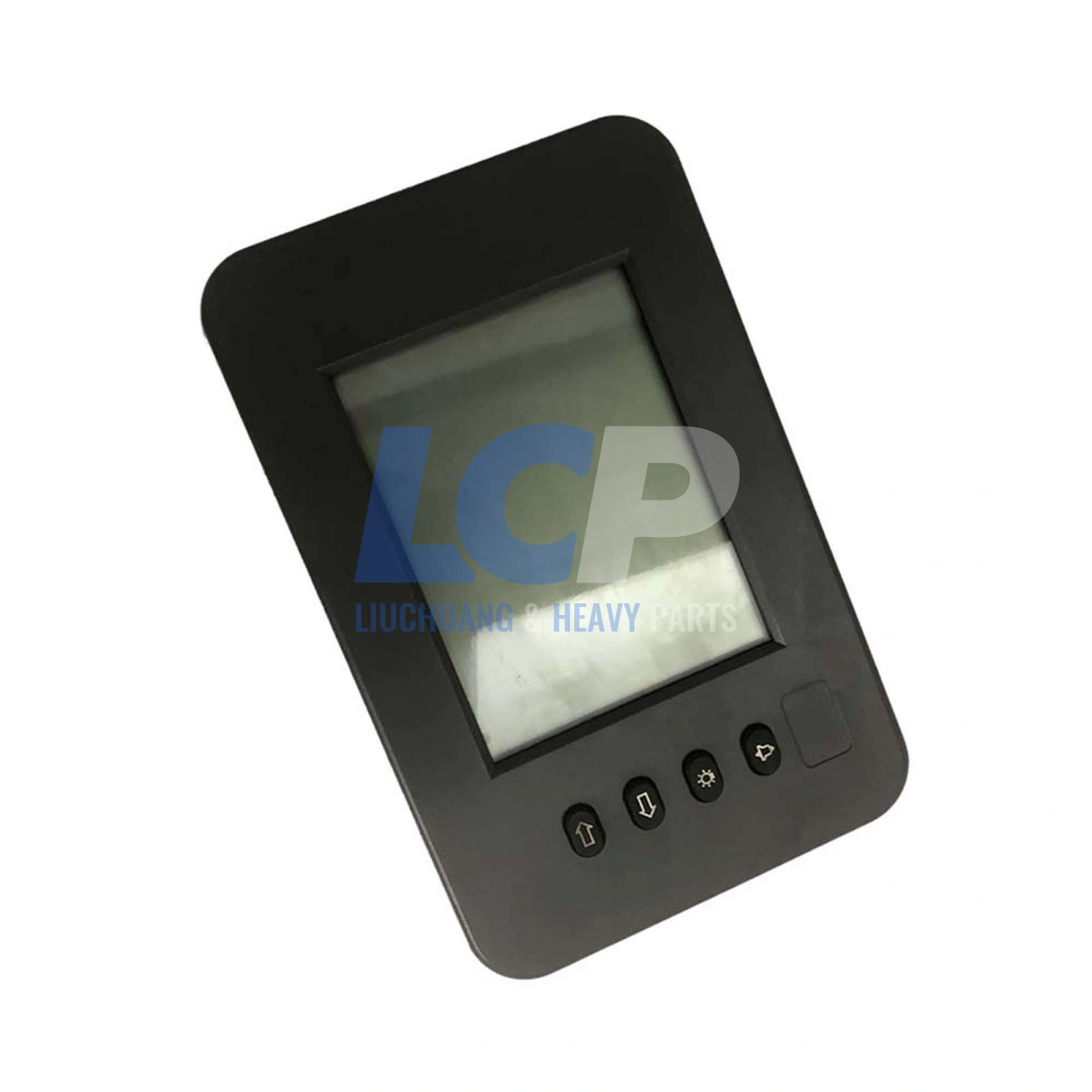

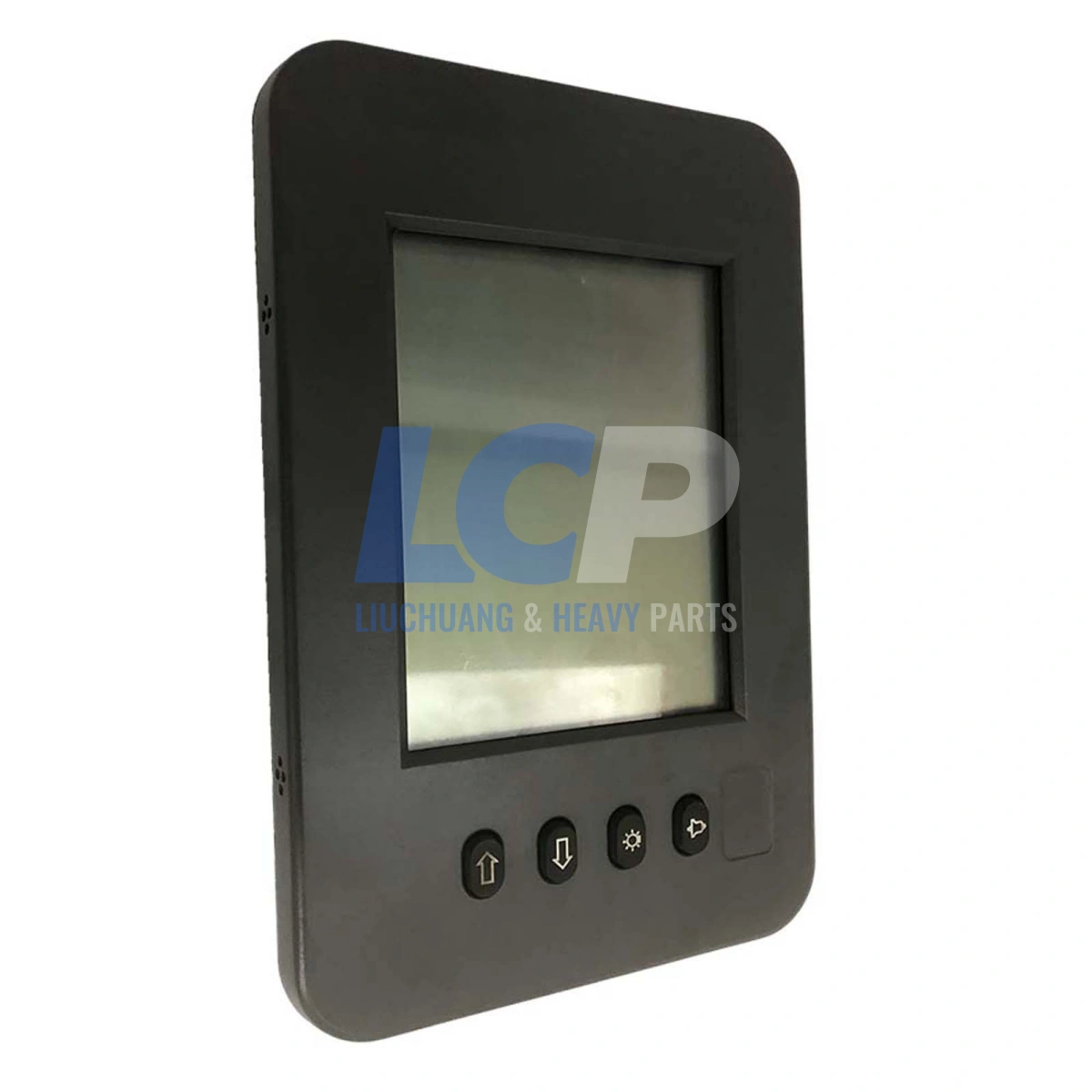

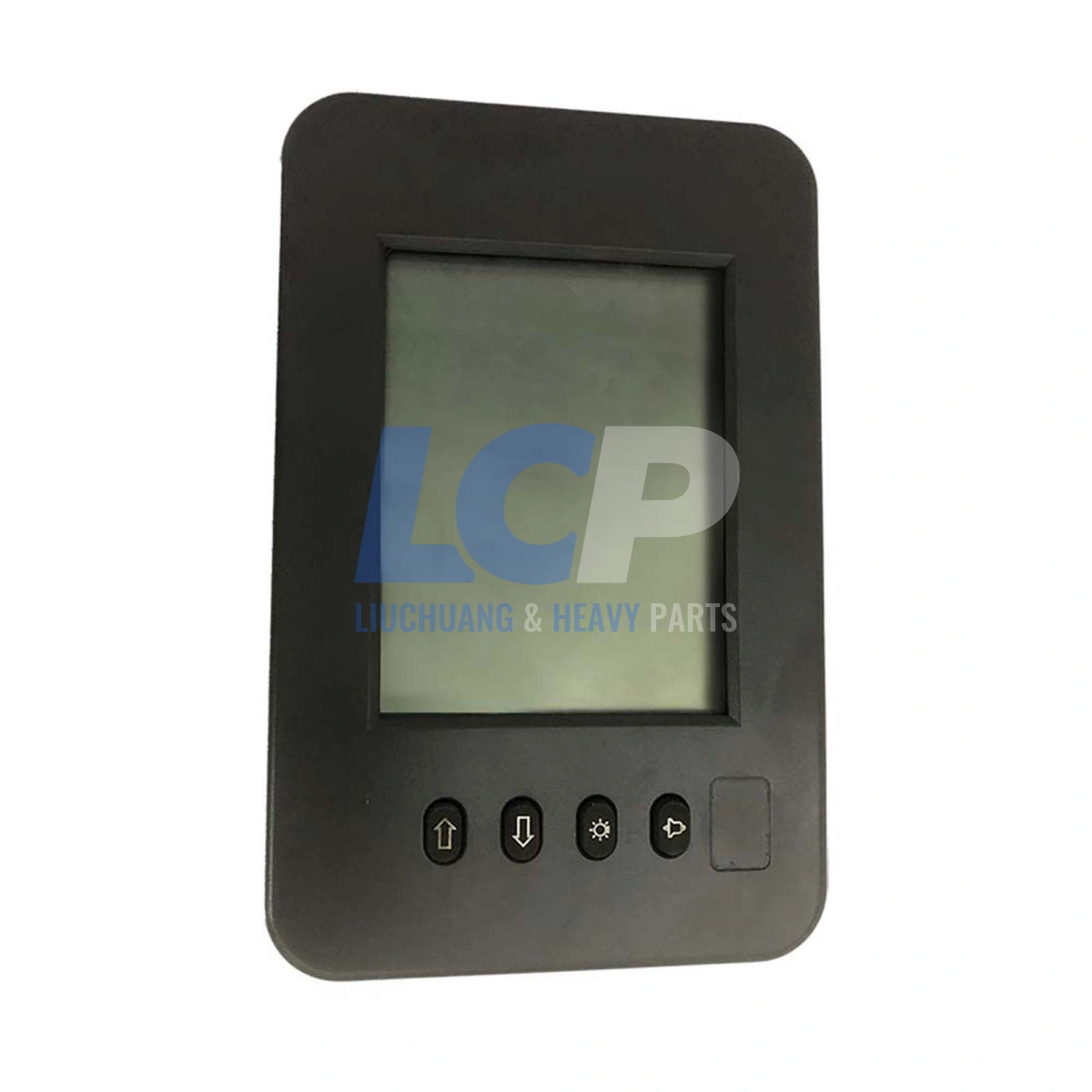

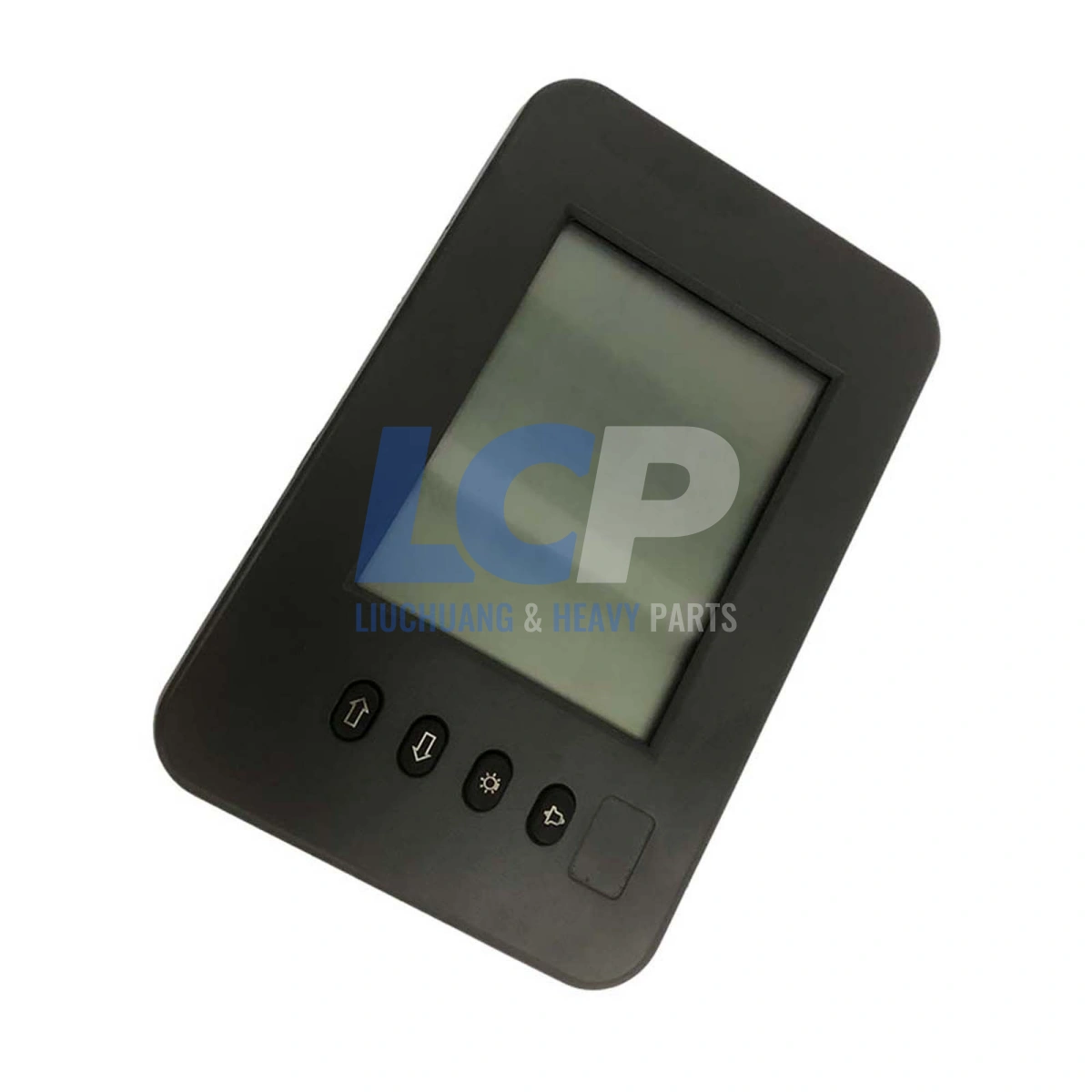

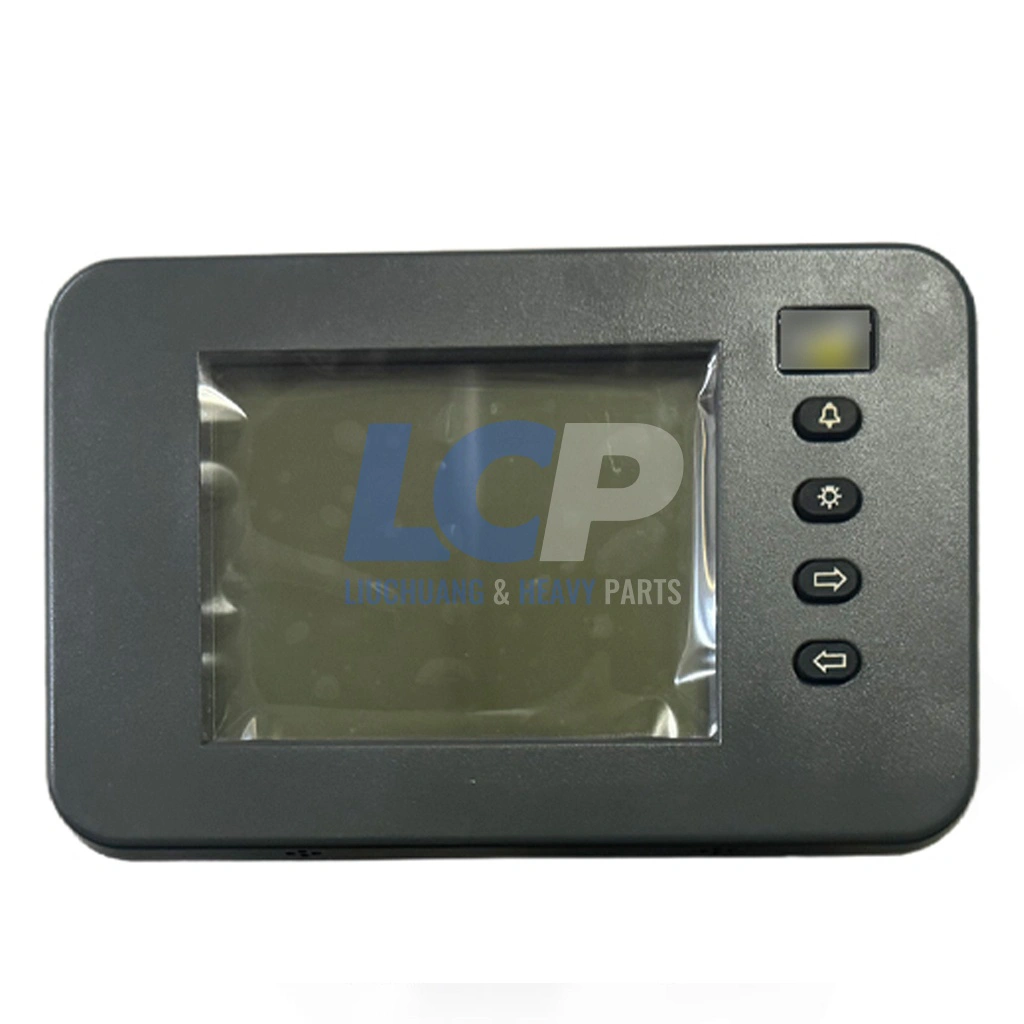

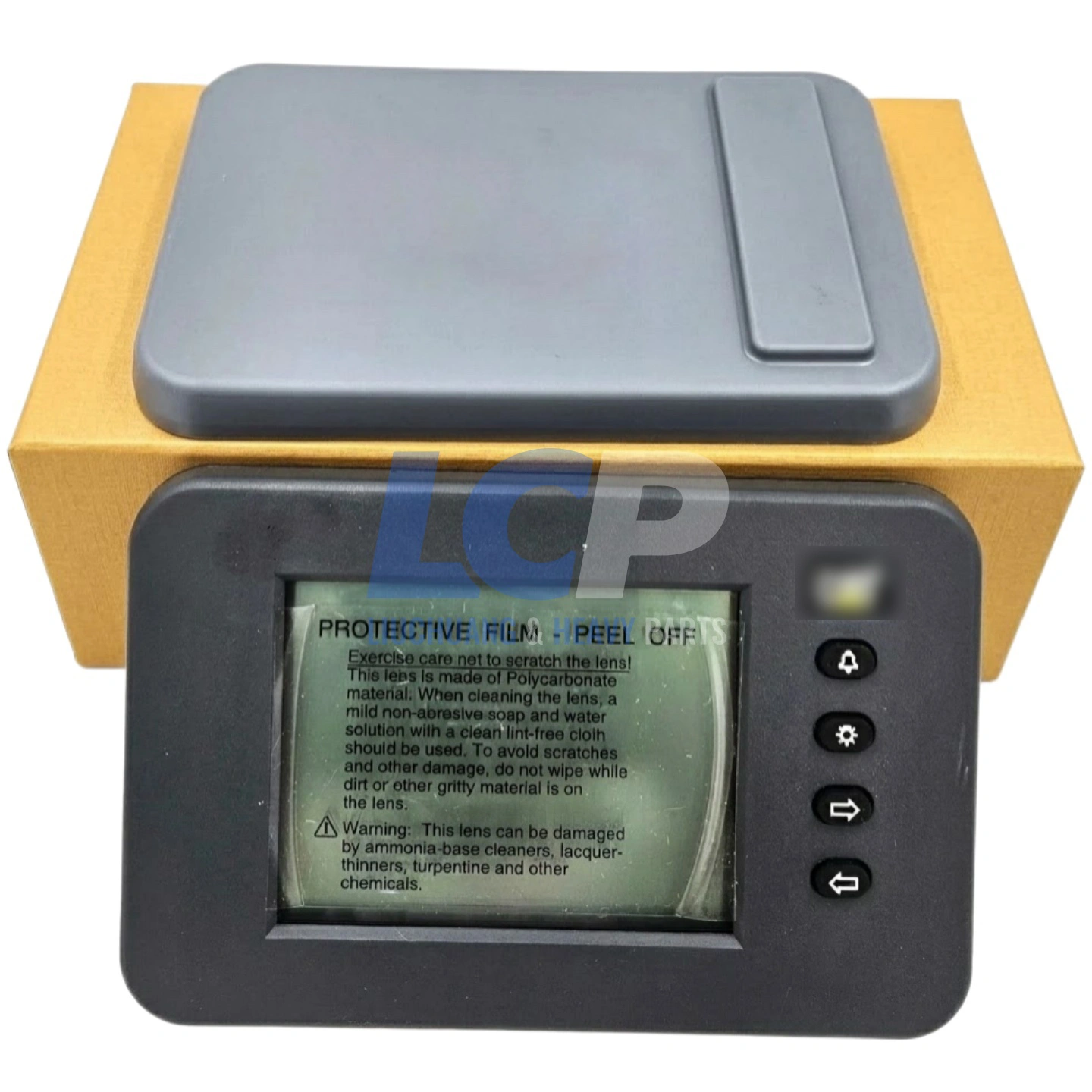

Part number 307-7542 is a marine power display and LCD monitoring panel, supplied as a new unit and fitted as a direct replacement on 3500 series generator sets, marine auxiliary engines and C18 gensets.
On a generator set or auxiliary engine the display is the only window the operator has into oil pressure, coolant temperature, load and fault status. When the screen dims, freezes or stops reporting, the engine keeps running blind — and on an auxiliary set that often means nobody notices a developing problem until it becomes a failure. This panel restores that visibility without any change to the engine control system itself.
- Direct replacement fitment — matches the original panel cut-out, mounting studs and harness connector, so no bezel modification or rewiring is needed.
- New condition — an unused unit supplied in neutral packaging rather than branded retail cartons.
- Generator set and auxiliary coverage — suited to 3508B, 3512B, 3512C, 3516B, 3516C and C18 genset installations as well as 3500 series marine auxiliaries.
- Four-number interchange group — cross-references 307-7542, 307-7541, 267-8623 and 259-2171 in hyphenated and plain forms.
- Marine-grade enclosure — sealed front face and gasketed rear housing intended for engine room humidity, salt air and vibration.
- 6-month warranty — repair or replacement service if any fault appears within the period.
Please Verify Your Panel Before Ordering
Display panels across these engine families look similar but are not always interchangeable. Checking first takes a minute and avoids a return.
If you are not certain, send us:
- Your Engine Serial Number (ESN)
- A clear photograph of the front of your existing display
- A clear photograph of the label on the rear of the panel
We will confirm the match for you before you buy.
Isolate the battery before disconnecting or fitting the panel. This display reports engine data and does not alter, bypass or remove any emissions control system.
Fitment & OEM Interchange
The following reference numbers are listed for cross-reference and identification purposes only. All trademarks belong to their respective owners.
| Primary Reference Number | 307-7542 / 3077542 |
| Interchange Numbers | 307-7541 / 3077541 | 267-8623 / 2678623 | 259-2171 / 2592171 |
| Condition | NEW, neutral packaging |
| Installation | Direct replacement |
Application Chart — Compatible with Caterpillar Engines
| Category | Models |
|---|---|
| Marine Engine | 3126B, 3176B, 3176C, 3196, 3406E, 3412, 3412E, 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C, C7, C9, C12, C-12, C15, C18, C30, C32 |
| Marine Auxiliary | 3508B, 3508C, 3512B, 3512C, 3516B, 3516C, C32 |
| Generator Set | 3508B, 3512B, 3512C, 3516B, 3516C, C18 |
| Petroleum Engine | 3512C, 3516C, C32 |
| Industrial Engine | C-15 |
Before ordering: the four numbers above sit in one interchange group, but individual vessels and sets can carry different panel variants depending on build date and specification. Compare the label on the rear of your existing display against these numbers, and send us a photo with your ESN if it does not appear here.
Technical Specifications
| Part Type | Marine power display / LCD monitoring panel |
| Reference Numbers | 307-7542, 307-7541, 267-8623, 259-2171 |
| Condition | NEW, supplied in neutral packaging |
| Installation Method | Direct replacement — no panel or harness modification |
| Function | Engine parameter readout, alarm annunciation and operator interface |
| System Voltage | 12V / 24V DC — application dependent, confirm against your installation |
| Mounting | Panel mount, original cut-out and stud pattern |

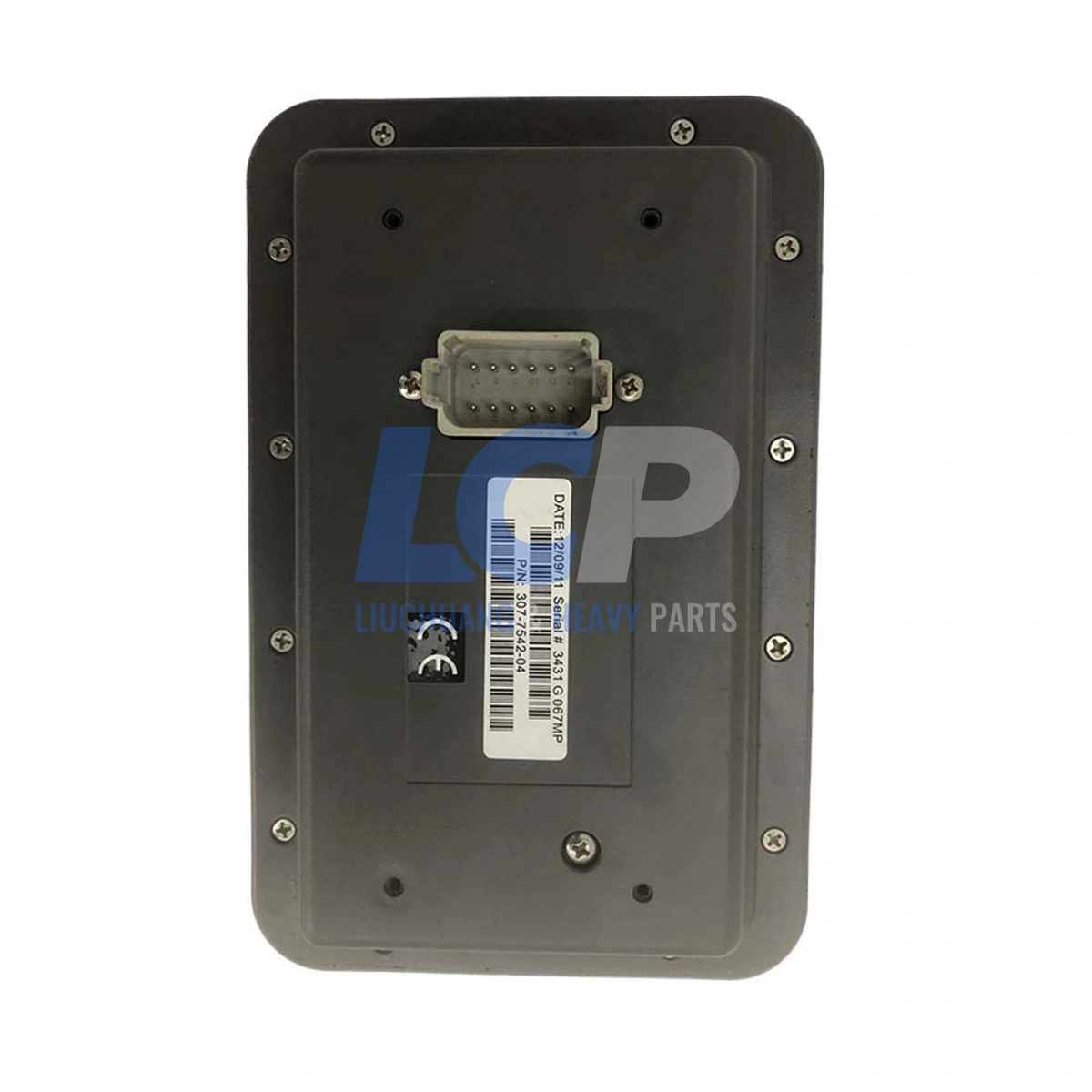

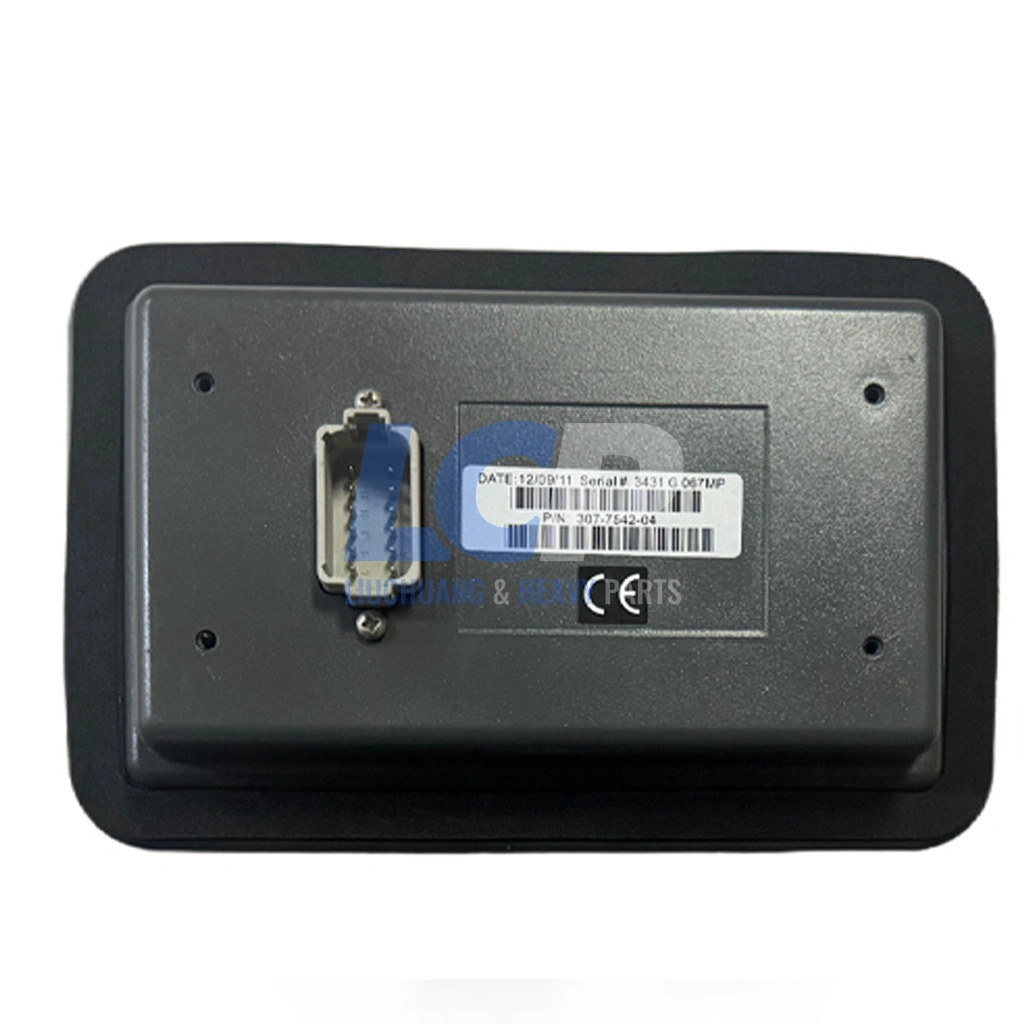

| Connector | Sealed rear harness connector, original pin layout |
| Environmental Design | Sealed front face and gasketed housing for marine humidity, salt air and vibration |
| Programming | Not required for the display itself; configuration follows your existing engine control system |
| Warranty | 6 months — repair or replacement service |
| Package Contents | 1 x display panel (mounting hardware and harness not included) |
Where a specification is application dependent, confirm it against your own installation before ordering. This panel is supplied to restore original operating parameters only.
Common Failure Symptoms
Display panels usually degrade in stages rather than failing outright. These are the patterns reported most often, and what each one typically points to.
| Symptom | What It Usually Points To |
|---|---|
| Screen dark but engine runs normally | Backlight or internal power supply failure. Check panel supply voltage and the harness connector before condemning the display. |
| Display freezes on one screen | Processor lock-up, often heat related on engine-room mounted panels. Note whether a power cycle clears it and for how long. |
| Readings shown but no alarm annunciation | Alarm output stage or internal relay fault — dangerous on an unattended set, since the engine is monitored but faults are never raised. |
| Intermittent blanking under vibration | Fatigued solder joints behind the connector, or a loose harness pin. Wiggle-test the connector with the set running. |
| Backlight visible but no image | Failed LCD driver or ribbon connection inside the panel; the supply is healthy but the display stage is not. |
| No data link to the engine module | Communication fault. Verify the data link wiring and confirm the engine control module itself is responding to a service tool. |
| Corrosion around the bezel seal | Failed front gasket allowing moisture ingress — usually terminal once it reaches the board. |
Check the supply side first. Panel fuse, supply voltage at the connector, ground integrity and corroded pins imitate display failure far more often than the display itself. A panel that is dark on one engine and works on another is almost always a wiring problem, not a dead unit.
Shipping & Quality Guarantee
- 100% quality control — every panel is powered up and screen-checked before it leaves our facility.
- Dispatch in 1–3 business days via DHL, UPS or FedEx express, with tracking provided as soon as the label is generated.

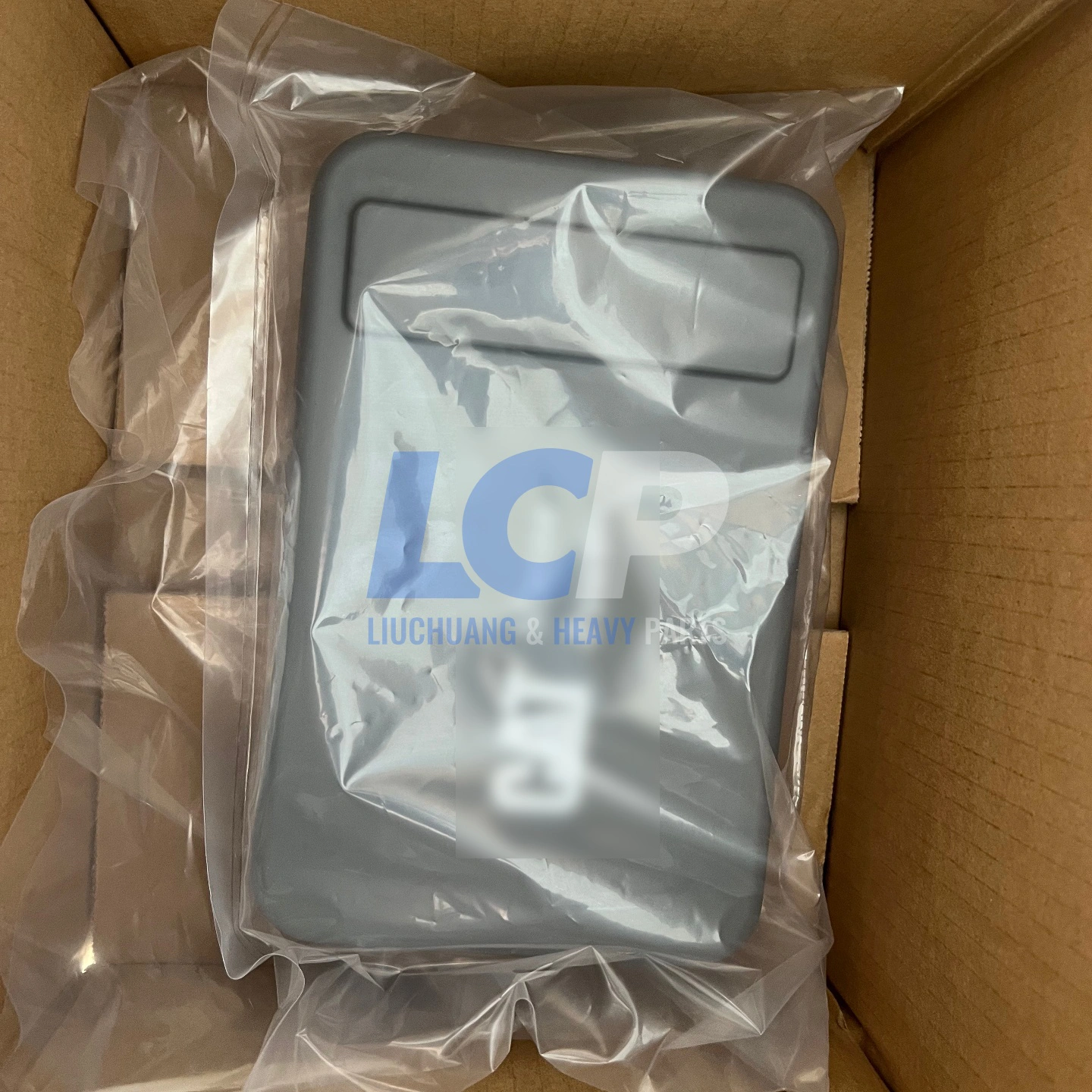

- Neutral packaging — anti-static wrap and foam-cushioned carton, with no third-party branding on the outer box.
